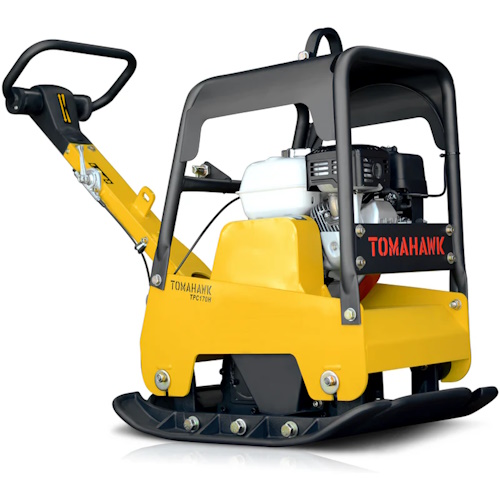

Tomahawk - 6.5 HP Honda Vibratory Reversible Plate Compactor Tamper with GX200 Engine - TPC170H

Equipped with a robust 6.5 HP Honda GX200 Engine and a solid 28" x 20" cast iron base plate, the Tomahawk - 6.5 HP Honda Vibratory Reversible Plate Compactor Tamper delivers 7,000 lbs./sq. ft. of compaction force at 5,400 vibrations per minute. Its design is tailored for precision compaction in tight spaces, making it the go-to choice for Public Works, construction sites, and equipment rental. The TPC170H's self-cleaning base plate ensures a build-up free operation, supporting up to 20-inch soil compaction for both cohesive and granular types. This reversible plate compactor is your reliable partner for laying walkways, patios, driveways, and more with ease and durability.

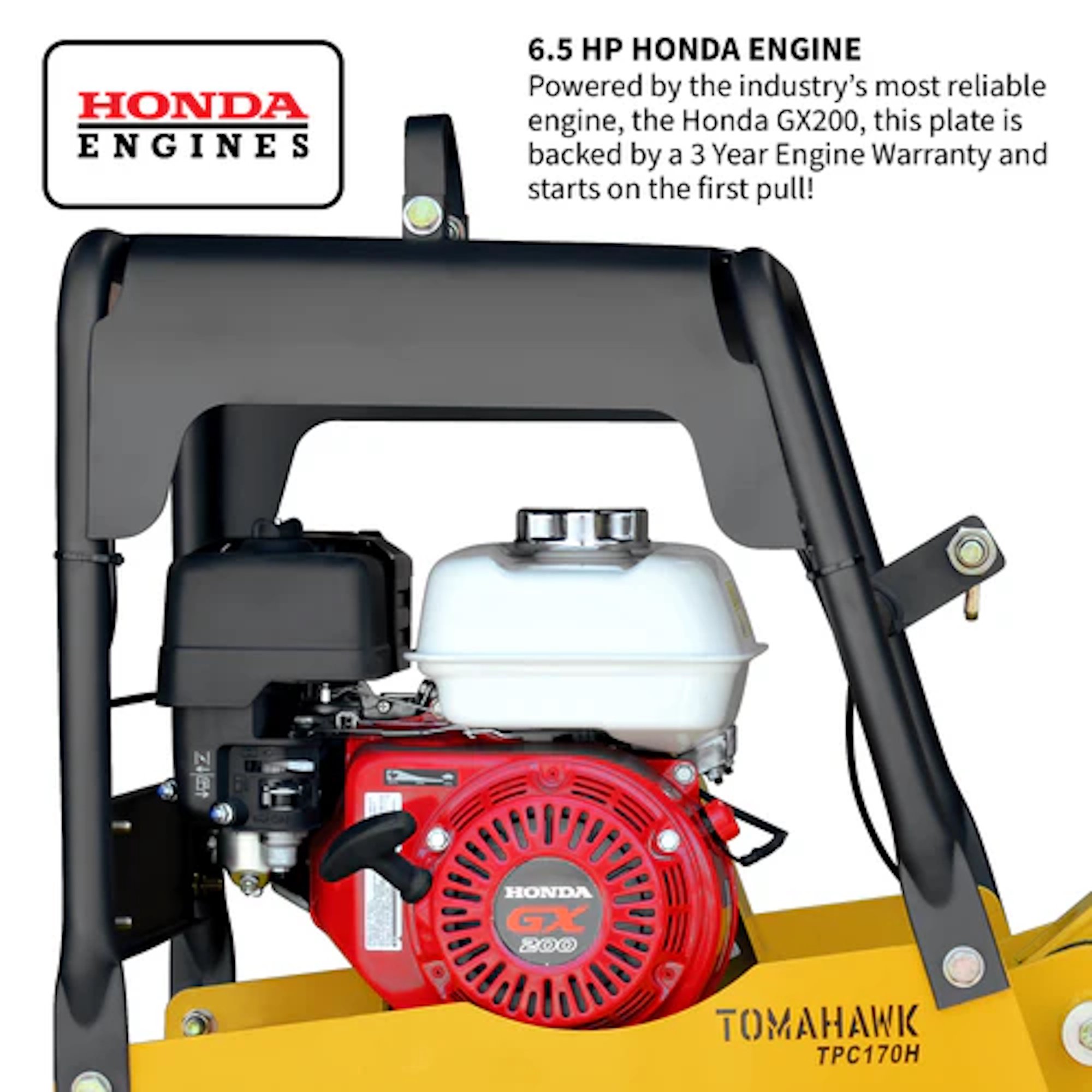

• 6.5 HP air-cooled 4-stroke OHV Honda GX200 Engine
• Achieve 100% compaction ratings on field density tests and nuclear densometers
• Compaction of cohesive and granular soils up to 20 in.
• Travel speed up to 66 ft/min

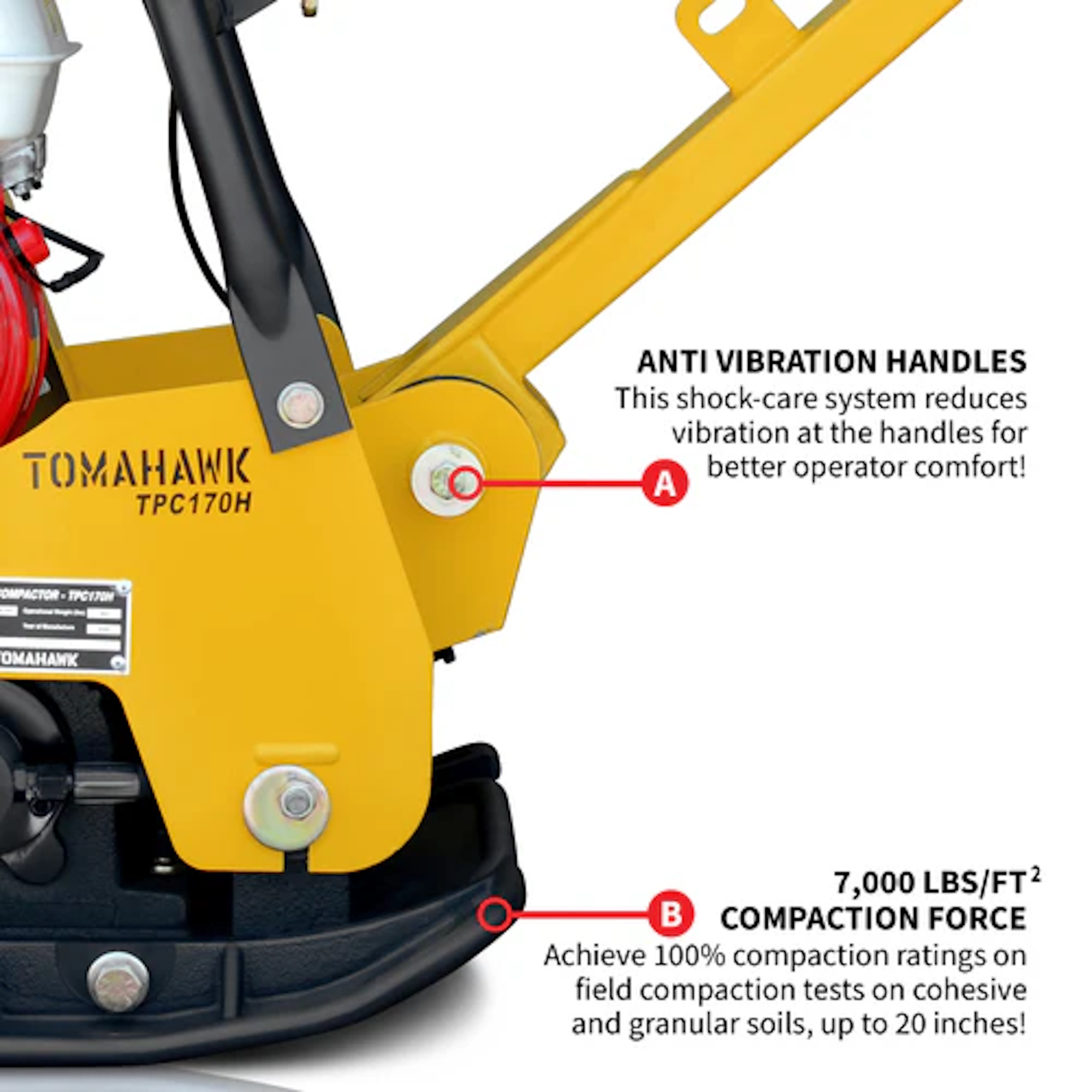

• Compress soils at an incredible force of 7,000 lbs/ft at 5,400 VPM

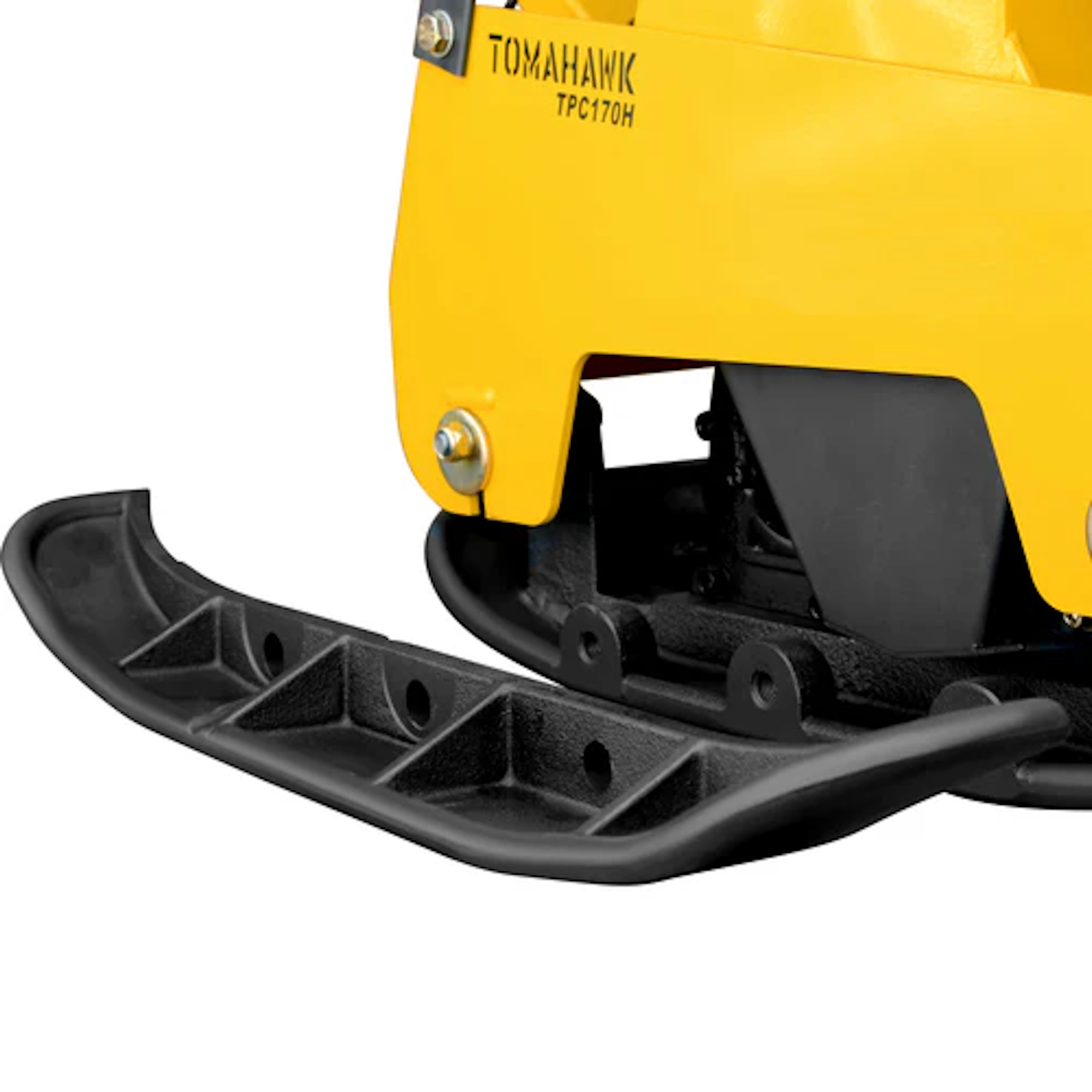

• Robust cast iron plate with curved, seamed edge base for markless compaction
• Self-cleaning open base plate to minimize rock and dirt build up
• CARB and EPA compliant

• Engine: Honda GX200
• Power: 6.5 HP
• Noise Level: 57DB @ 22ft (7m)
• Weight: 374 lbs.
• Plate Size: 28 in. × 20 in.
• Plate Size with Extension: 28 in. × 24 in.
• Centrifugal Force: 30 KN
• Vibration Frequency: 90
• Travel Speed: 66 ft./min

• TPC170H Plate Compactor
• Plate Extensions

• Retaining Walls
• Footings and Foundation Projects
• Landscapes and Hardscapes
• Patchwork on Asphalt
• Pipeline Applications
• Road Repair and Trenchwork
• Backfill Pools, Parks, Cemeteries, and Golf Courses
• Cohesive Soils and Granular Soils
• Sticky Soils - such as clay or silt
• Gravel, sand, or mixed soils
• Base, Subbase, Subgrade, Subsoil

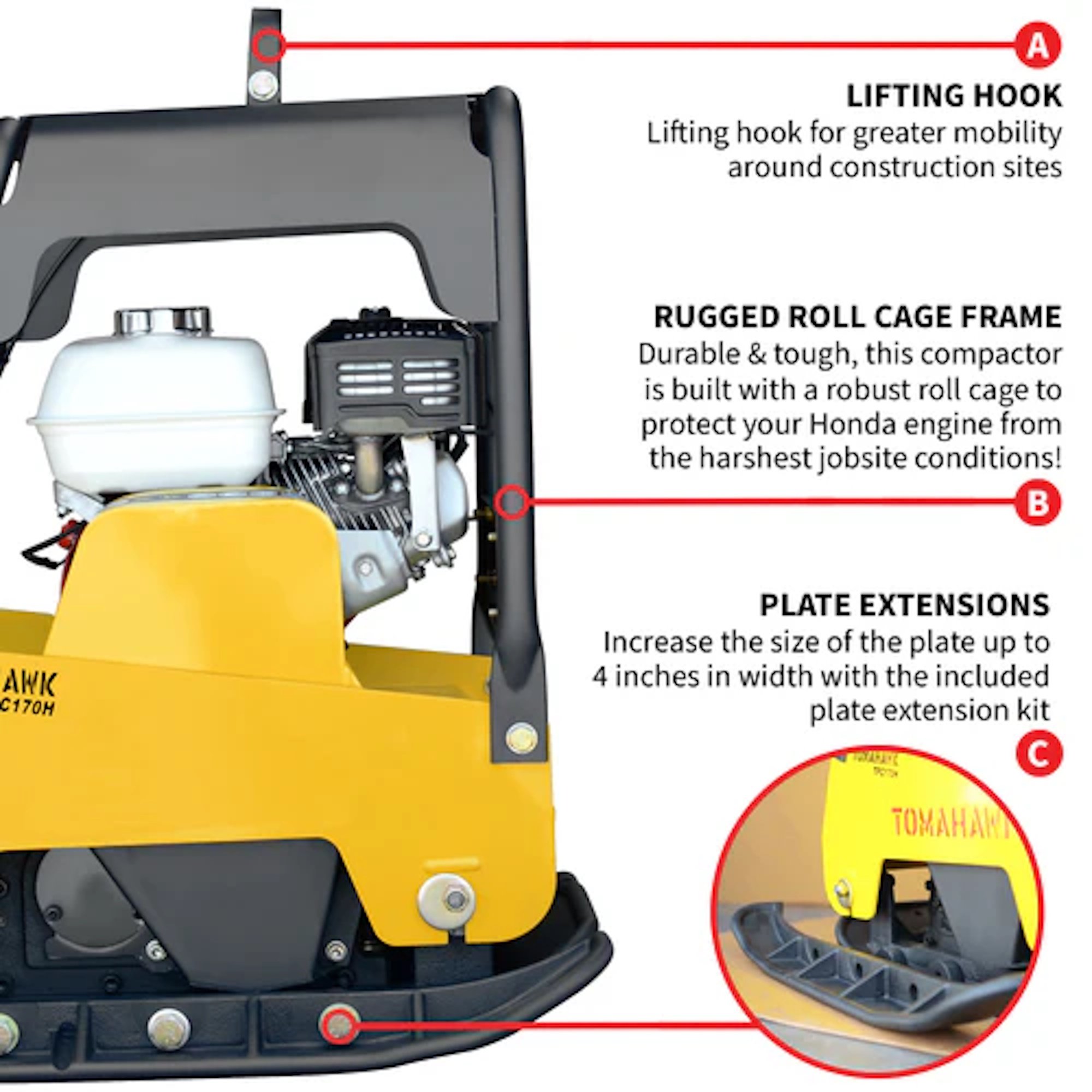

• This compactor includes an extension plate kit to increase the size of the plate.
• To install the extension plates, set at 136ft lbs. (185Nm)

  We recommend using Loctite if you intend to leave the extension plates on the reverse plate compactor.

Click Here for Operational Manual
Click Here for Specification Sheet
