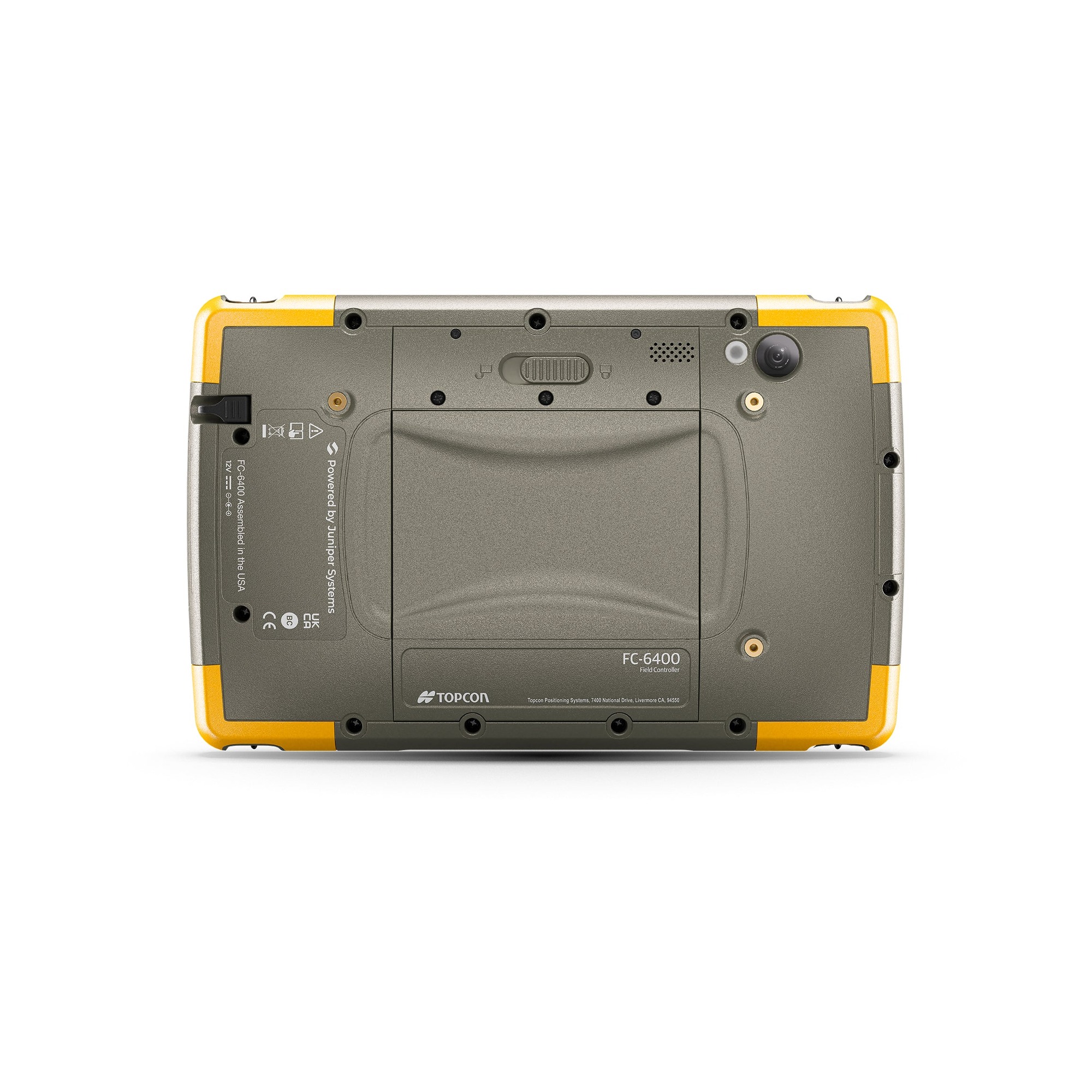

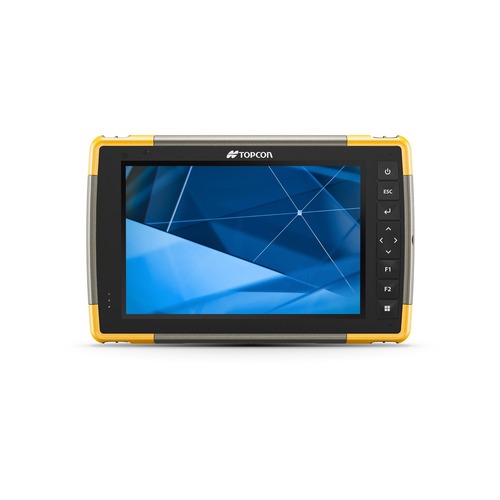

Topcon FC-6400 Rugged Tablet, Field Controller - 1067908-01

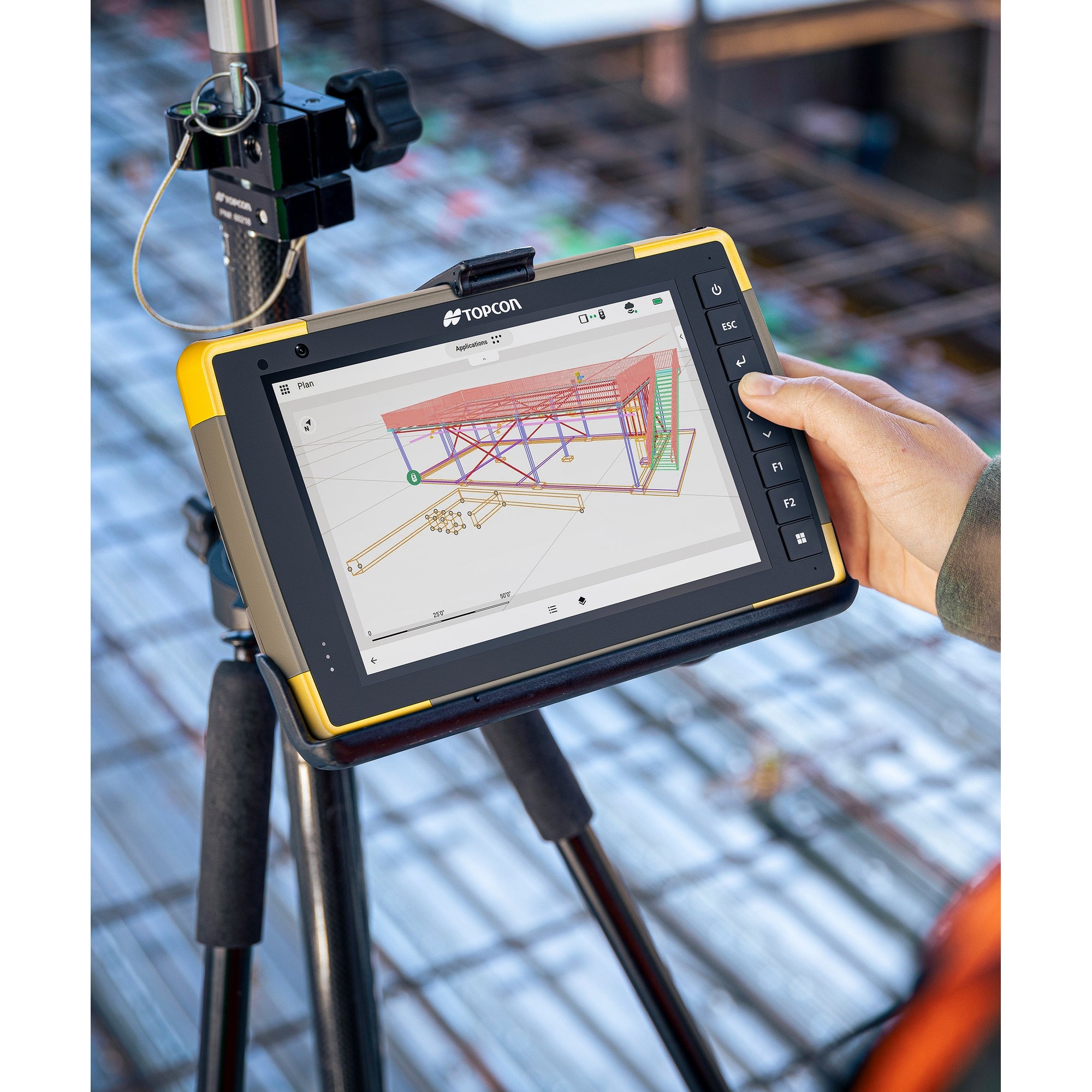

The FC-6400 streamlines precision survey and construction tasks with its high-performance workflows, lightweight mobility, and user-friendly design. Its advanced processing speed and graphics enable seamless data management and visualization, enhancing the efficiency of operating Topcon field software and beyond.

The Topcon FC-6400 is a rugged and powerful field controller designed to keep up with demanding survey, construction, and mapping workflows. Built on the Windows® 11 Pro platform, it combines a fast processor, large sunlight-readable touchscreen, and all-day battery life in a durable package that’s ready for any environment. With advanced connectivity and seamless integration with Topcon software, the FC-6400 ensures efficient data collection and real-time decision-making in the field.

• Windows® 11 operating system
• 7 inch display
• Clear display viewable even in bright sunlight
• Rugged IP68 and MIL-STD-810H ratings
• Available with extended range LongLink™️ Bluetooth®
• Long-lasting, hot-swappable battery with internal backup

• HARDWARE
  • CPU: Intel® N200 3.7GHz
  • Internal Storage: 128GB SSD or 256GB SSD
  • Micro SD Card Storage: Yes
  • OS: Windows® 11 Pro
  • Memory: 16GB LPDDR5 RAM
  • Display: 7” LCD touch screen
    • Wide XGA at 1280 x 800
    • Brightness: 800 nit
  • Camera: Rear: 13 megapixel with auto-focus and flash  Front: 5 megapixel
  • Internal GNSS: Quectel LC79H
  • Ports: USB-A, USB-C
  • Charger: AC adapter or USB-C
  • Dimensions (L × W × H): 21.5 × 13.7 × 3.5 cm / 8.46 × 5.39 × 1.38 in.
  • Weight: 680 g (1.5 lbs) without swappable battery
• WIRELESS CONNECTIVITY
  • Bluetooth®: Bluetooth® Class 1.5 or Extended Range Topcon LongLink™ Bluetooth®
  • Wi-Fi: 802.11 a/b/g/n/ac/ax, FIPS 140-2
  • Cellular: Global GSM 4G LTE
• ENVIRONMENTAL
  • Ingress protection: Dust and water IP68 certification
  • Operating Temp: -20°C to 50°C / -4°F to 122°F
  • Vibration: MIL-STD-810H
  • Drop test: 1.2 m (4 ft.) drops to concrete
  • Operating Time: Up to 15 hours
