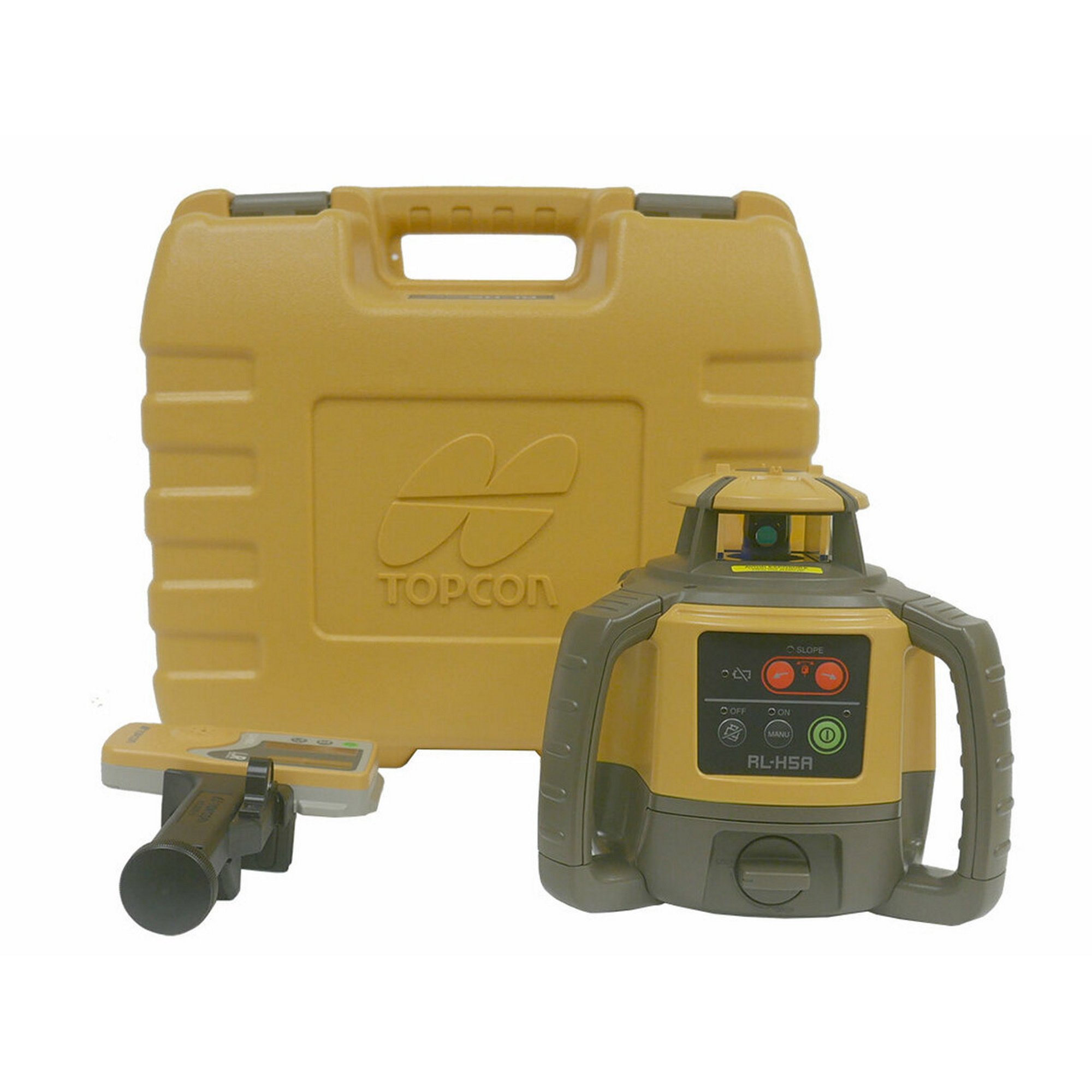

Topcon RL-H5A Horizontal Self-Leveling Rotary Laser w/ Rechargeable Battery and LS-80X Receiver - 1021200-49

Model Number: 1021200-49

Features:

The Topcon RL-H5A Horizontal Self-Leveling Rotary Laser - 1021200-49 is an all round high quality TOPCON construction laser with a user friendly design. It features + 10 Arc second (1.5mm@30m) horizontal accuracy and can be used for long range operations up to 800m!
User Friendly Design
- Big handle, easy to grab even with glove on.
- Clear operational button
High Accuracy for large area
- + 10 Arc second (1.5mm@30m) high horizontal accuracy.
- Long range operation 800m.
- All round construction laser for pile foundation for buildings, leveling work for large construction site or farmland.
Reliable leveling work at construction site
- Reliable even at the vibrated environment
  - Electronic self-leveling mechanism inside makes stable laser beam even at vibrated environment where pendulum cannot perform well.
  - Safety lock (high alert) function lets the operator know in the case that the unit get slanted and its height changes.
- Water gradient
  - RL-H5A can do leveling as well as sloping in single axis. Just using two buttons of the unit to set the laser on the level sensor.
- Tough IP66 Construction Rating
  - RL-H5A is “Construction Site Tough” and can withstand dust, a sudden shower and even torrential rainfall.
High Quality Topcon Laser
- Underwent tough environmental tests (vibration test, drop test, high/low temperature test, repeatability accuracy test, laser endurance test, and rotating head endurance test), simulated as tough construction site
Level Sensor
- Standard level sensor.
- Arrow display with buzzer shows the difference.
- Displays Topcon laser status alerts (HI and low battery).

Specifications:

Quantity: 1
RL-H5A:
- Operating range: Diameter Approx. 2 to 800 m (When using LS-80L)
- Accuracy: ±10"
- Self-leveling range: ±5°
- Manual slope settable range: ±5° (When the instrument is installed on the 0° surface)
- Laser source: Laser diode (Visible, 635 nm) CDRH (FDA) Class IIIa, IEC Class 3R
- Rotational speeds: 600 r.p.m
- Status alerts: HI and low battery
- Dust and water resistance: IP66 (IEC60529: 2001)
- Operating temperature: -20 to 50°C (-4 to 122°F)
- Size: 104(W) x 127(D) x 37(H) mm

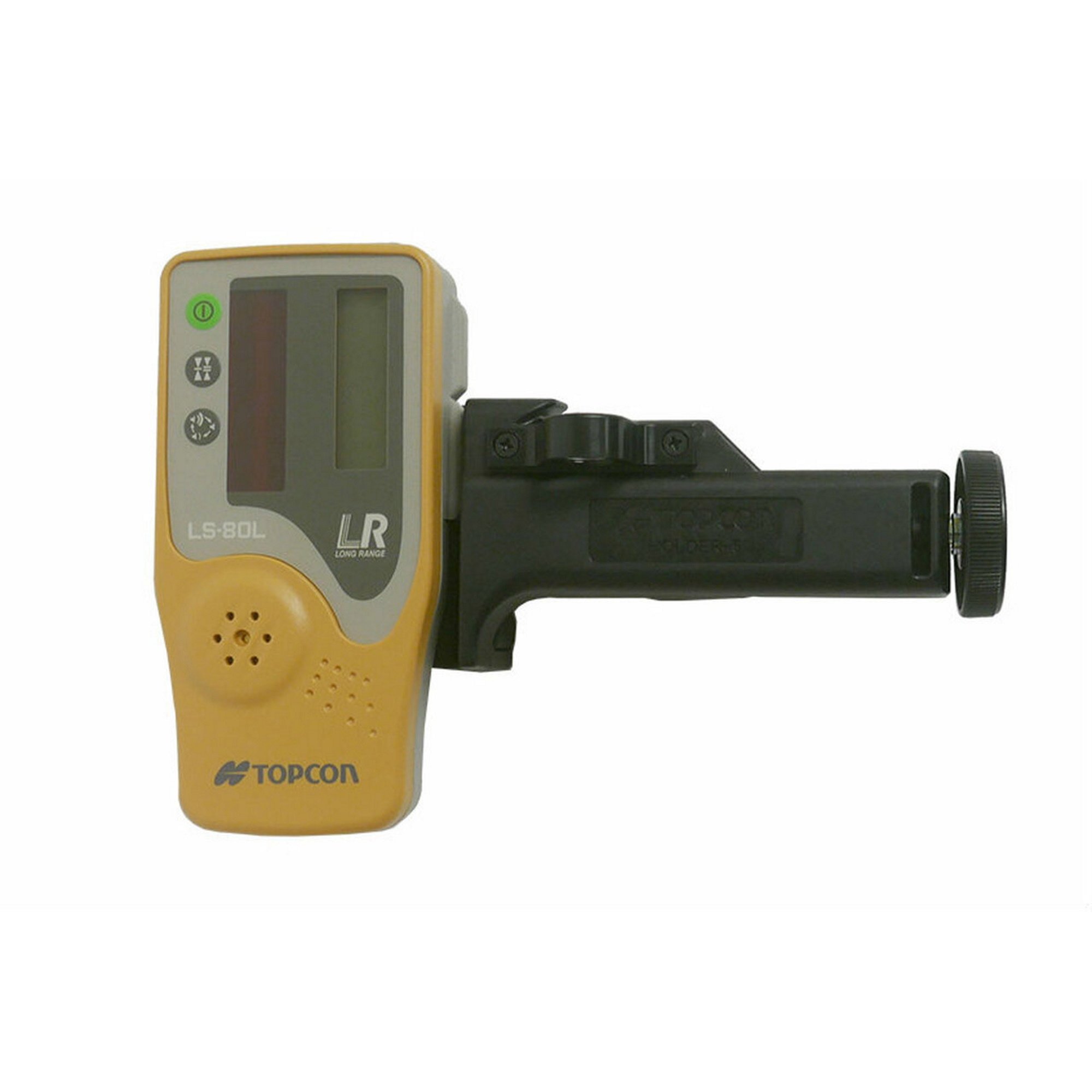

LS-80L
- On-Grade Precision:
  - High: ±1mm (±0.04in.)
  - Normal: ±2mm (±0.08in.)
- Grade Information Channel 9: Channels (plus high/low out of range)
- Beam Detection Width: 50mm (2.0in.)
- Display: LCD on each side
- Buzzer: Loud/Low/OFF
- Icons for RL-H4C Warnings: HI Alert, Low Battery
- Battery Level Indicator: LCD Icon
- Auto Shut-off Approx. 30 minutes
- Dust and Water Protection: IP66 (IEC 60529)
- Operating Temperature: -20°C to +50°C (-4°F to +122°F)
- Dimension: 146(L) x 76(W) x 26(H)mm (5.7(L) x 3.0(W) x 1.0(H)in.)
- Weight: 190g (6.7oz.) including two AA/LR6 batteries
- Battery: Two AA/LR6 dry-cell batteries
- Operating Time at 20°C (68°F): Approx. 120 hrs w/alkaline

MPN: 1021200-49
