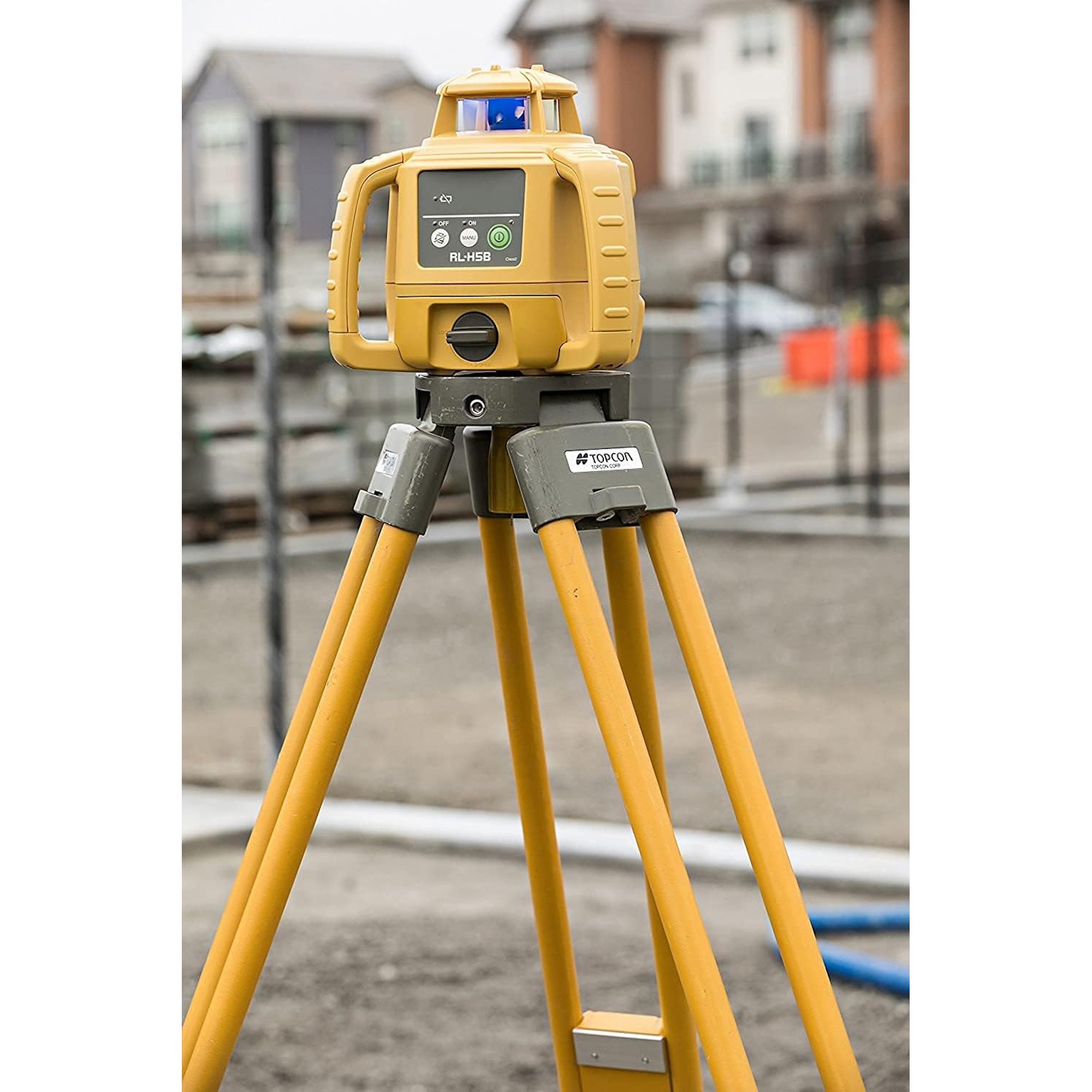

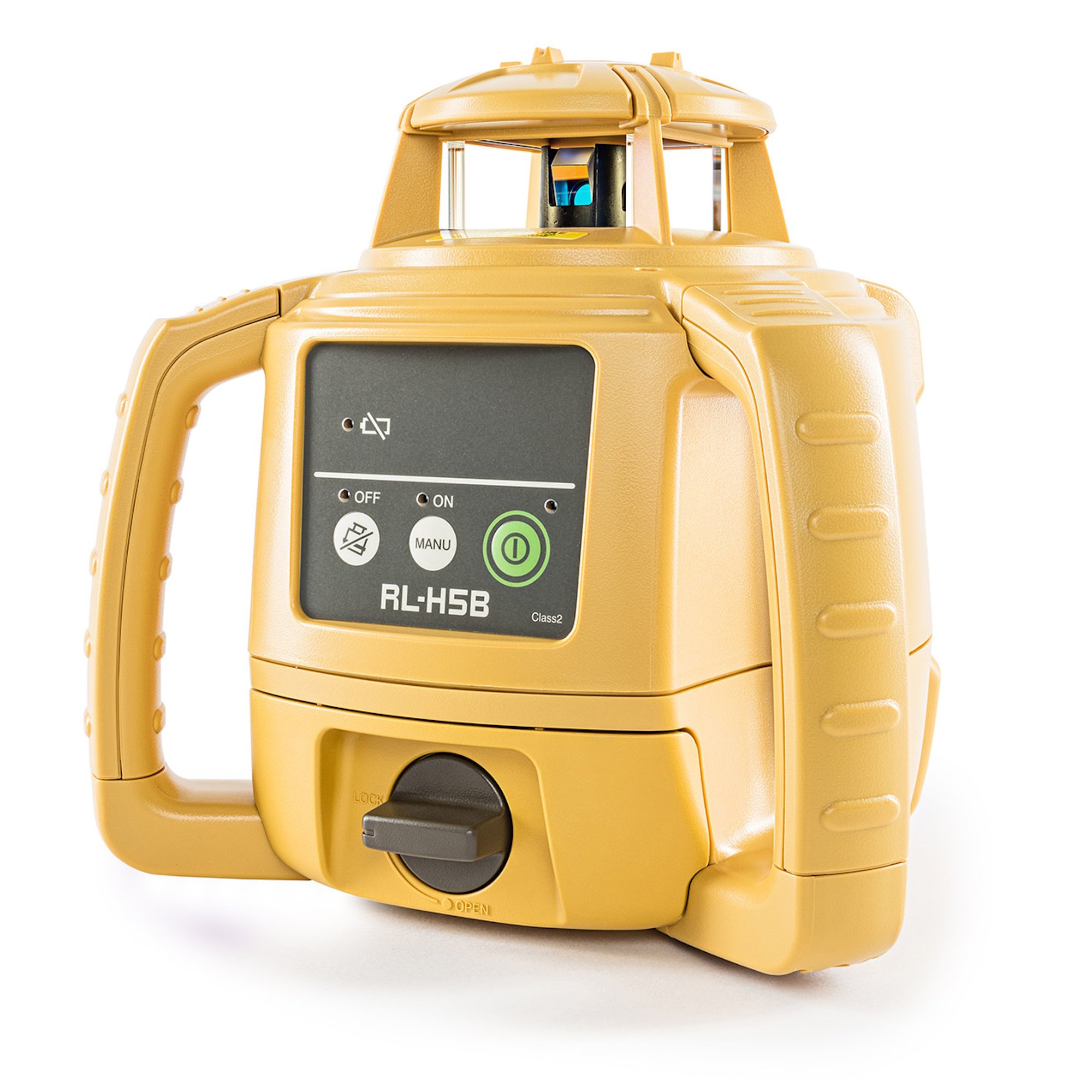

Topcon - RL-H5B DB Horizontal Laser Level (Alkaline) w/ LS-80X Receiver - 1021200-73

The Topcon RL-H5B DB Horizontal Laser Level is engineered for precision and efficiency, this self-leveling laser level is your go-to solution for accuracy over long distances. With a formidable 1,300 ft diameter range and high horizontal accuracy of 1/8-inch at 100 feet, the RL-H5B ensures your work is always on point.

• Long-range operation: up to 400 m
• Smart long-range receiver
• Rotation Speed: 600 rpm
• ±20 Arc second horizontal accuracy
• ±5 Degrees self-leveling range
• Operating Temperature: -20ºC to 50ºC
• Up to 100 hours battery life
• IP66 rating: can withstand dust, a sudden shower and even torrential rainfall.
• 5 Year Manufacturer's Warranty

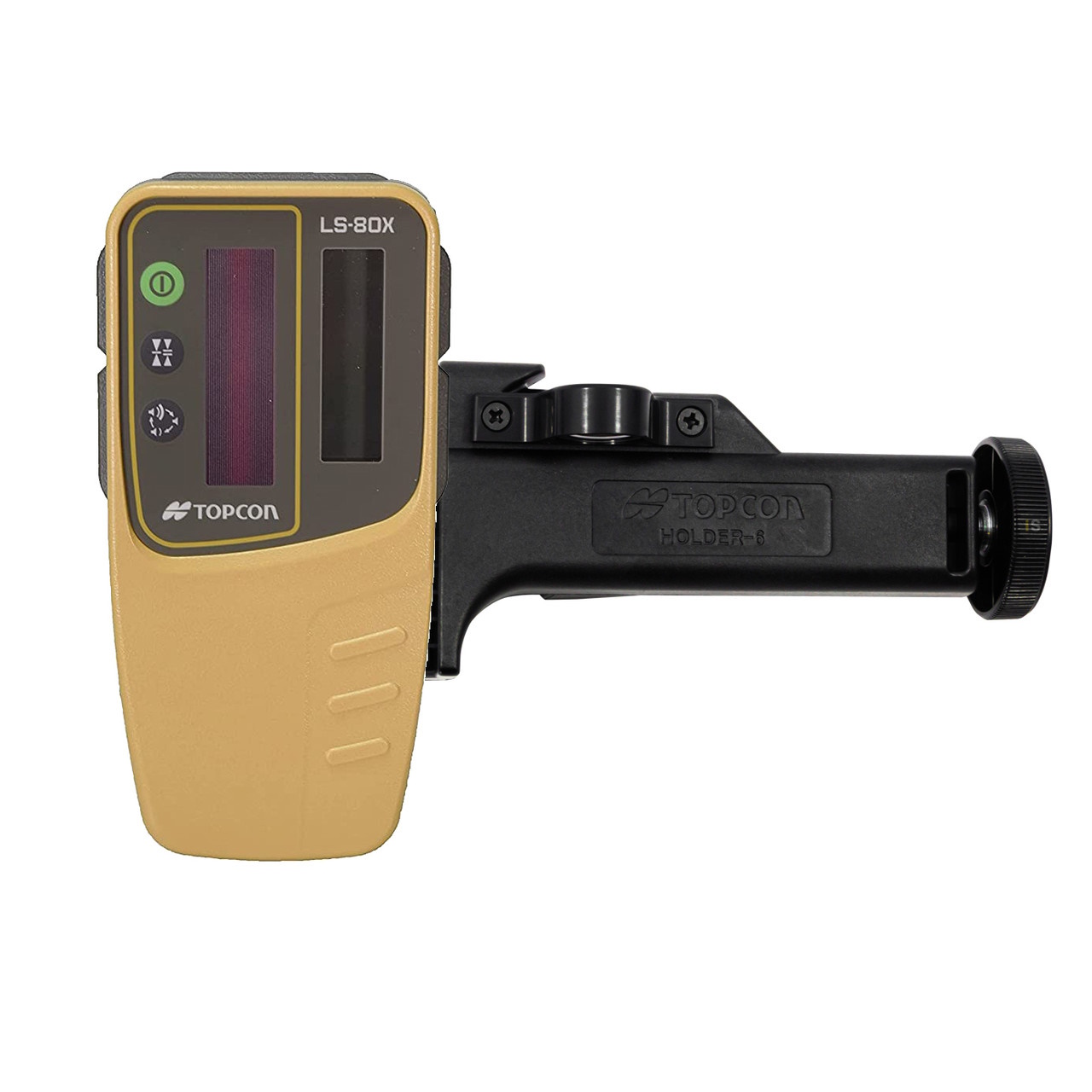

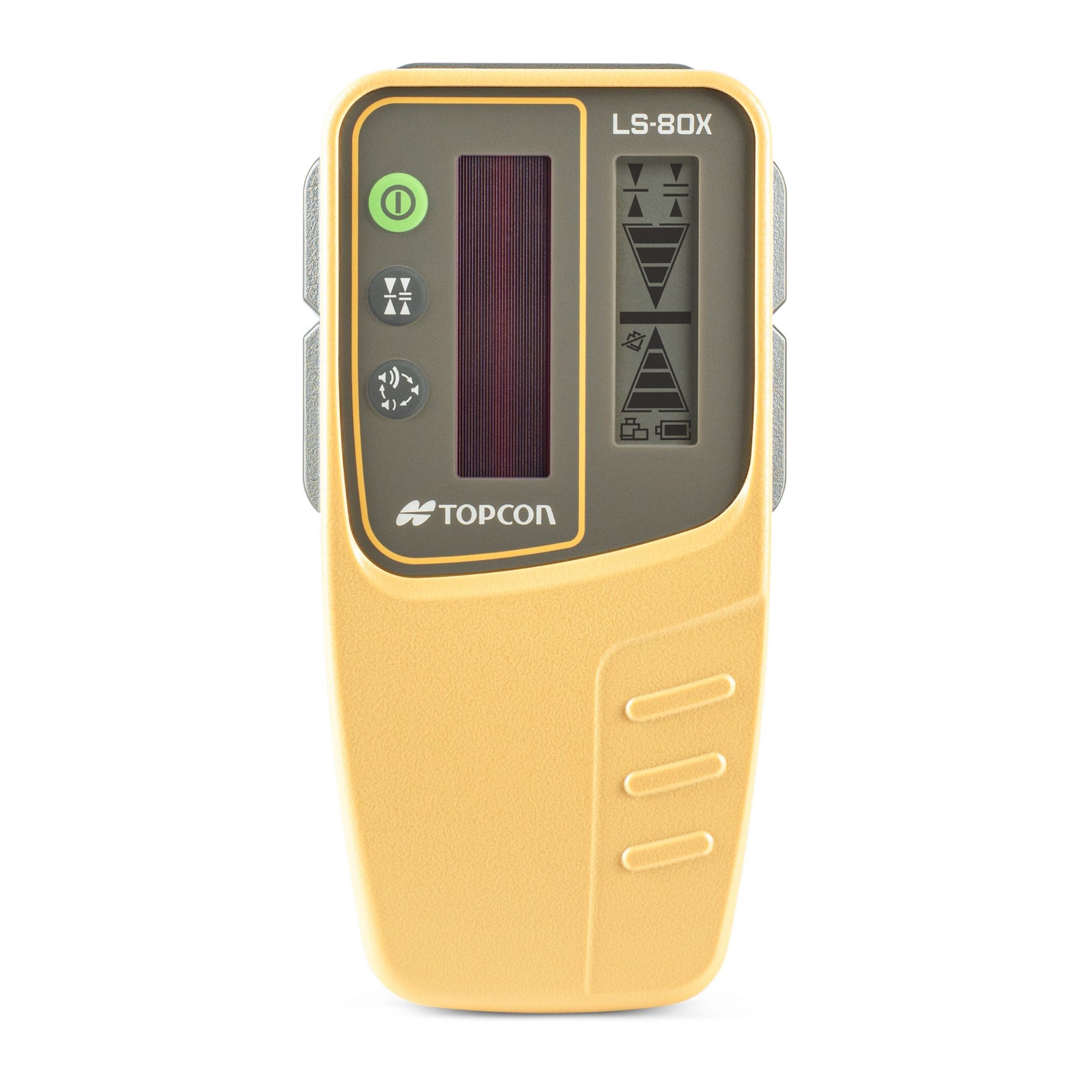

The Topcon LS-80X Long Range Laser Receiver Sensor is designed to enhance the functionality of red beam rotary lasers, this sensor extends your working range while ensuring pinpoint accuracy.

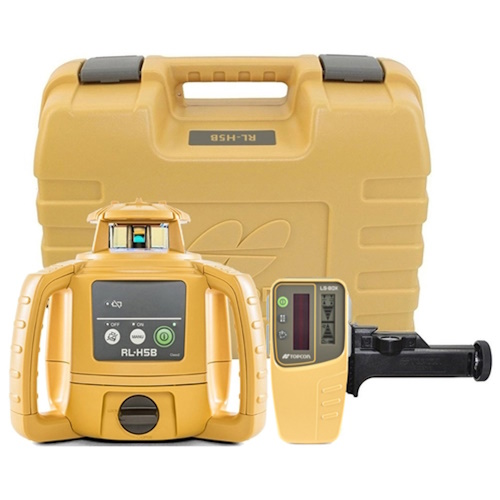

• Topcon RL-H5B RB Laser Level
• Topcon LS-80X Laser Detector
• Receiver Rod Clamp Holder 6

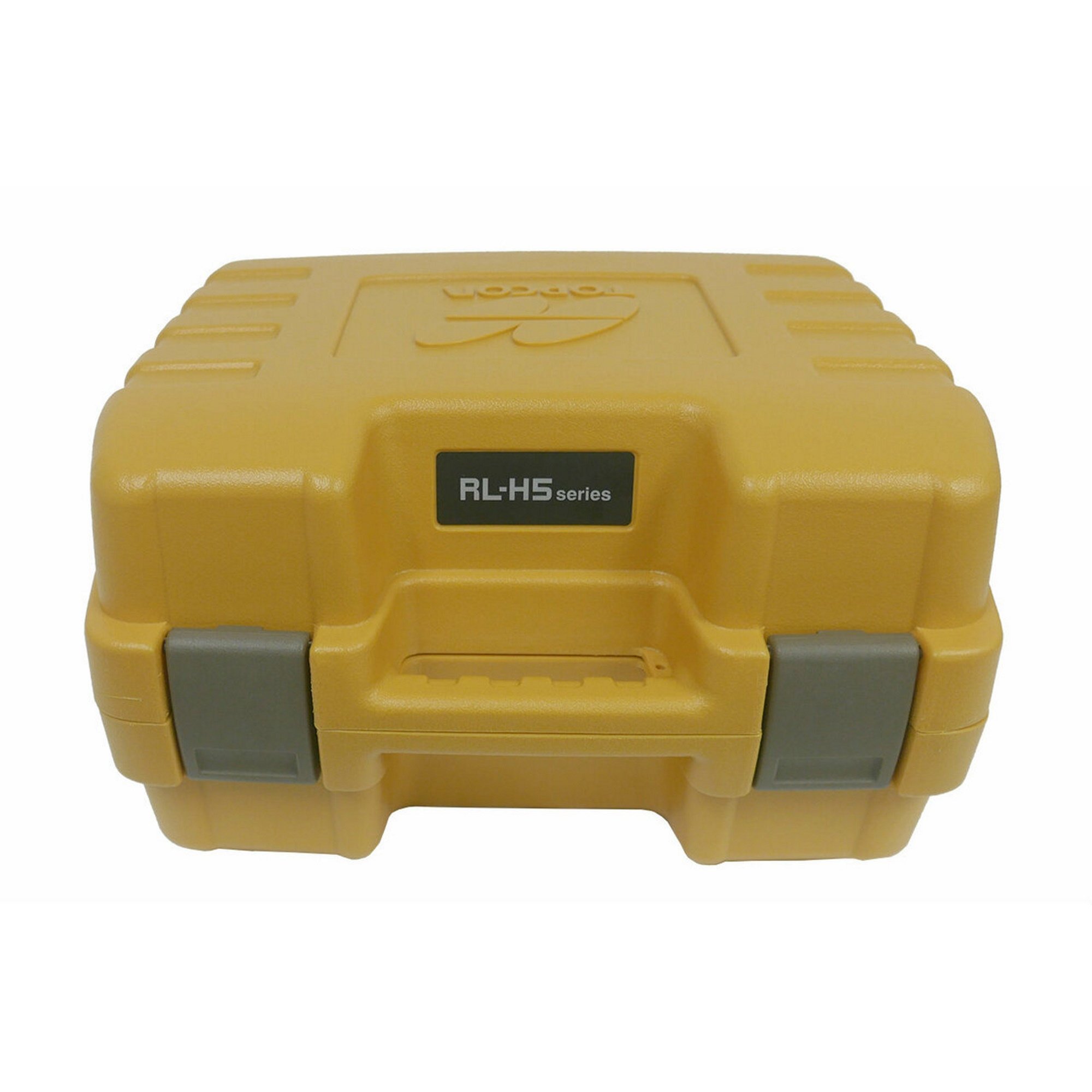

• Carry case

• Self-leveling range: ±5 degrees
• Accuracy: ±1/8 inch at 100 feet (±1.5 mm at 30 meters)
• Working range (diameter): Up to 2,600 feet (800 meters) with detector
• Rotation speed: 600 RPM
• Battery life: Approximately 100 hours (alkaline batteries)
• Operating temperature range: -4°F to 122°F (-20°C to 50°C)
• Water and dust protection: IP66 rating
• Dimensions: 7.7" x 8.3" x 6.9" (195 x 210 x 175 mm)
• Weight: 5.5 lbs (2.5 kg)
• Laser diode: 635nm (visible)
• Laser class: 3R

• Working Diameter 3 to 3,100 feet
• Defective Precision High Precision +/- 1.0mm
• Normal Precision +/- 2.0mm
• Detective Range 50mm
• Dual LCD (Both Sides)
• Arrow Display: 9
• Numeric Readout: N/A
• Speaker Levels: Loud/Low/Off
• Warning Display: Height Alert andBattery Level
• Auto Shutoff: 30min
• IP Rating: IP66
• Operating Temperature: -20 to +50C
• Dimensions: 146 (L) x 76 (W) x 25 (H) mm
• Power Supply: 2x AA Dry CELL or Alkaline
• Battery Life: 120h (Alkaline)
