Topcon RL-H5A Self-Leveling Laser PS.RB Kit w/ LS-80X Receiver, Rechargeable Batteries, 13ft Grade Rod, and Tripod - (2 Options Available)

• 1035260-01: w/ 10ths Grade Rod
• 1035261-01: w/ Inches Grade Rod

• The Topcon RL-H5A Horizontal Self-Leveling Rotary Laser - 1021200-49 is an all round high quality TOPCON construction laser with a user friendly design. It features + 10 Arc second (1.5mm@30m) horizontal accuracy and can be used for long range operations up to 800m!
• User Friendly Design
  • Big handle, easy to grab even with glove on.
  • Clear operational button
• High Accuracy for large area
  • + 10 Arc second (1.5mm@30m) high horizontal accuracy.
  • Long range operation 800m.
  • All round construction laser for pile foundation for buildings, leveling work for large construction site or farmland.
• Reliable leveling work at construction site
  • Reliable even at the vibrated environment
    • Electronic self-leveling mechanism inside makes stable laser beam even at vibrated environment where pendulum cannot perform well.
    • Safety lock (high alert) function lets the operator know in the case that the unit get slanted and its height changes.
  • Water gradient
    • RL-H5A can do leveling as well as sloping in single axis. Just using two buttons of the unit to set the laser on the level sensor.
  • Tough IP66 Construction Rating
    • RL-H5A is “Construction Site Tough” and can withstand dust, a sudden shower and even torrential rainfall.
• High Quality Topcon Laser
  • Underwent tough environmental tests (vibration test, drop test, high/low temperature test, repeatability accuracy test, laser endurance test, and rotating head endurance test), simulated as tough construction site
• Level Sensor
  • Standard level sensor.
  • Arrow display with buzzer shows the difference.
  • Displays Topcon laser status alerts (HI and low battery).

The Topcon LS-80X Laser Receiver Sensor Detector provides a longer range when using a red beam rotary laser. The unit can be adjusted for fine or coarse band, which helps improve the accuracy.

• RL-H5A Laser
• LS-80X Sensor
• Sensor Holder

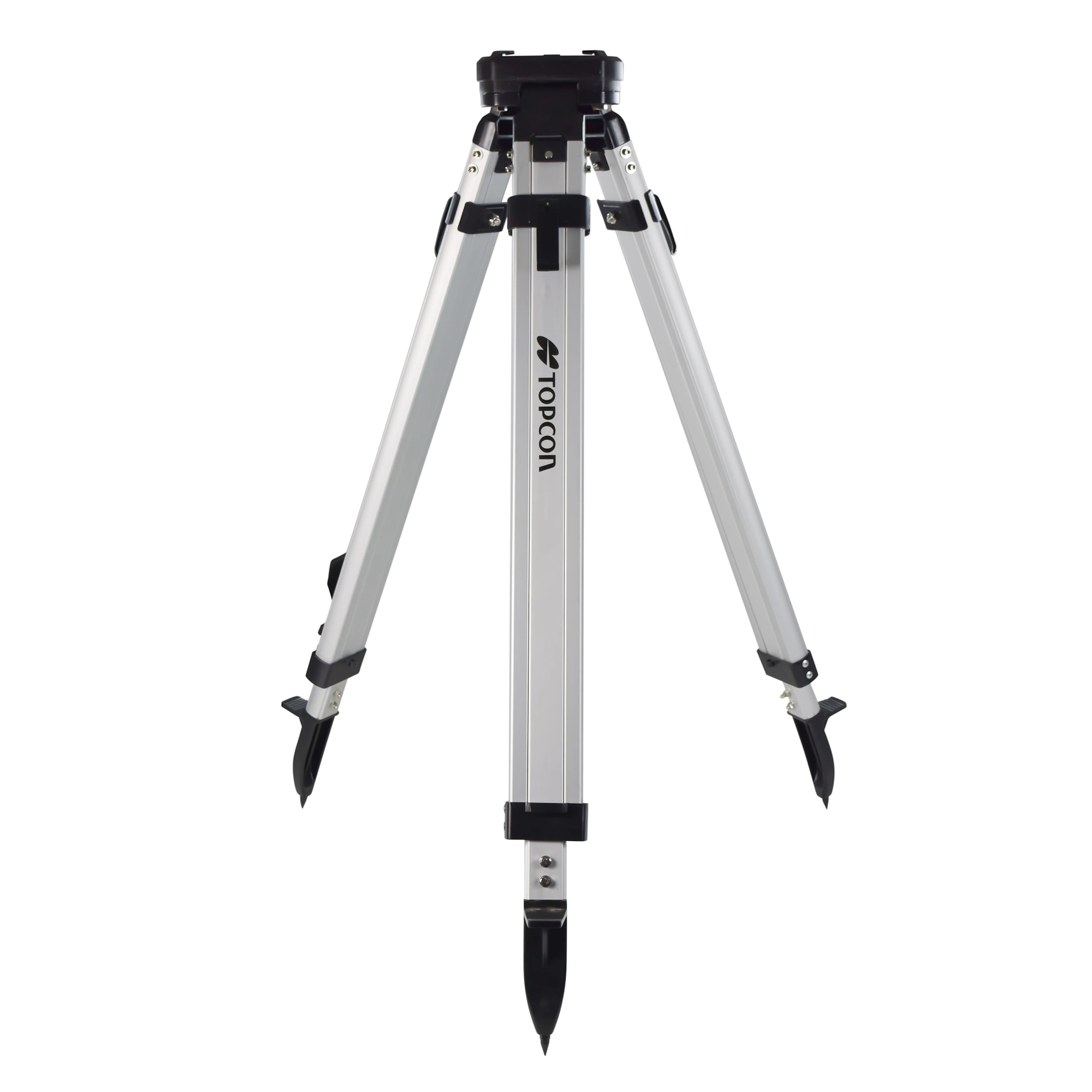

• Tripod
• 13 ft. Adjustable Grade Rod (Tenths/Inches)
• Batteries
• Chargers

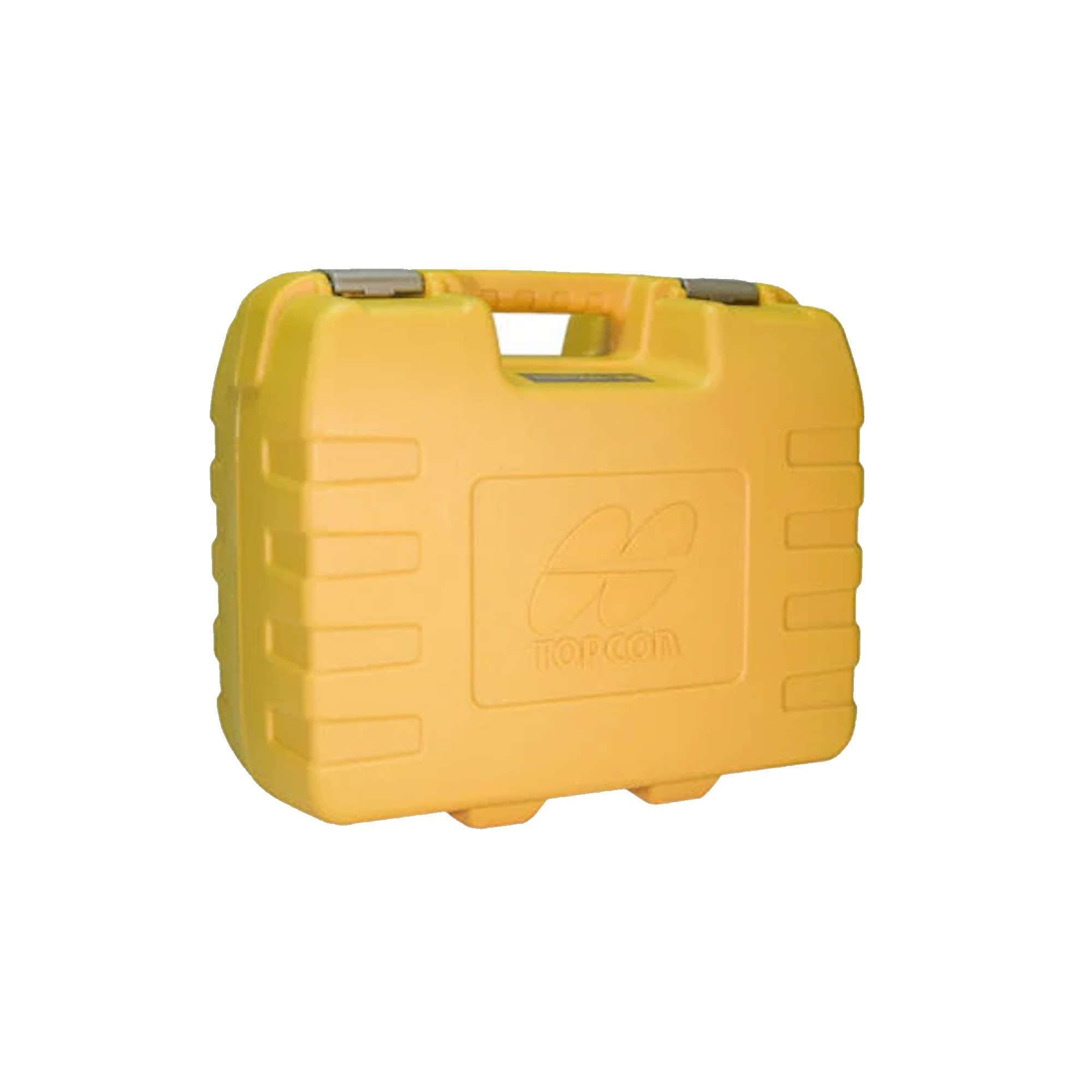

• Carry Case

• Operating range: Diameter Approx. 2 to 800 m (When using LS-80L)
• Accuracy: ±10"
• Self-leveling range: ±5°
• Manual slope settable range: ±5° (When the instrument is installed on the 0° surface)
• Laser source: Laser diode (Visible, 635 nm) CDRH (FDA) Class IIIa, IEC Class 3R
• Rotational speeds: 600 r.p.m
• Status alerts: HI and low battery
• Dust and water resistance: IP66 (IEC60529: 2001)
• Operating temperature: -20 to 50°C (-4 to 122°F)
• Size: 104(W) x 127(D) x 37(H) mm

• Working Diameter 3 to 3,100 feet
• Defective Precision High Precision +/- 1.0mm
• Normal Precision +/- 2.0mm
• Detective Range 50mm
• Dual LCD (Both Sides)
• Arrow Display: 9
• Numeric Readout: N/A
• Speaker Levels: Loud/Low/Off
• Warning Display: Height Alert andBattery Level
• Auto Shutoff: 30min
• IP Rating: IP66
• Operating Temperature: -20 to +50C
• Dimensions: 146 (L) x 76 (W) x 25 (H) mm
• Power Supply: 2x AA Dry CELL or Alkaline
• Battery Life: 120h (Alkaline)

NOTE: Due to interstate and international shipping constraints, Topcon products do not include alkaline batteries.
