Topcon RL-HV1S Single Grade Laser w/ LS-80X Receiver

Model Number: 1051612-08

Features:
  • The Topcon RL-HV1S Single Grade Laser w/ LS-80X Receiver is designed to be rugged and compact, providing maximum durability and value for your money.
  • Suitable for a wide range of applications, including horizontal, sloping, and vertical laser applications, the RL-HV1S is capable of slopes up to ±15% in the X-axis. You can even turn it on its side for layout and alignment applications.
  • With its exceptional long-range operation, the RL-HV1S is capable of shooting elevations up to 400m from your laser, covering an 800m (diameter) jobsite. Plus, you can operate it remotely from your smartphone with a range of 100m for horizontal operation and 20m for vertical operation.
  • The standard HV1S kit includes the Topcon LS-80X hand receiver and Dry alkaline Batteries (lasting up to 120hrs), providing everything you need for a seamless laser experience.
  • Designed to withstand even the toughest job site conditions, the RL-HV1S boasts an IP66 rating, meaning it can handle dust, sudden showers, and even torrential rainfall. And with Topcon's 5-year warranty, you can trust in the accuracy and reliability of this incredible laser.
  • Features Bluetooth Laser Manager (app download). Compatibility for iOS and Android provides wireless remote control using a cell phone to adjust slope and check calibration. No special remote control needed.
Specifications:
  • Accuracy H: ±10 arc seconds
  • Self-Leveling Range: Horizontal/Vertical ±5°
  • Grade Single: ±15%
  • Working Area: 800m or more (diameter)
  • Rotation Speed: 300, 600 rpm (selectable)
  • Topcon Laser Manager App: Bluetooth 5.0
  • Range: Horizontal 100m/Vertical 20m
  • Battery Duration: 120hrs
  • Operating Temp.: 20ºC to 50ºC
  • LS-80X Hand Receiver: ±1mm & 2mm
  • IP Rating: IP66
  • Warranty: 5 Years
  • Net Weight (kg): 7
  • Product Length (mm): 440
  • Product Width (mm): 260
  • Product Height (mm): 390
  • Includes:

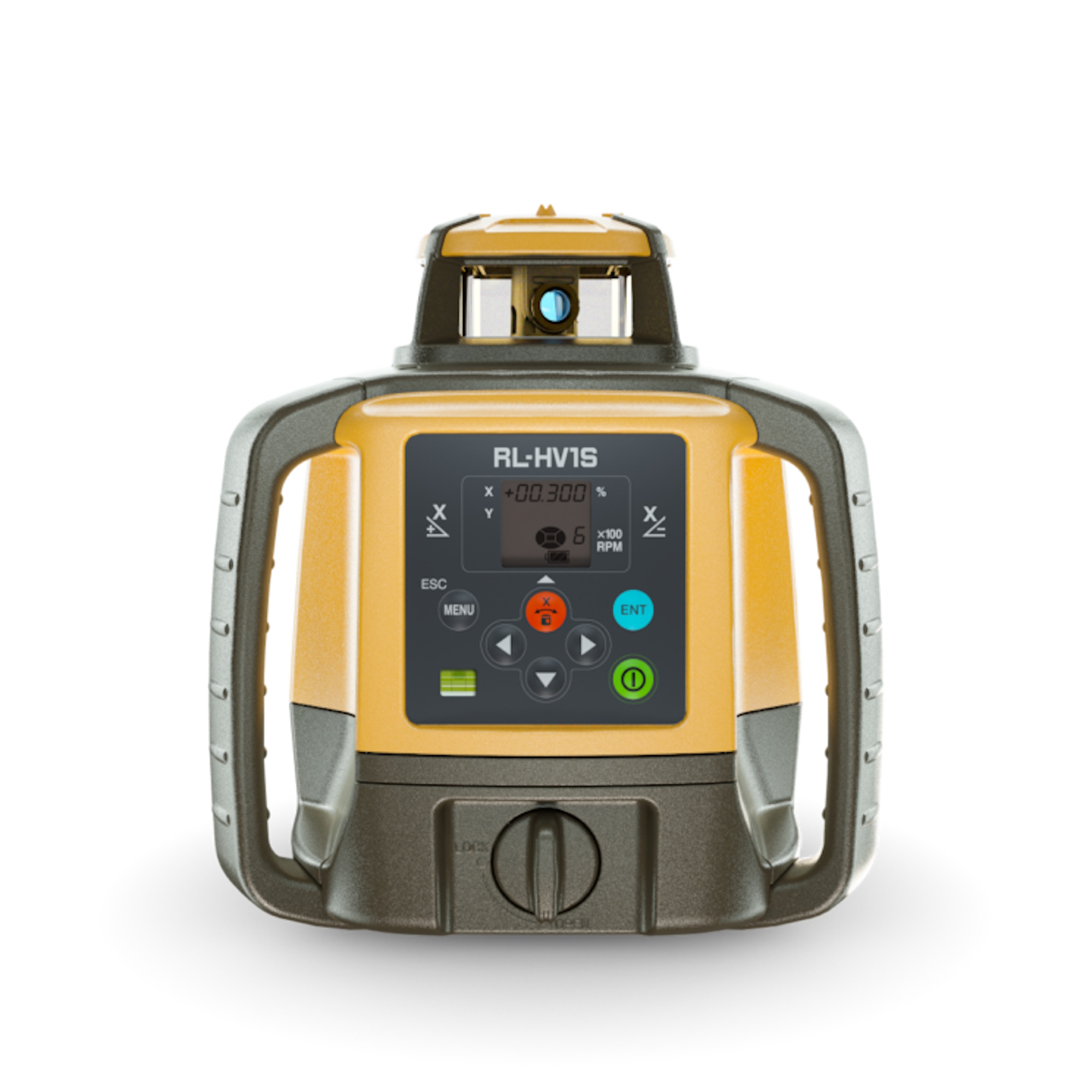

    • Topcon RL-HV1S Single Grade Laser Level

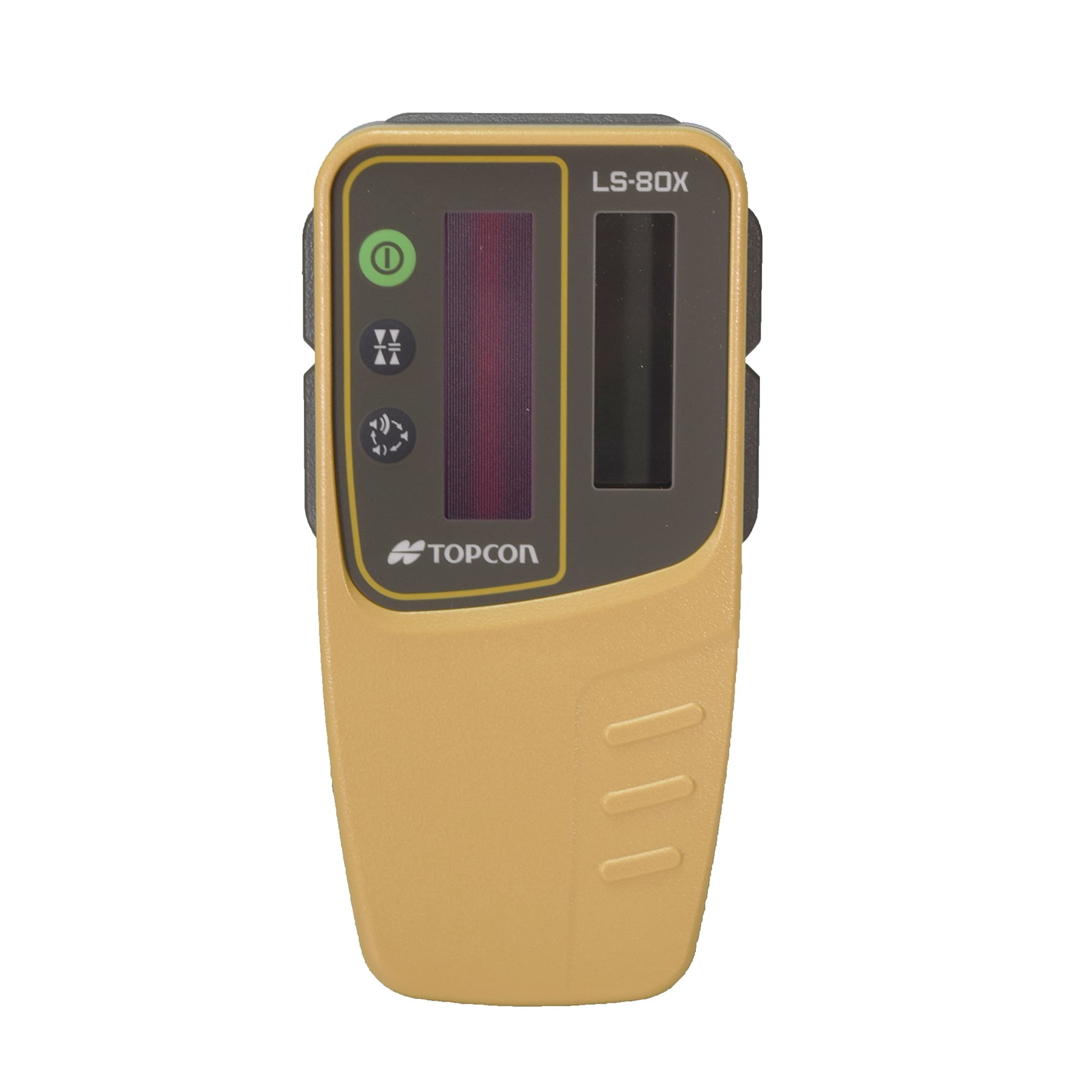

    • Topcon LS-80X Hand Receiver

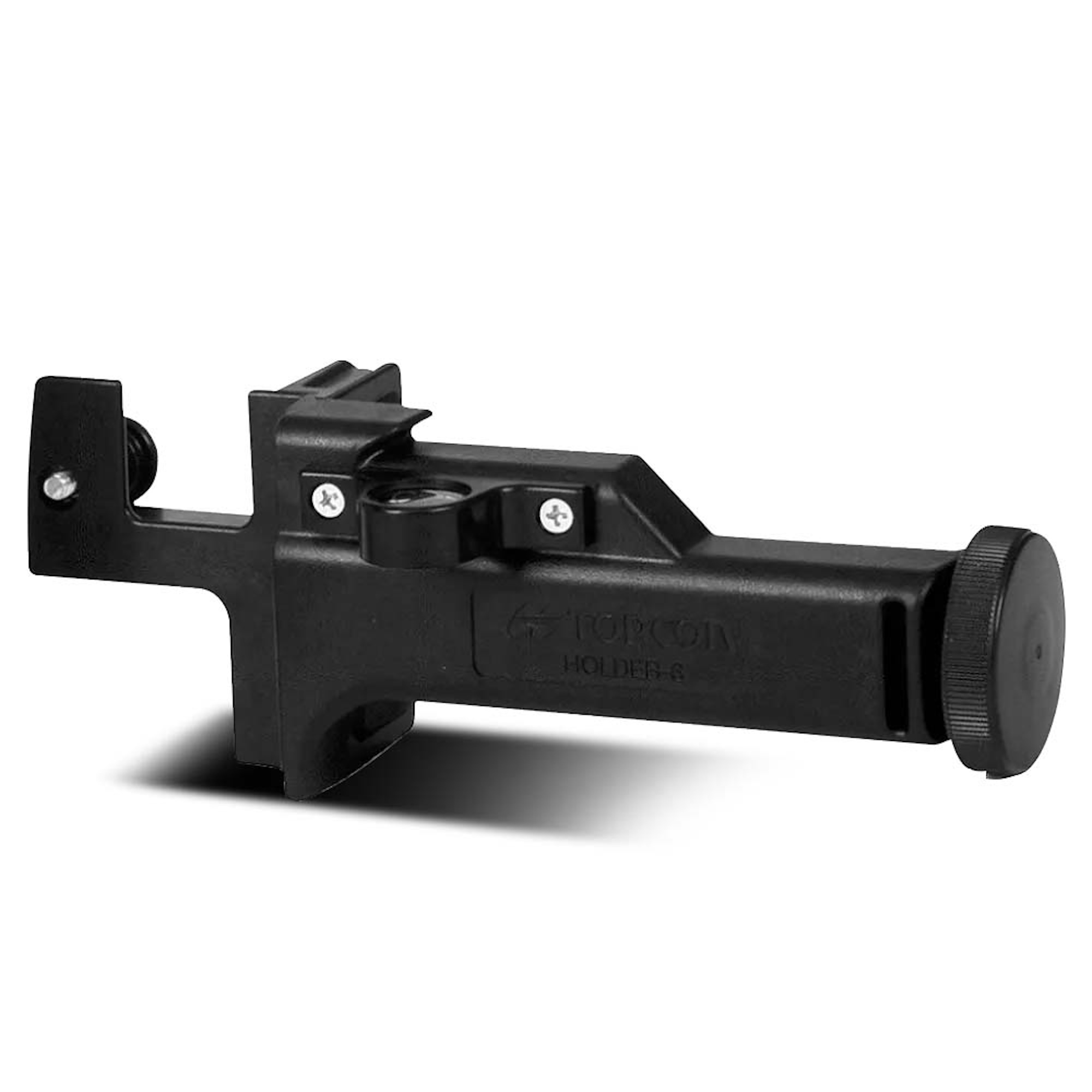

    • Topcon (Holder 6) Receiver Clamp
    • 4 x D-Cell Alkaline Batteries and charger

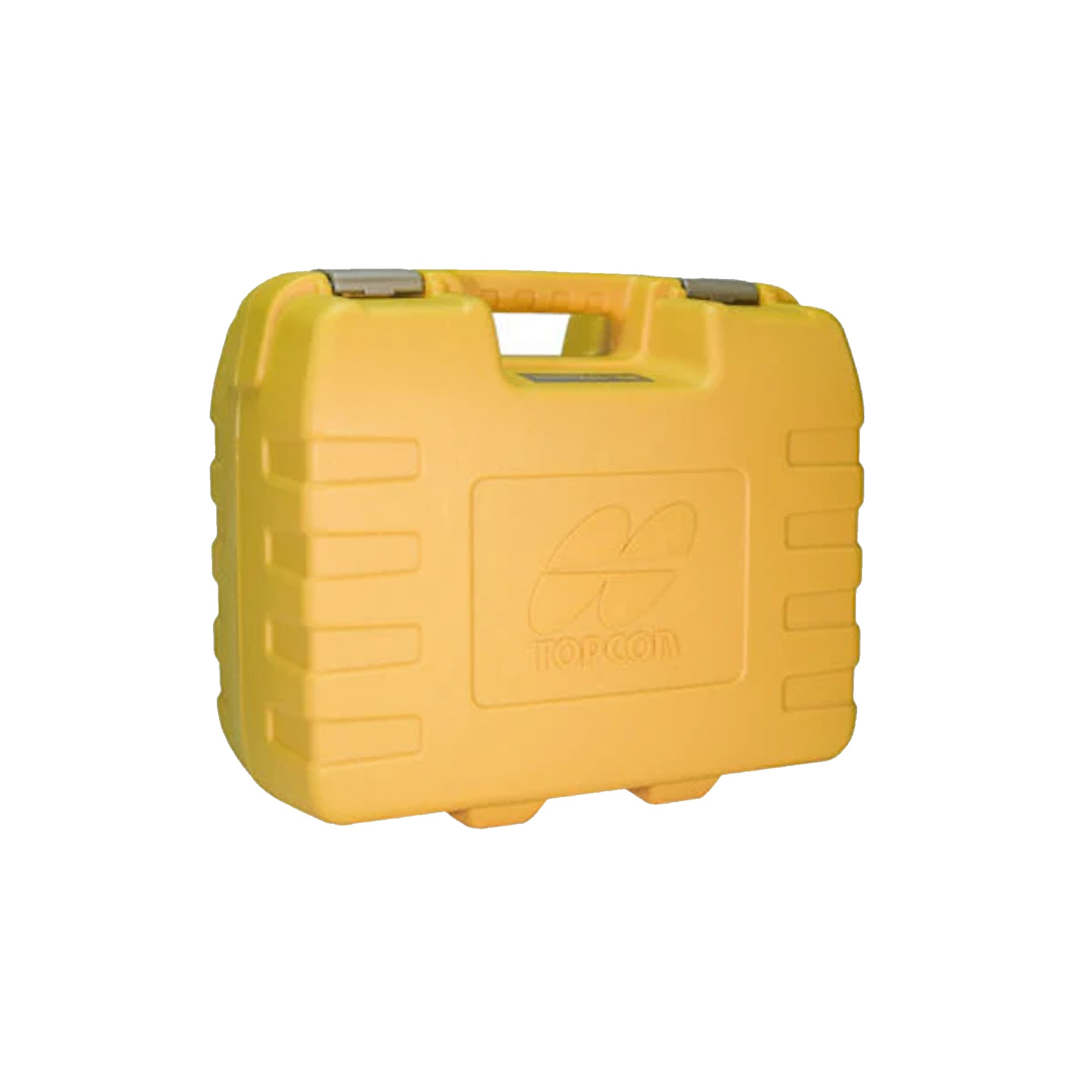

    • Carry Case
    • Australian Calibration Certificate
    • Operator Manual
*Tripod not included.
  • MPN: 1051612-08
