CHCNAV AlphaAir 15 (AA15) Airborne LiDAR System - 8005 010 114

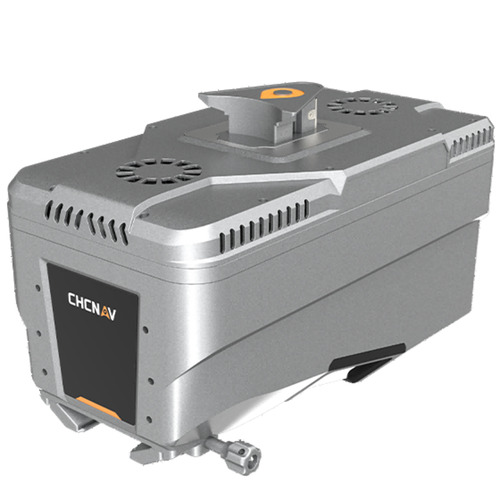

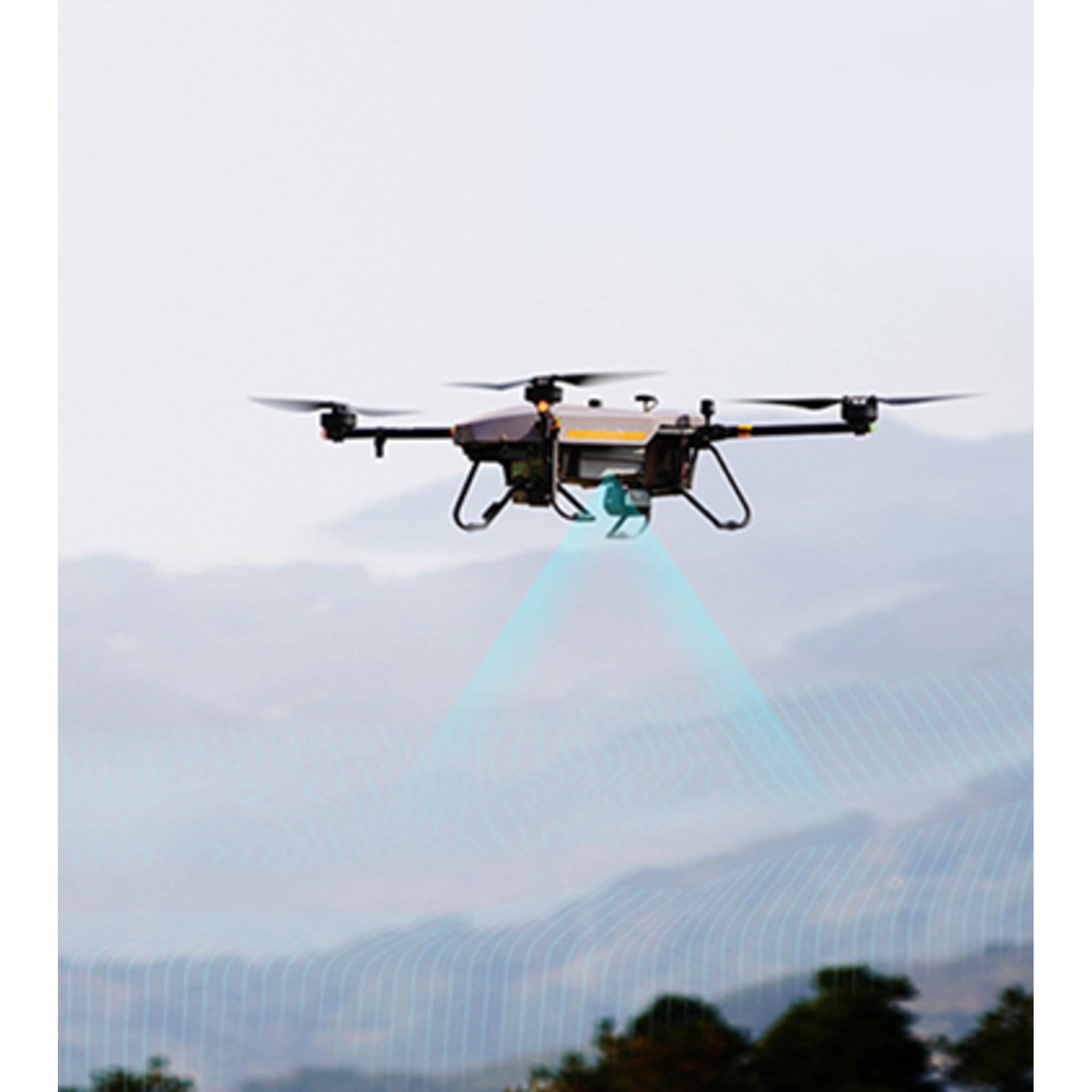

The AlphaAir 15 (AA15) is a lightweight, high-performance airborne LiDAR system designed for large-scale operahttps://www.engineersupply.com/BVAdmin/images/buttons/SaveAndReturn.pngtions where high-density data capture is crucial. With a range of up to 1800 meters and the ability to produce 2 million pulses per second, the AA15 is ideal for mapping and geospatial applications, including corridor mapping, urban planning, and vegetation analysis. Its compact design allows for easy integration with UAVs, small aircraft, and helicopters.

• High-Accuracy Data Capture: The AA15 delivers 15 mm linear accuracy on long-range scans up to 150 meters using CHCNAV's patented tilted-prism technology. Its precision ensures reliable data for complex projects, such as corridor mapping, where high-density point clouds are essential.
• Extended Range and Coverage: With a maximum range of 1800 meters and a flying height of up to 700 meters, the AA15 is capable of large-scale area coverage with minimal point loss for corridor mapping applications such as highways, railroads, and pipeline inspections.
• Exceptional Vegetation Penetration: The AA15 excels in penetrating dense vegetation with its advanced multi-target capability, supporting up to 16 returns per laser pulse. It enables the detection of more ground points, ensuring comprehensive data collection in forested areas and improving the accuracy of terrain models.
• Wide Platform Compatibility: The AA15’s lightweight design (2.5 kg) and CHCNAV's unified AlphaPort interface allow for quick integration with various airborne platforms, including UAVs, small aircraft, and helicopters.
• High-Density Point Clouds: Capturing 2 million points per second, the AA15 is perfect for applications requiring high-density point clouds, such as power line inspections, road surveys, and urban mapping.
• Advanced Imaging Options: The AA15 supports a range of external cameras, including CHCNAV's 45 MP and 61 MP full-frame calibrated cameras and a 130 MP half-frame oblique camera. The integration of high-resolution imagery with LiDAR data enhances the quality of 3D models and texture mapping.
• Comprehensive Ecosystem: The AA15 is part of CHCNAV's complete airborne mapping solution, which includes the SmartGo app for automated reality capture and mission monitoring, and CoPre and CoProcess software for streamlined post-processing and feature extraction.
• Rugged and Reliable: Designed to withstand challenging environments, the AA15 operates in temperatures ranging from -20°C to +50°C and is IP64-rated for dust and water resistance. Its robust construction ensures reliable performance in a variety of field conditions.

• Laser Scanner
  • Range: 1800 m
  • Scanning rate: 2.000.000 pulses/sec
  • Field of view: 75°
  • Returns: Up to 16
• Positioning
  • GNSS: Fulll GNSS
  • IMU: 600 Hz
  • Precision max.: <5 cm H / <5 cm V
• Imaging
  • Resolution: 45 MP
  • Focal length: 21 mm/35 mm
• Sensors
  • Camera: Optional external camera

• (1) S20415021600004001: AA15 Unit
• (1) 0201 051 207: Tranport Container Packaged Component
• (1) 0105 030 123: USB3.0 to TYPE-C Adapter Cable
• (1) 4105 140 006: USB3.0 SD/TF Card Reader
• (1) 4108 030 009: 32 GB USB Flash Disk
• (1) 4190 070 015: Lens Cleaning Air Blow
• (1) 4106010104: User Manual
• (1) S39905000024202001: C5 (21mm) Camera

Click Here for Data Sheet

Disclaimer:

• Some products featured on this page may require additional software to function properly. Such software may be sold separately and is not included in the listed product price. Please review individual product specifications for complete system requirements and compatibility details. For further information, please contact our sales team at sales@engineersupply.com, who will be happy to assist you.

• Can the AA15 be used on different airborne platforms?
  • Yes, the AA15’s lightweight design and CHCNAV Alphaport interface allow for quick integration with UAVs, RPAS, manned aircraft, and helicopters.
• What is the maximum operational range of the AA15?
  • The AA15 has a maximum range of 1800 meters, making it suitable for large-scale area coverage, including corridor mapping and urban planning.
• What software solutions are compatible with the AA15?
  • The AA15 integrates with CHCNAV’s SmartGo app for mission monitoring and CoPre and CoProcess software for post-processing, ensuring efficient data workflows.
• How is data stored and transferred from the AA15?
  • The AA15 features 512 GB of onboard storage (with an optional 1 TB upgrade) and supports data transfer via Ethernet, ensuring efficient data management.
