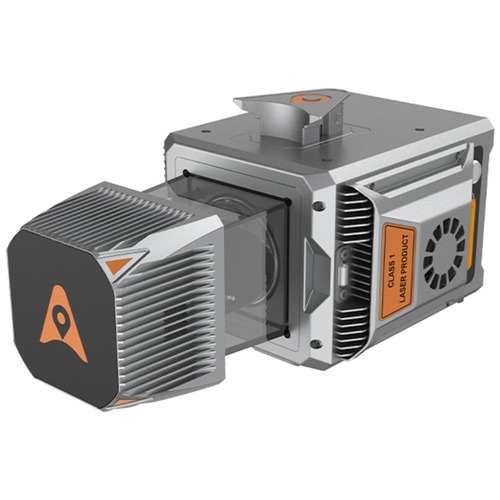

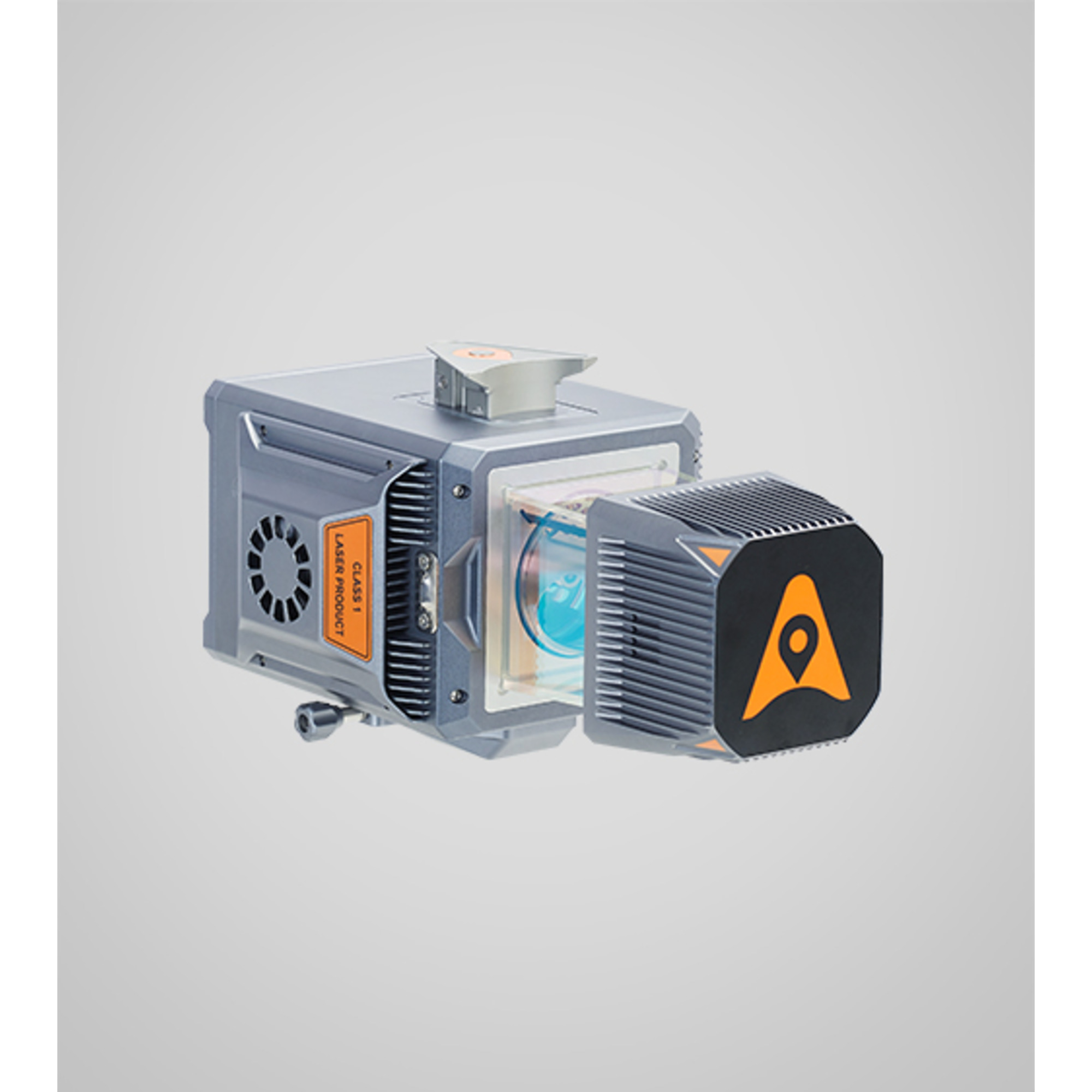

CHCNAV AlphaUni 20 (AU20) Multi-platform Mobile Mapping System (without C5 camera) - 8005 010 145

The AlphaUni 20 is a cost-effective, premium-class multi-platform mobile mapping system that embodies CHCNAV's advanced LiDAR technology. Designed for precise point cloud generation, it is ideal for applications including pavement assessment, highway maintenance, and asset management through vehicle-based surveying. In airborne applications, the AU20 increases survey efficiency with excellent vegetation penetration, long measurement range, and high data accuracy and density.

• High-Precision Data: Achieve outstanding accuracy with the AU20 advanced navigation algorithm and 5 mm repeated ranging accuracy. Ensure precise point cloud generation even in demanding environments.
• Long-Range Scanning: Benefit from long-range capabilities up to 1450 meters and high-speed scanning at 2 million points per second. Cover large areas efficiently with high-density data collection.
• Superior Vegetation Penetration: Capture ground surfaces effectively with up to 16 target echoes. Generate accurate DEMs and DSMs even in densely vegetated areas, improving data quality in challenging environments.

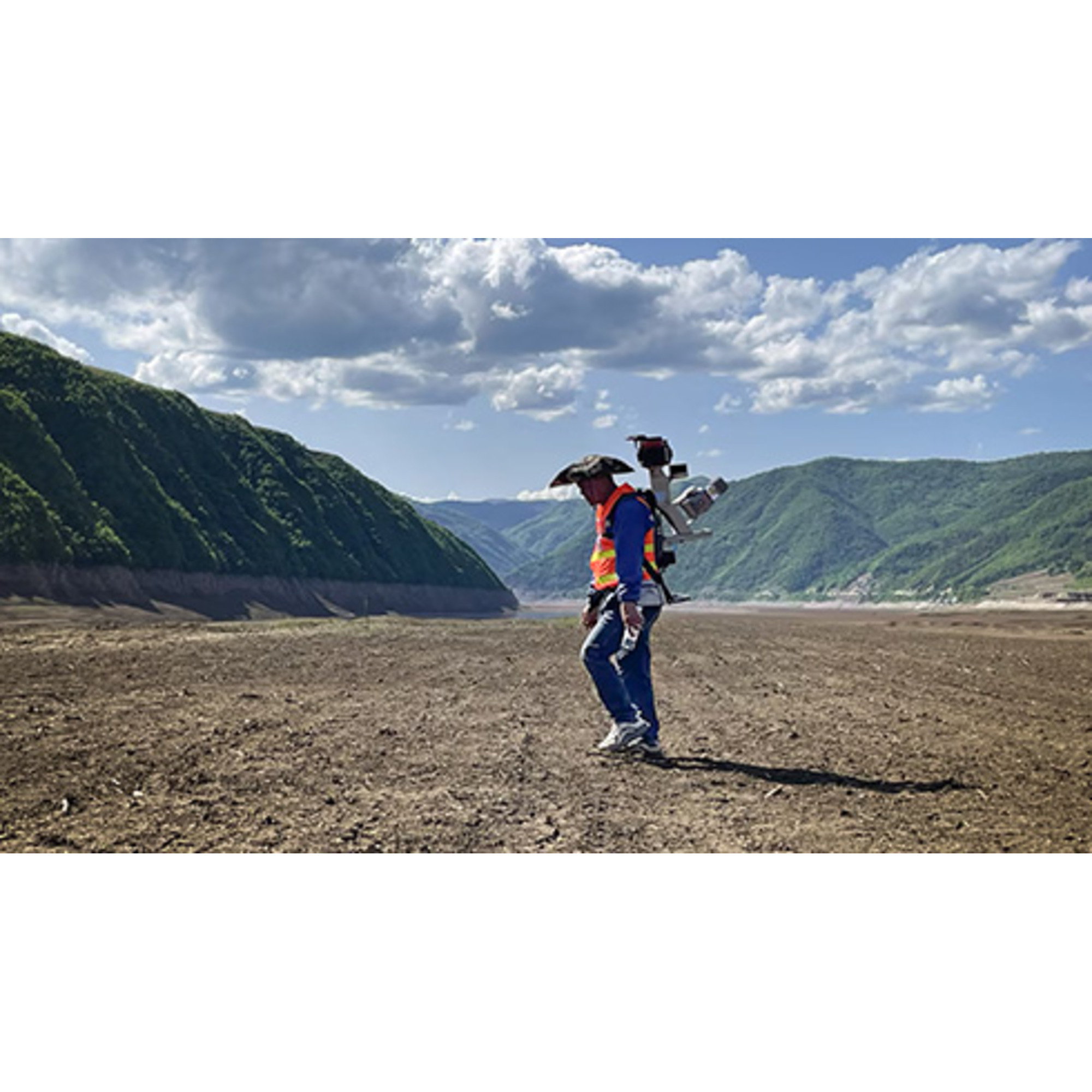

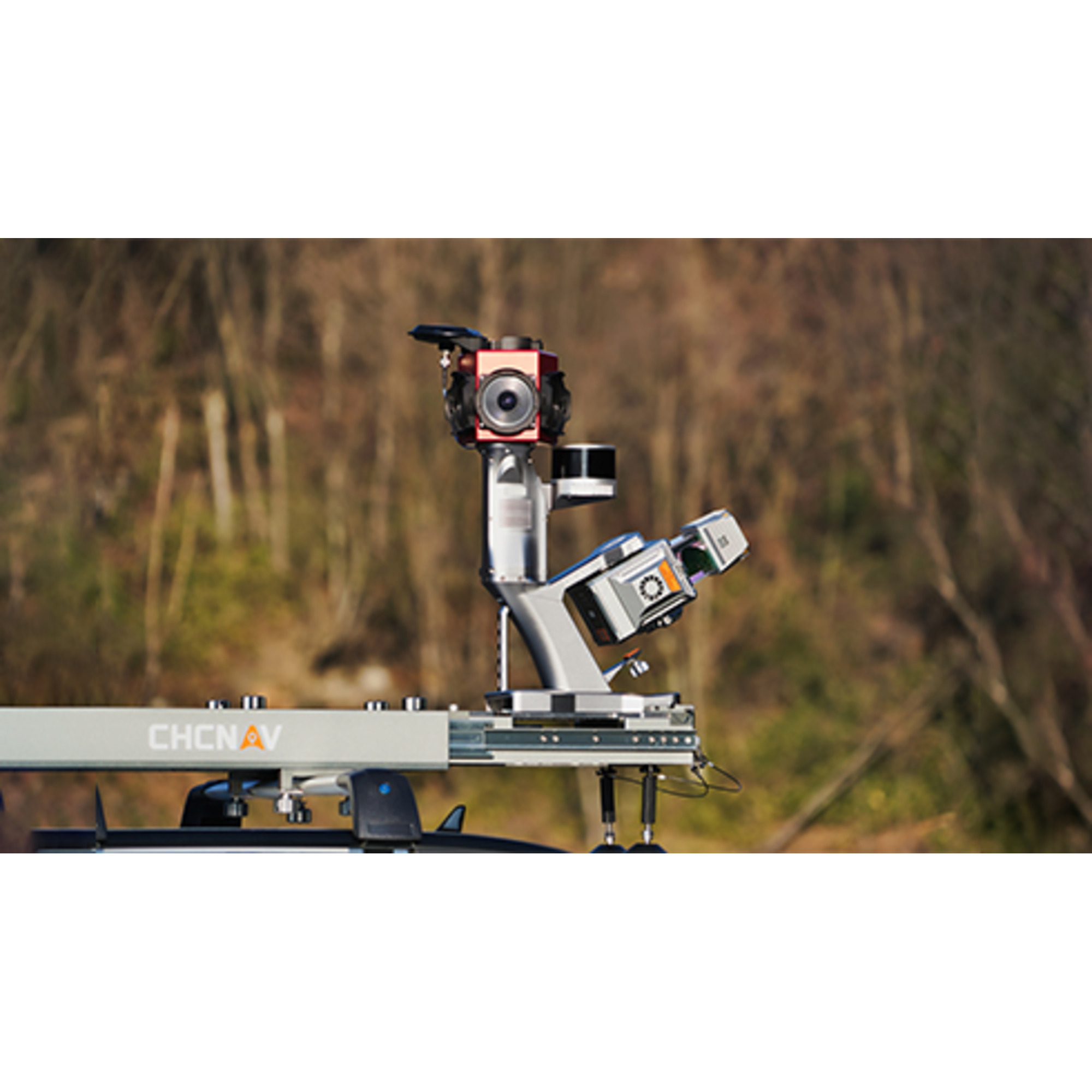

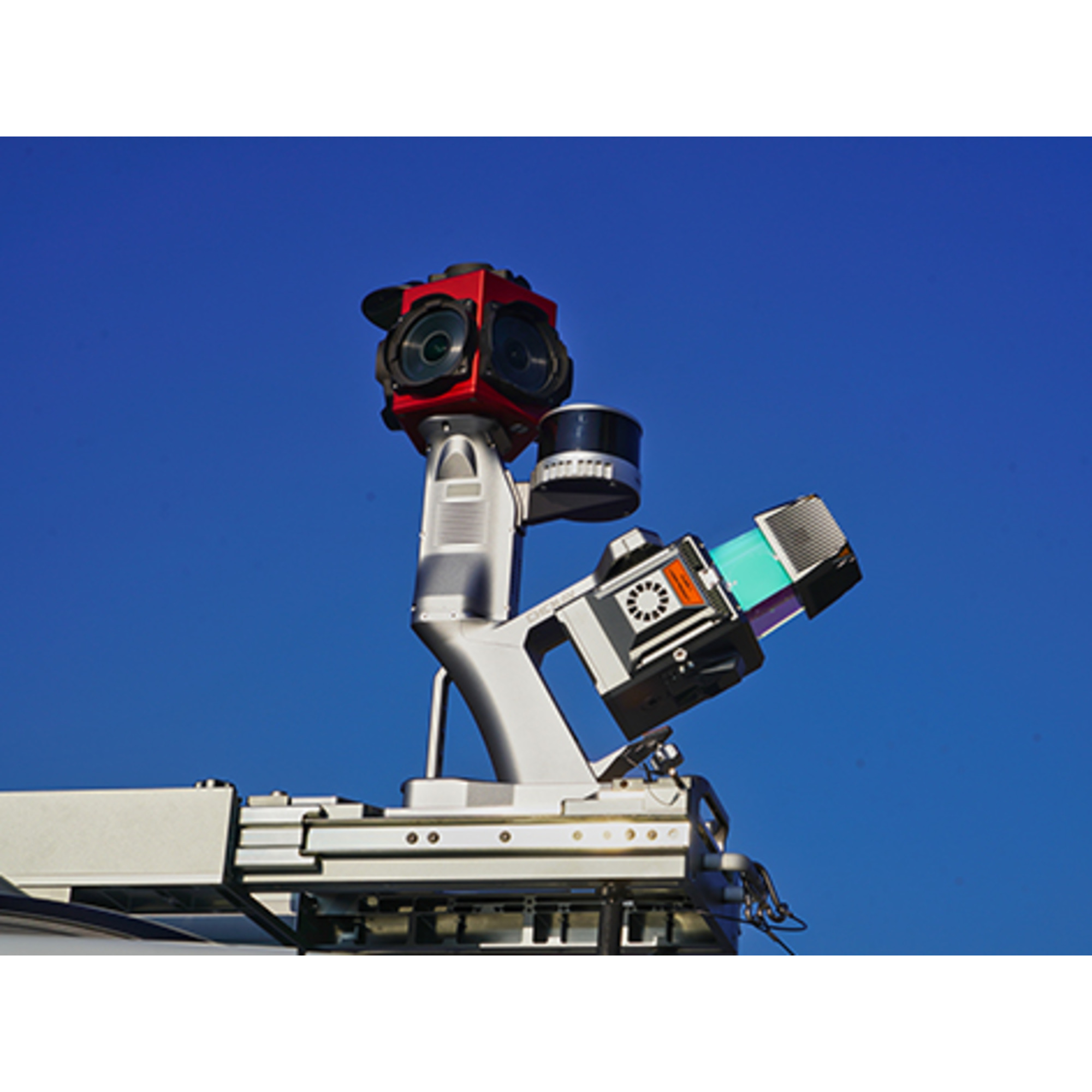

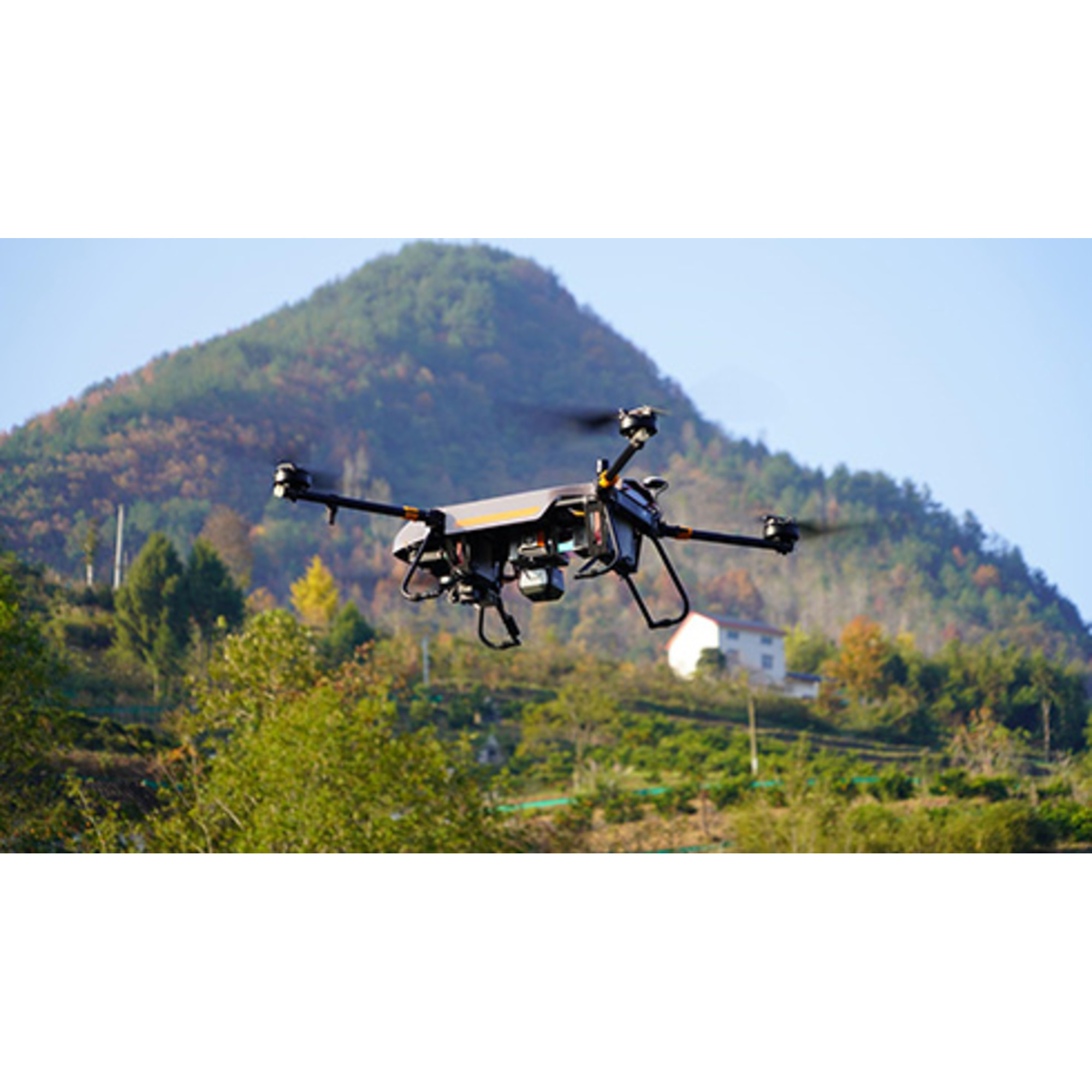

• Multi-Platform Flexibility: Easily switch between crewed and unmanned aircraft, land vehicles, and backpack setups. Enjoy versatile applications from road surveys to airborne mapping, enhancing operational flexibility.
• Rugged and Lightweight Design: Operate in various field environments with the IP64-rated, lightweight (2.82 kg) AU20. Ensure reliable performance and easy integration with multiple platforms, from UAVs to vehicles.
• Efficient Workflow: Streamline your data acquisition with SmartGo software for real-time mission monitoring and CoPre software for intelligent point cloud processing. Achieve high-quality results with minimal effort.
• Quick Installation: Install the AU20 quickly with Alphaport's one-click connection. Minimize setup time and maximize productivity across various survey missions.

• Laser Scanner
  • Range: 1450 m
  • Scanning rate: 2.000.000 pulses/sec
  • Field of view: 360°
  • Returns: Up to 16
• Positioning
  • GNSS: Full GNSS
  • IMU: 600 Hz
  • Precision max.: <5 cm H / <5 cm V
• Sensors
  • Camera: Optional
  • Resolution: 45 MP
  • Focal length: 21 mm / 35 mm

• (1) S20220081600004001: AU20 Unit
• (1) 0105 030 123: USB3.0 to TYPE-C Adapter Cable
• (1) 4105 140 006: USB3.0 SD/TF Card Reader
• (1) 4108 030 009: 32 Gb USB Flash Disk
• (1) 0201 051 132: Tranport Container Packaged Component
• (1) 4190 070 015: Lens Cleaning Air Blow
• (1) 4109 020 148: SmartGo
• (1) 4106 010 087: AU20 Factory Test Certificate
• (1) 4106 010 089: User Manual

Click Here for Data Sheet

Disclaimer:

• Some products featured on this page may require additional software to function properly. Such software may be sold separately and is not included in the listed product price. Please review individual product specifications for complete system requirements and compatibility details. For further information, please contact our sales team at sales@engineersupply.com, who will be happy to assist you.

• What are the applications of the AlphaUni 20 mobile mapping system?
  • The AU20 applications include road and highway mapping, urban planning, infrastructure inspection, environmental monitoring, disaster management, and any project requiring detailed geospatial data over extensive areas.
• How does AU20 mobile mapping system ensure data accuracy?
  • AU20 uses advanced sensors and precise GNSS positioning to capture detailed spatial data. The data is processed using sophisticated algorithms to ensure accuracy and minimize errors, providing reliable mapping results.
• Can AU20 mobile mapping systems be used for large-scale projects?
  • Yes, mobile mapping systems are ideal for large-scale projects. They efficiently capture extensive geospatial data, which can be processed and analyzed to create detailed maps and models of large areas.
• What platforms are compatible with the AlphaUni 20?
  • The AU20 can be mounted on UAVs, crewed aircraft, land vehicles, and backpacks, providing versatile application options.
• What is the maximum measurement range of the AlphaUni 20?
  • The AU20 can measure distances up to 1450 meters, enabling extensive coverage for large-area surveys.
