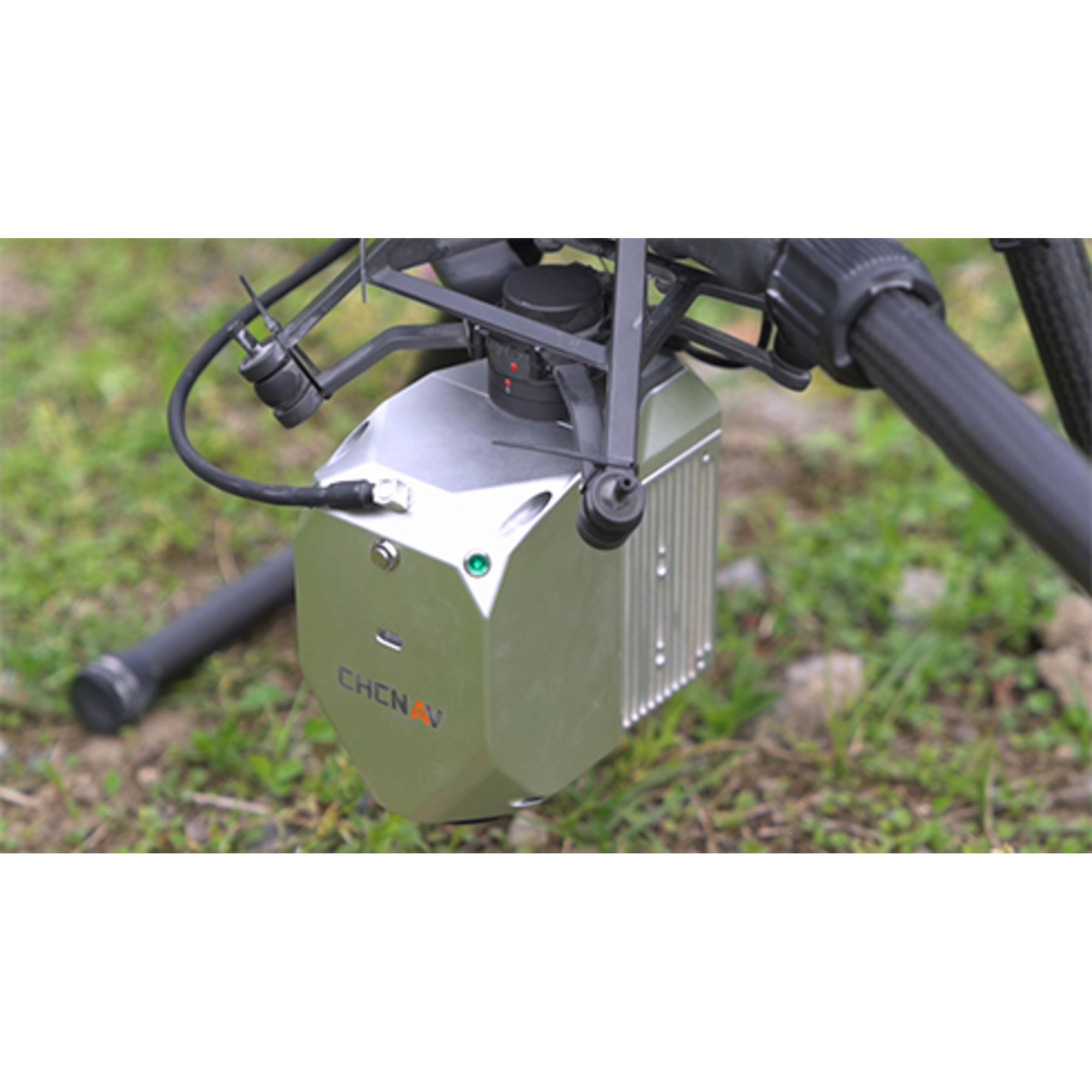

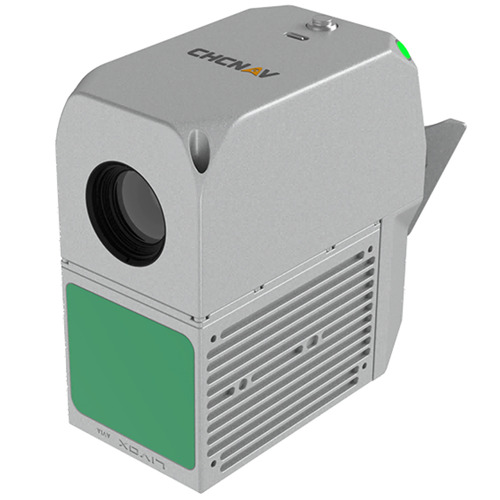

CHCNAV AlphaAir 450 (AA450) Airborne LiDAR+RGB System - 8005 010 044

The AlphaAir 450 is designed for simplicity and precision, making advanced geospatial reality capture accessible to non-professional users and those new to the technology. At an affordable price, the AA450 combines ease-of-use with high-precision capabilities. This lightweight, durable solution integrates a high-performance laser scanner, a professional-grade 26 MP industrial camera, and a high-precision inertial navigation system to ensure superior data collection quality.

• High-Precision Data: Achieve high-precision data with the integrated LIVOX AVIA laser scanner and 26 MP industrial camera. Obtain detailed and reliable geospatial data for various applications, from topographic mapping to emergency response.
• Long-Range Scanning: Utilize long-range scanning capabilities up to 450 meters with high point density. Enhance productivity by covering extensive areas quickly and accurately in a single UAV flight.
• Cost-Effective Solution: Access advanced LiDAR technology at an affordable price. The AA450 democratizes geospatial reality capture, making it accessible to a wider range of users and applications.
• Easy-to-Use Interface: Operate with simplicity using the AlphaAir 450’s intuitive design. Ideal for non-professional users, it enables efficient and accurate data collection without the need for extensive training.

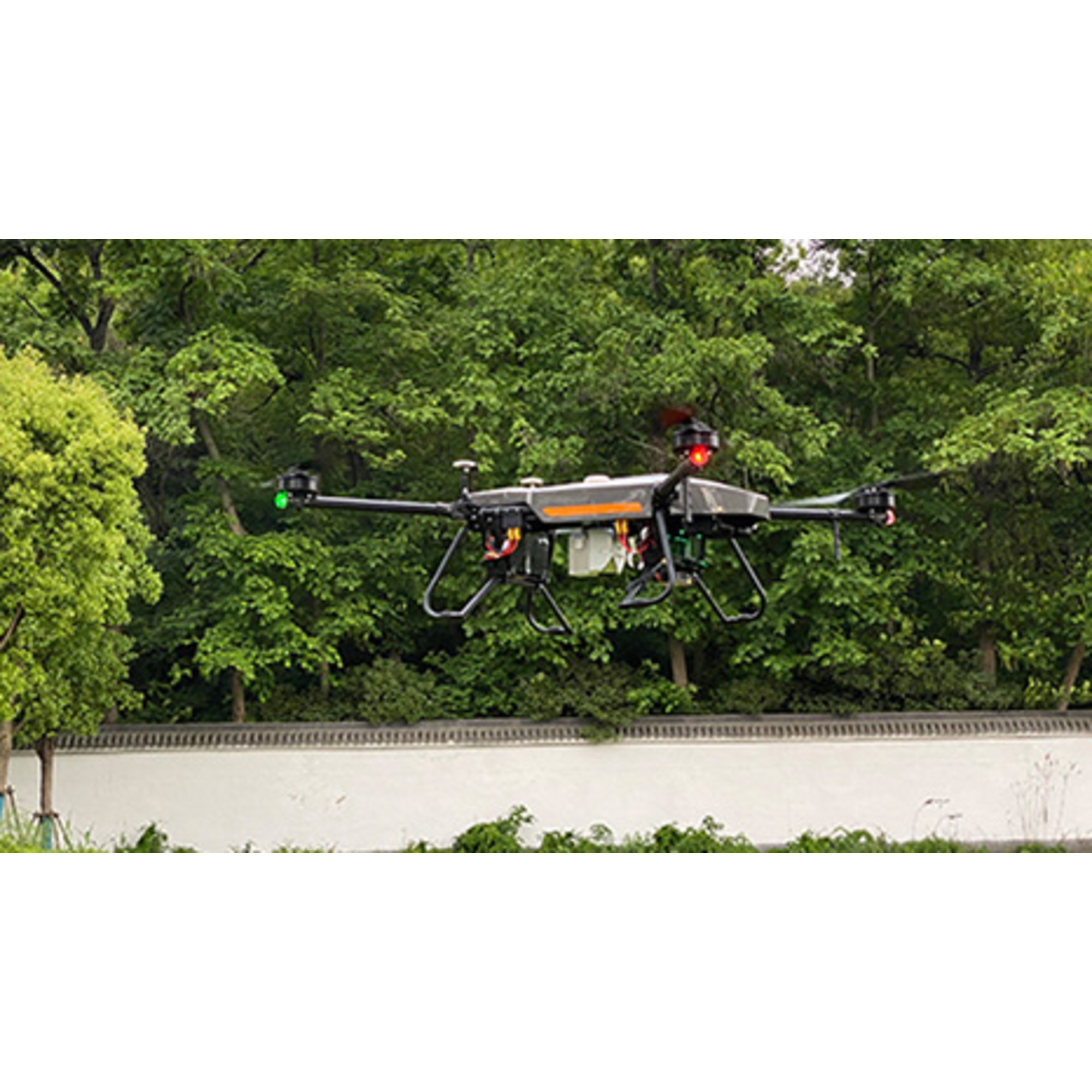

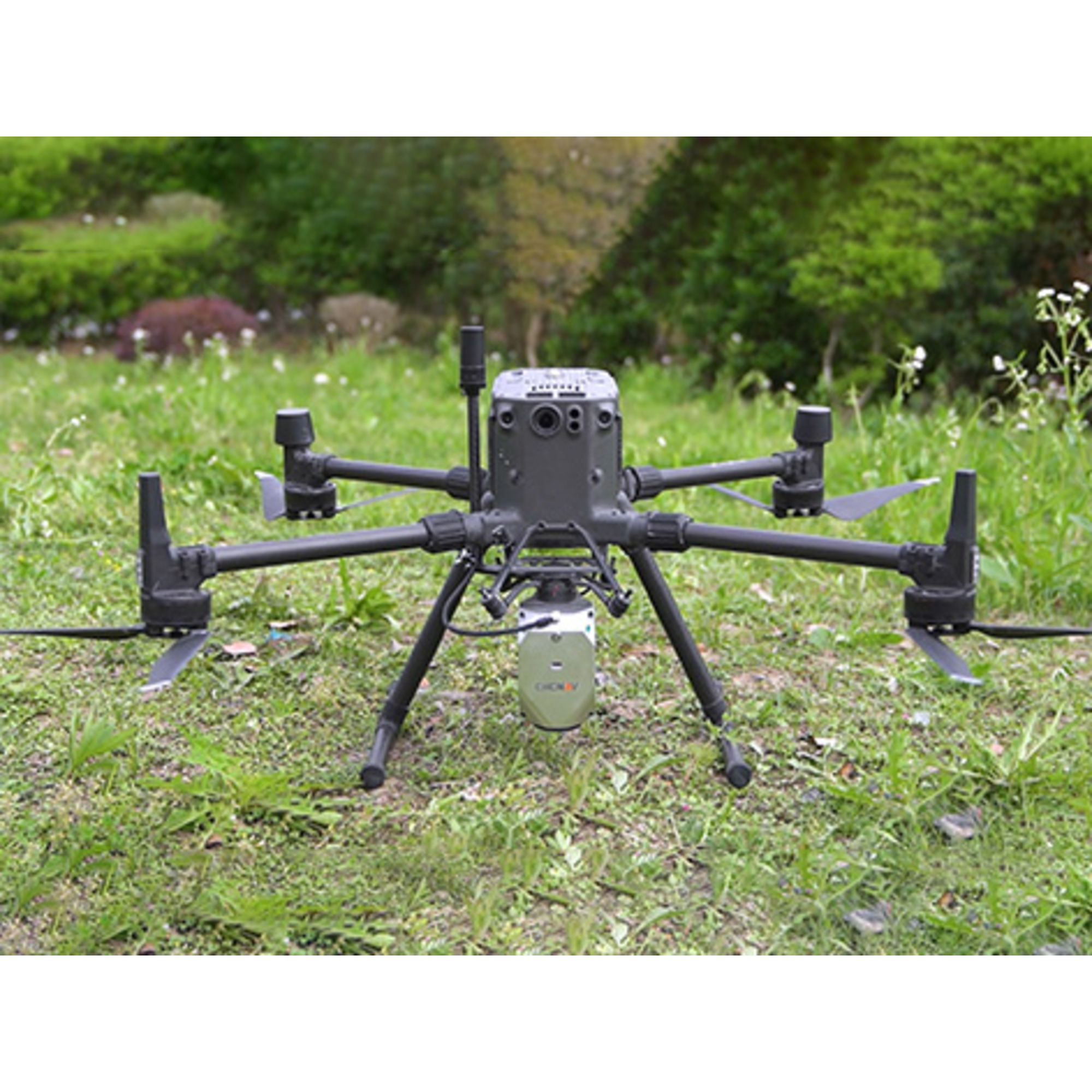

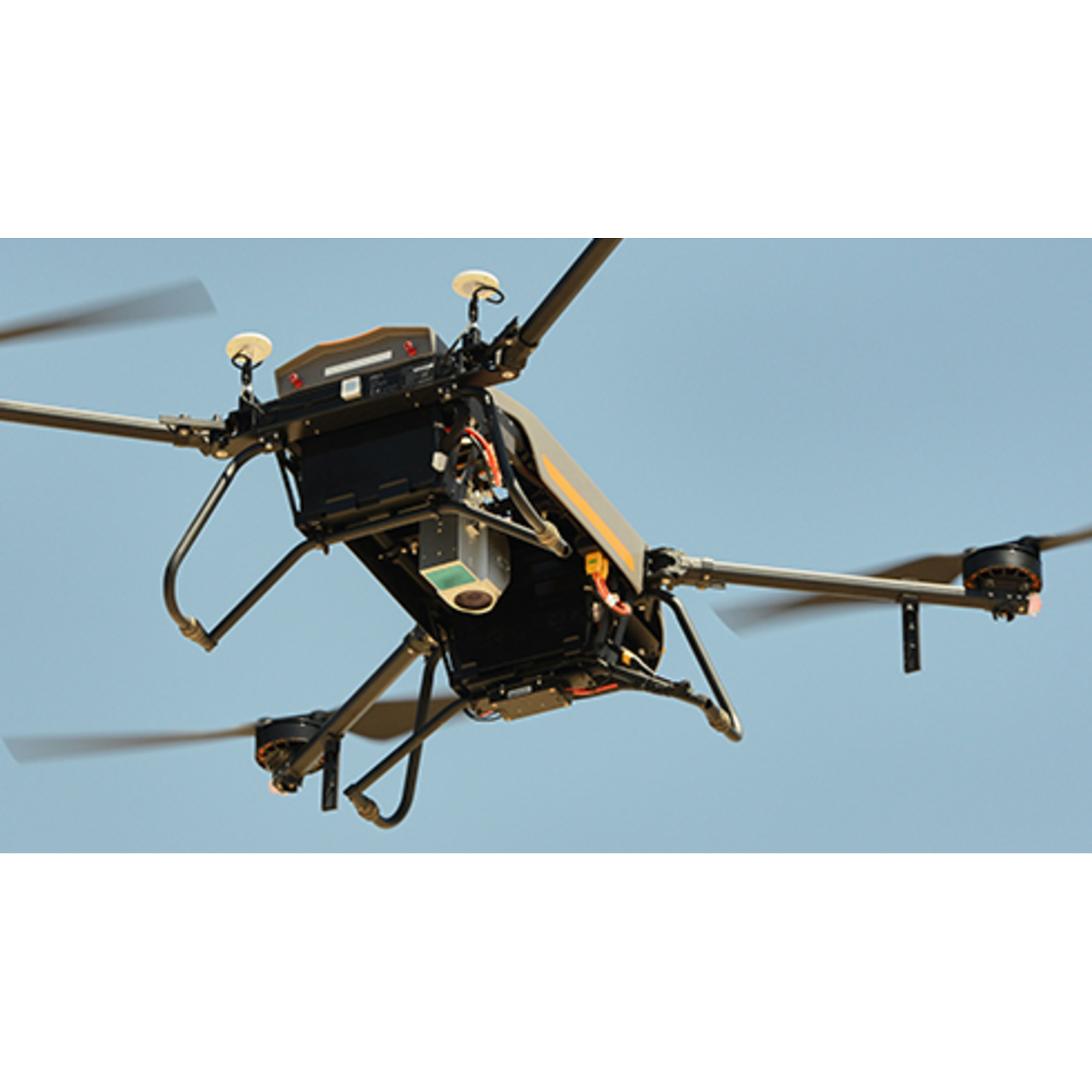

• Versatile UAV Integration: Compatible with multiple UAV platforms, including DJI M300/M350 and CHCNAV BB4. The Skyport interface allows seamless integration, ensuring versatility and ease of use.
• Enhanced Weather Resistance: Operate confidently in various weather conditions with the IP64 rating, ensuring consistent performance and data quality, even in challenging environments.

• Laser Scanner
  • Range : 450 m
  • Scanning rate : 240.000 / 480.000 / 720.000 pulses/sec
  • Field of view : 70.4°
  • Returns : Up to 3
• Positioning
  • GNSS : Full GNSS
  • IMU : 500 Hz
  • Precision max. : 10 cm H / 5 cm V
• Imaging
  • Resolution : 26 MP
• Connectivity
  • Wireless : Bluetooth, Wi-Fi, NFC
  • Cellular : 4G LTE

• (1) Y1A201179500000002: AlphaAir 450 Unit (Alphaports)
• (1) 3204 070 002: USB Dongle(For Copre)
• (2) 1904 110 662: CoPre Standard
• (1) 4109 020 169: CoProcess Engineering Version
• (1) 0105 030 123: Type-C to USB3.1 Data Copy Cable (1 m)
• (1) 4108 030 009: CZ73-32G USB Disk
• (1) 4106 040 184: Transport Container for AlphaAir 450

Click Here for Data Sheet

Disclaimer:

• Some products featured on this page may require additional software to function properly. Such software may be sold separately and is not included in the listed product price. Please review individual product specifications for complete system requirements and compatibility details. For further information, please contact our sales team at sales@engineersupply.com, who will be happy to assist you.

• What factors should be considered when choosing an airborne LiDAR system?
  • Consider factors like pulse rate, range, accuracy, resolution, platform compatibility, and data processing capabilities to select a system such as the AA450 that meets the specific needs of your mapping project.
• Why is the AlphaAir 450 considered cost-effective?
  • The AA450 offers advanced LiDAR technology at an affordable price, making high-precision geospatial reality capture accessible to a broader range of users.
• What UAVs are compatible with the AlphaAir 450?
  • The AA450 is compatible with various UAVs, including DJI M300, CHCNAV BB4, and other multi-rotor and fixed-wing platforms.
• How does the AlphaAir 450 ensure high-precision data?
  • The AA450 integrates the Livox Avia laser scanner and a high-precision GNSS + IMU system, ensuring reliable and accurate geospatial data collection.
• What software is included with the AlphaAir 450?
  • The AA450 comes with CHCNAV CoPre software for efficient post-processing and data alignment.
