Leica DD300 Connect Plumbers Package - 6018915

The Leica DD300 Connect Utility Locator features an LCD color screen with video tutorials for a simple step-by-step survey. The DD300 Connect offers a wide range of standard frequencies, including an 83kHz high-frequency that bridges the gap from 33kHz to 131kHz. It is equipped with an innovative digital trim, providing accurate detection even in multi-target environments.

• Ease of Use:
  • Smart & easy device for real-time, accurate, and reliable detection of underground infrastructures.
  • Improves safety by mitigating risks on construction sites.
• Customization:
  • Adapts to various surveyor needs with the Leica DD300 and Leica DA300 transmitter.
  • Provides unprecedented customization in the avoidance market.
• Reliability:
  • Innovative digital trim for accurate detection in multi-target environments.
  • Supports a wide range of transmission frequencies.
  • Unique in the market for supporting the 83kHz frequency, aiding in complex underground structure detection.
  • Designed for improved serviceability with self-calibration functionality for easy and autonomous testing and re-calibration.
• Digital Trim:
  • Assists operators in pinpointing the desired target even in complex scenarios.

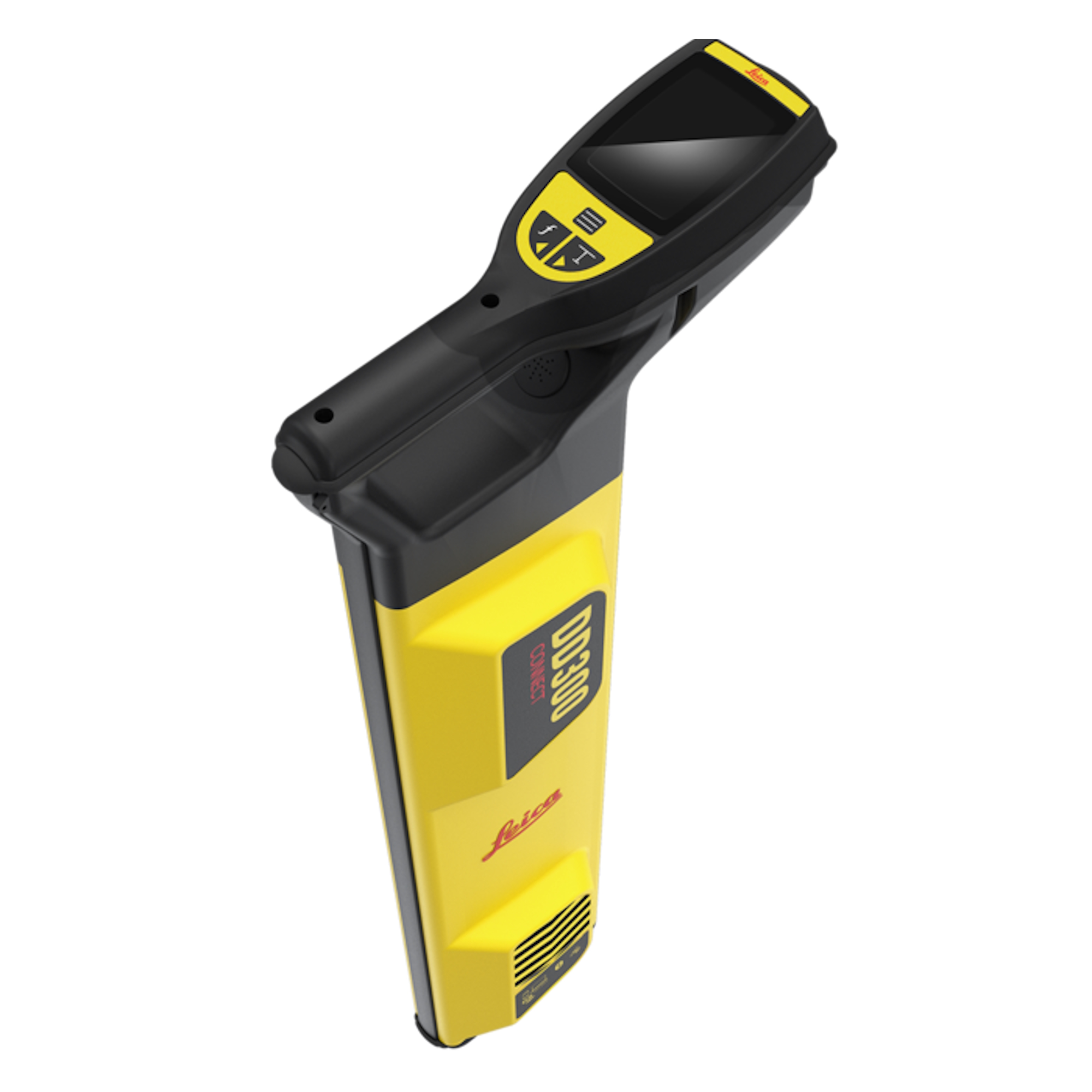

• DD300 Connect

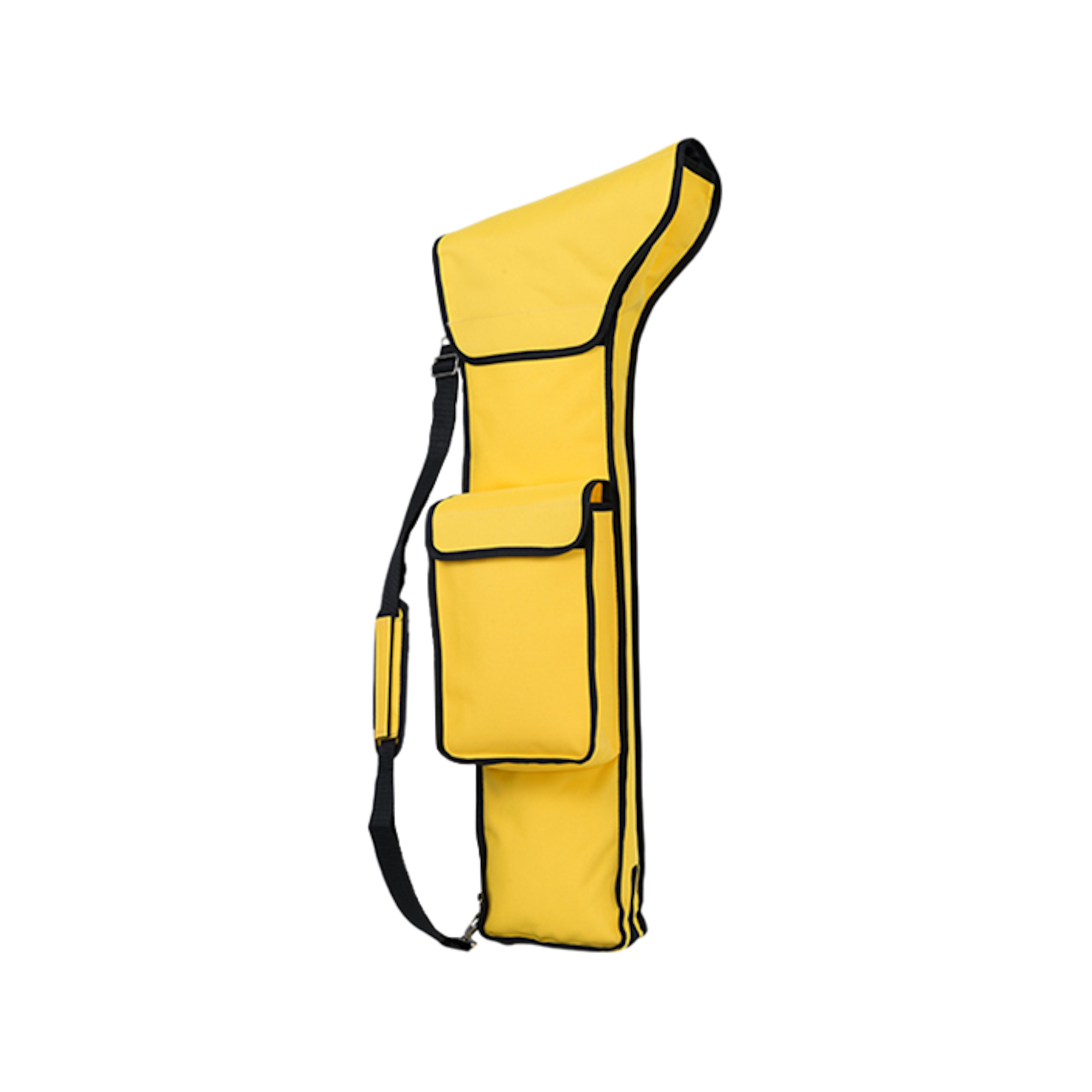

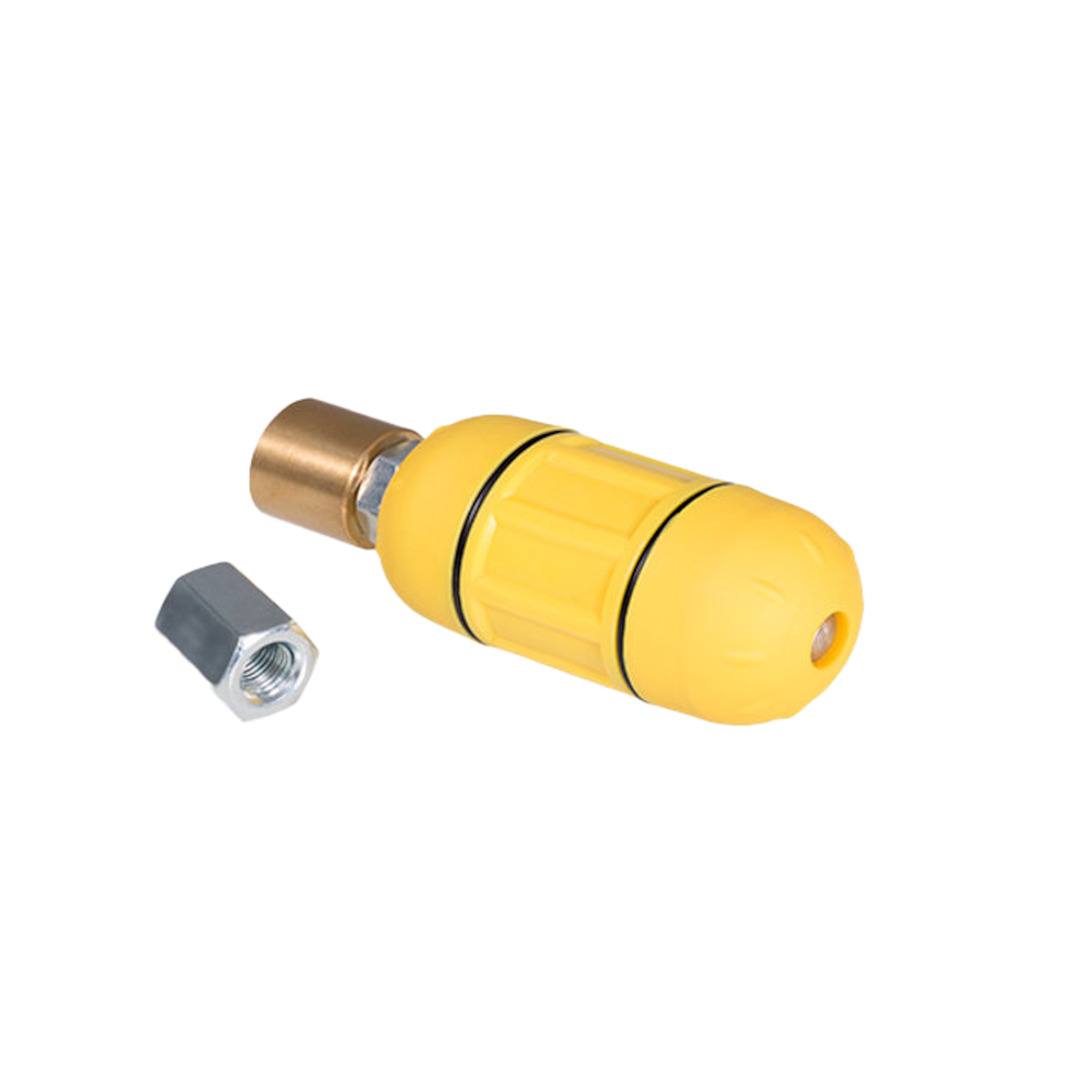

• Midi Sonde and Locator bag
• Includes alkaline batteries and manuals

• Power: 50 / 60 Hz mains electrical and harmonics
• Radio: 15kHz to 60kHz
• Auto: Power, Radio, 33kHz
• Transmitter Modes: 131.072 (131) kHz | 83.078 (83) kHz | 32.768 (33) kHz | 8.192 (8) kHz | 512 Hz | 640 Hz
• Depth Range: Line 0.1m to 7m | 4 inches to 23 feet | Sonde 0.1 to 10m | Sonde 4 inches to 32.8 feet
• Depth Accuracy*: 5%
• Bluetooth: Class 2 BLE dual mode module - Bluetooth Classic 2.1 | Bluetooth 4.0 (LE)
• GPS**:
  • Chipset (1): u-blox®GPS
  • Receiver Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
  • Accuracy (2): Horizontal Position 2.5 m Autonomous, 2.0 m SBAS,CEP
  • Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
• Memory Capacity: 8 GB internal memory
• Environmental Standard IP65
• Operating Temperature -20 °C to +50 °C | -4 °F to +122°F
• Battery 4 X LR20 Alkaline Battery - Li-Ion as Optional
• Battery operating time *** 10 h
• Dimensions (HxWxD) 765x290x93mm | 30.12 x11.42x3.66 inches
• Weight with batteries 2.86Kg | 6.3 lbs

*Depth to an undistorted signal

** (1) All data/information according to manufacturer u-blox®GPS; Leica Geosystems does not assume any liability whatsoever for such information.

(2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.

*** Constant use at 20°C/68°F
