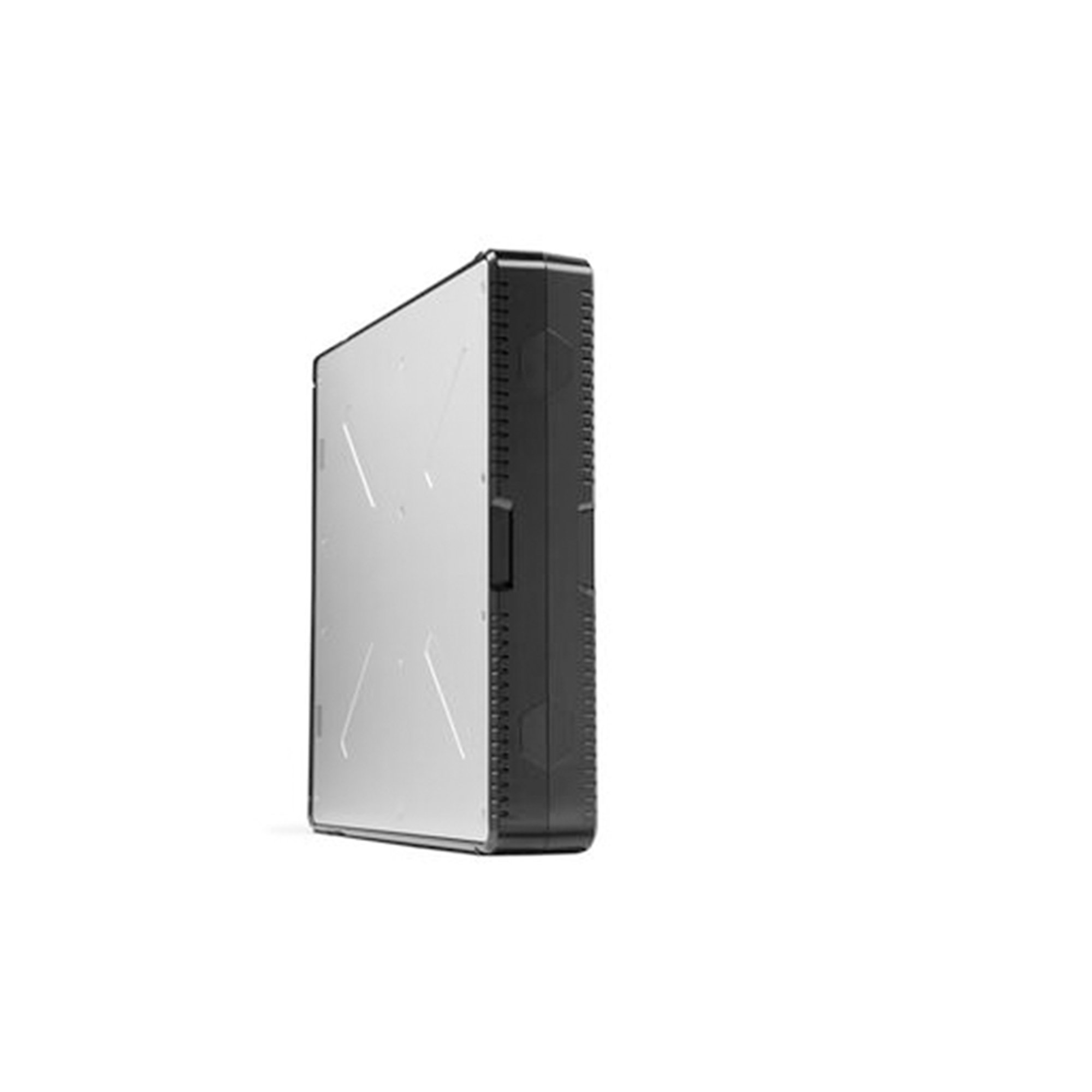

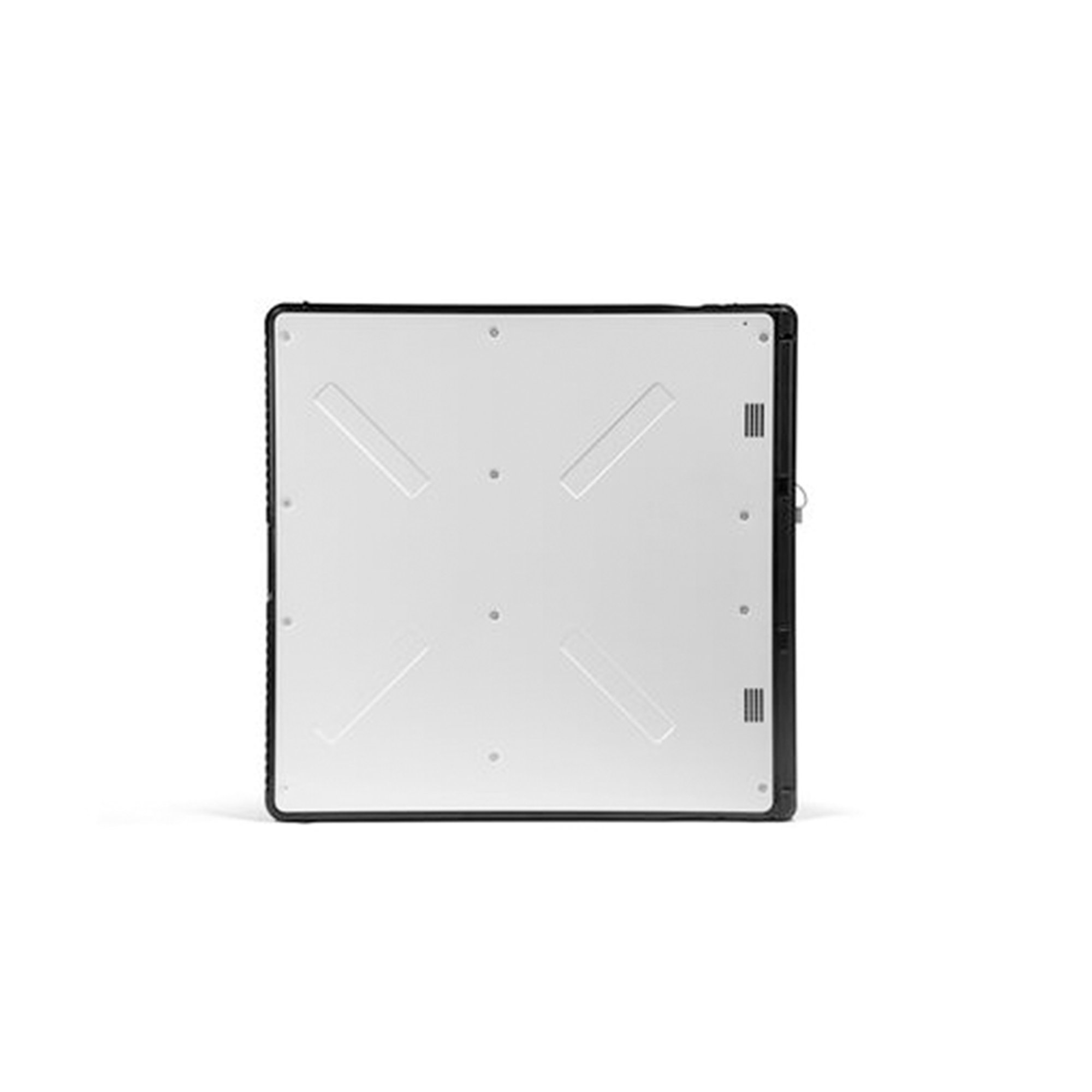

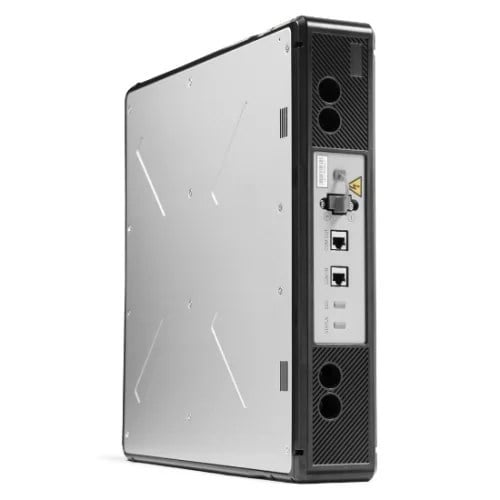

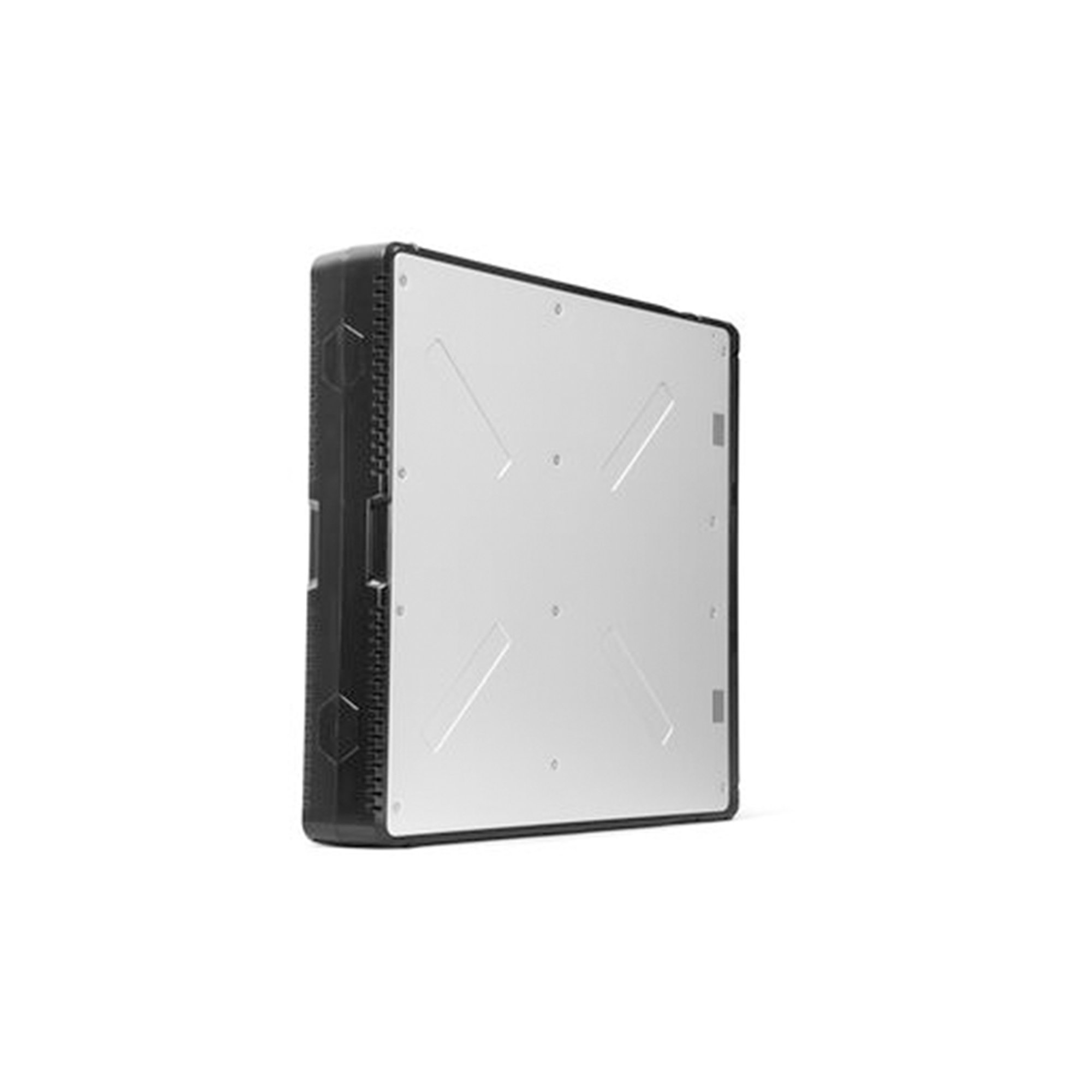

Generac 3.0 kWh PWRcell DCB Battery Module - 8004

Enhance your backup power solution with the Generac 3.0kWh DCB PWRcell Battery Module. Whether you need just a few modules or up to six, you can customize your battery capacity to perfectly match your power needs. This flexibility allows you to scale your system to support everything from essential home appliances to larger energy demands. Plus, if your power requirements grow over time, you can easily upgrade your PWRcell Battery by adding more DCB modules, ensuring that you’re always prepared with the power you need when you need it. Invest in a tailored and expandable backup system with Generac’s DCB Battery Modules for reliable, long-term performance.

• Suitable for indoor and outdoor use
• Modular: Stack the right number of battery modules for the application
• Upgradeable: Add more modules later when consumer needs change
• Easy to install: At just 55lbs, installers won’t need special equipment to move and install these batteries

• Nominal voltage: 46.8 VDC
• Usable capacity @ typical voltage: 3.00 kWh
• Maximum ambient operating temperature: 14 to 122 °F (-10 to 50 °C)
• Recommended ambient operating temperature: 41 to 104 °F (5 to 40 °C)
• Recommended storage temperature: 68 °F (20 °C)
• Scalability: 3-6 pcs in series
• Dimensions, L x w x h - in (mm): 17.3" x 17.7" x 3.3" (440 x 450 x 84)
• Weight - lb (kg): 55 (25)
• Warranty: 10 years or 7.56MWh Throughput (per module)


Note: Charge/discharge rate may be reduced at temperature extremes.

Click Here for Spec Sheet

*Spec sheet might include optional accessories not included with this purchase
