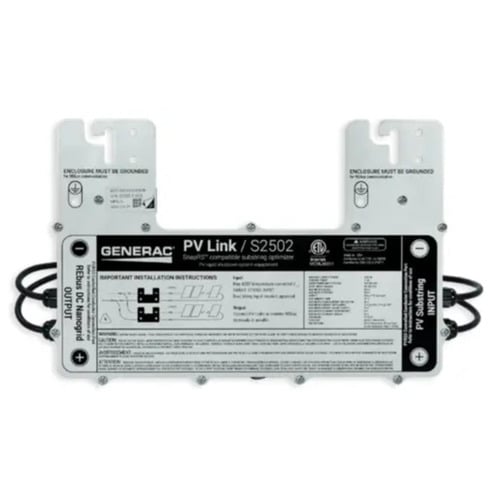

Generac PV Link - 2500W MPPT Optimizer - APKE00010

TheGenerac PV Link - 2500W MPPT Optimizer is a simple solar optimizer for quick installation and long-lasting performance. Connect PV modules to each PV Link to overcome shading and challenging roof lines

• Fast, simple installation
• Lower failure risk than module-level optimizers
• NEC 2017 rapid shutdown compliant with SnapRS™
• Quick connections with MC4 connectors
• Exports up to 2500W
• Compatible with PWRcell™ Inverters
• Cost-effective solution for high-performance PV
• Ground-fault protection

• Where PV module-level rapid shutdown is required (NEC 690.12), a SnapRS device (RS) is installed to negative (-) lead of each PV module

• Rated power*: 2500W
• Peak efficiency: 99%
• Mppt voltage range: 60-360 VMP
• Max input voltage: 420 VOC; max when cold
• Max output: 420 VOC
• NOMINAL OUTPUT (rebus™): 380 VDC
• Max output current (continuous): 8 A
• Max output current (fault): 10 A
• Max input current (continuous): 13 A @ 50°C, 10 A @ 70°C
• Max input short circuit current (isc): 18 A
• Standby power: < 1 W
• Protections: Ground-fault, Arc-fault (Arc-fault Type 1 AFCI, Integrated), PVRSE
• Max operating temp: fahrenheit (celsius): 158 ºF (70 ºC)
• System monitoring: PWRview™ Web Portal and Mobile App
• Enclosure: Type 3R
• Weight - lb (kg): 7.3 lb (3.3 kg)
• DIMENSIONS, L x W x H - IN (MM): 15.4" x 2" x 9.6" (391.2 x 50.8 x 243.8)
• Compliance: UL 1741, CSA 22.2
• Warranty: 25 Years


*PV Link can tolerate higher than rated power at its input if Max Input Voltage and Short Circuit Current specifications are not exceeded.

Click Here for Spec Sheet

*Spec sheet might include optional accessories not included with this purchase
