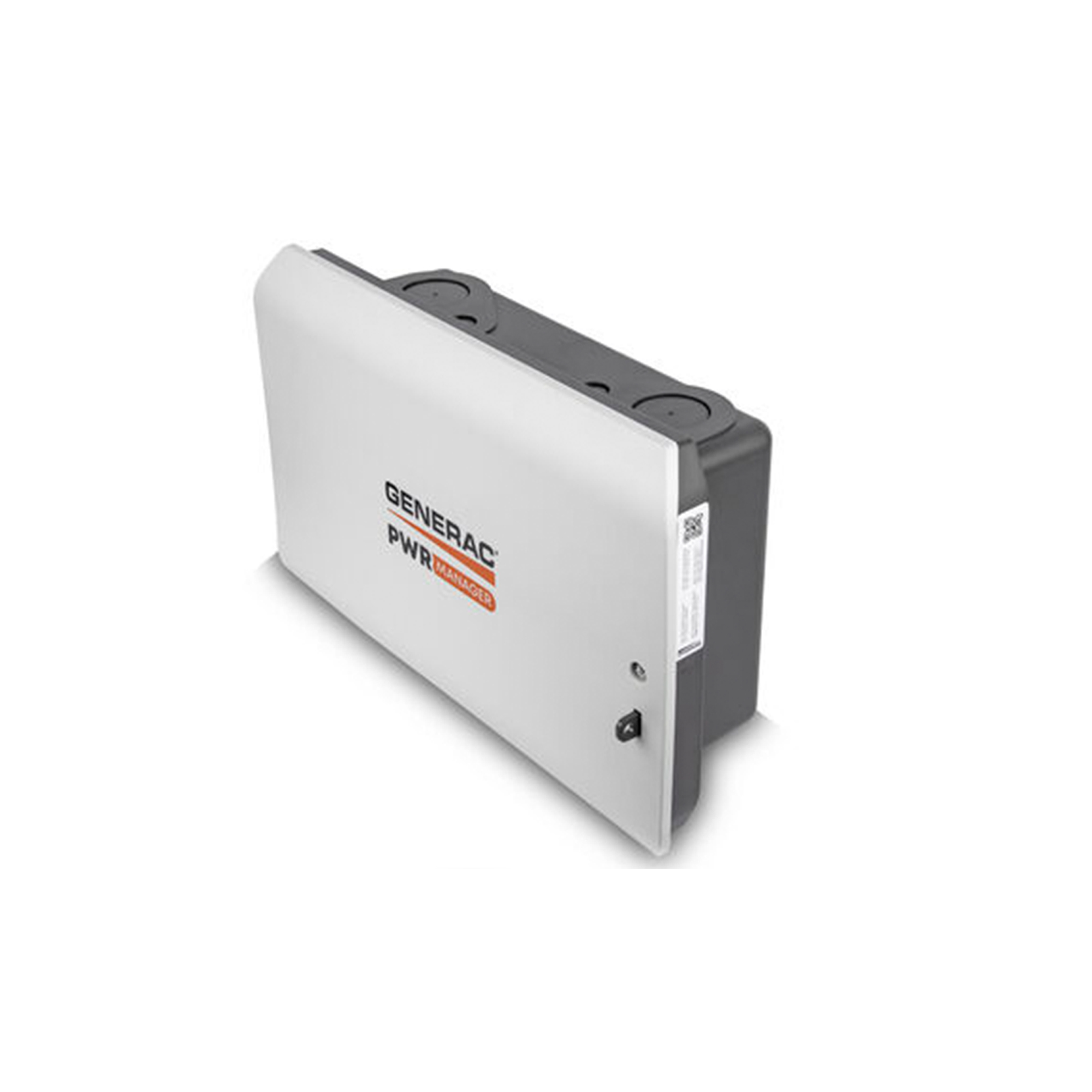

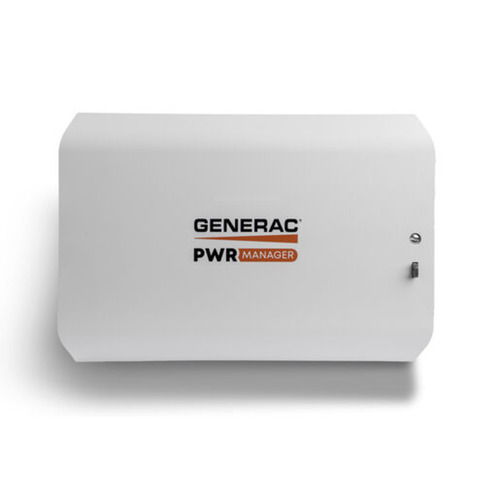

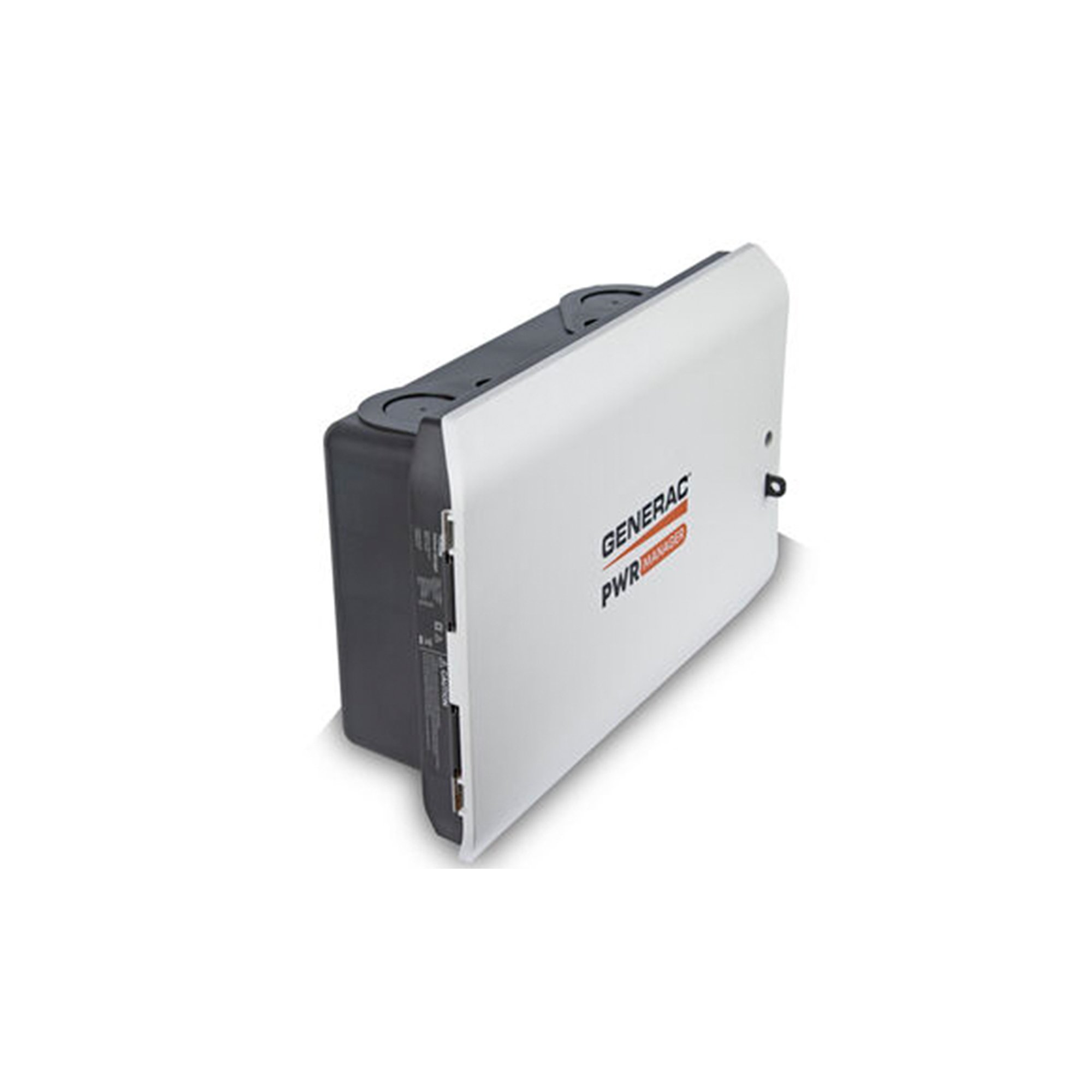

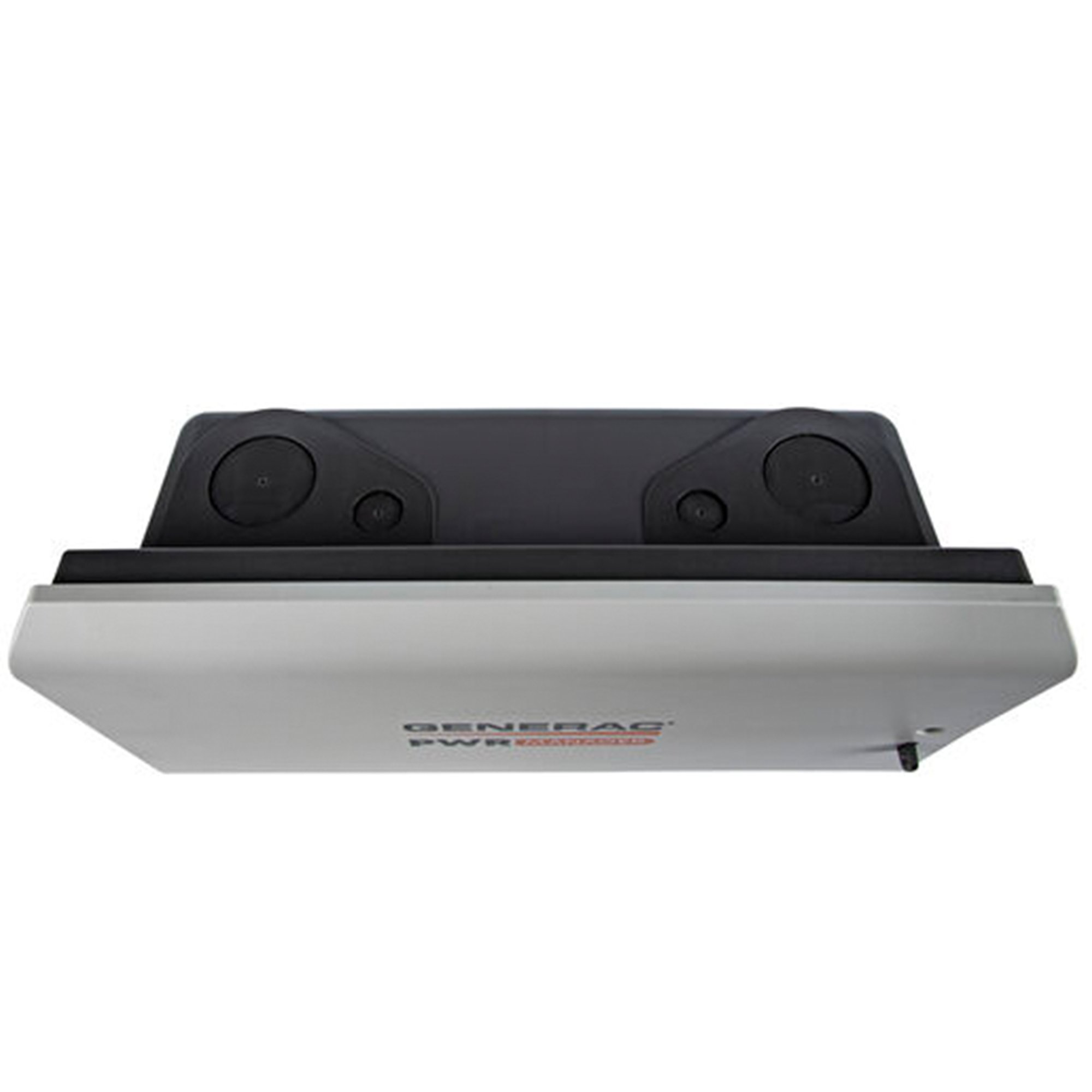

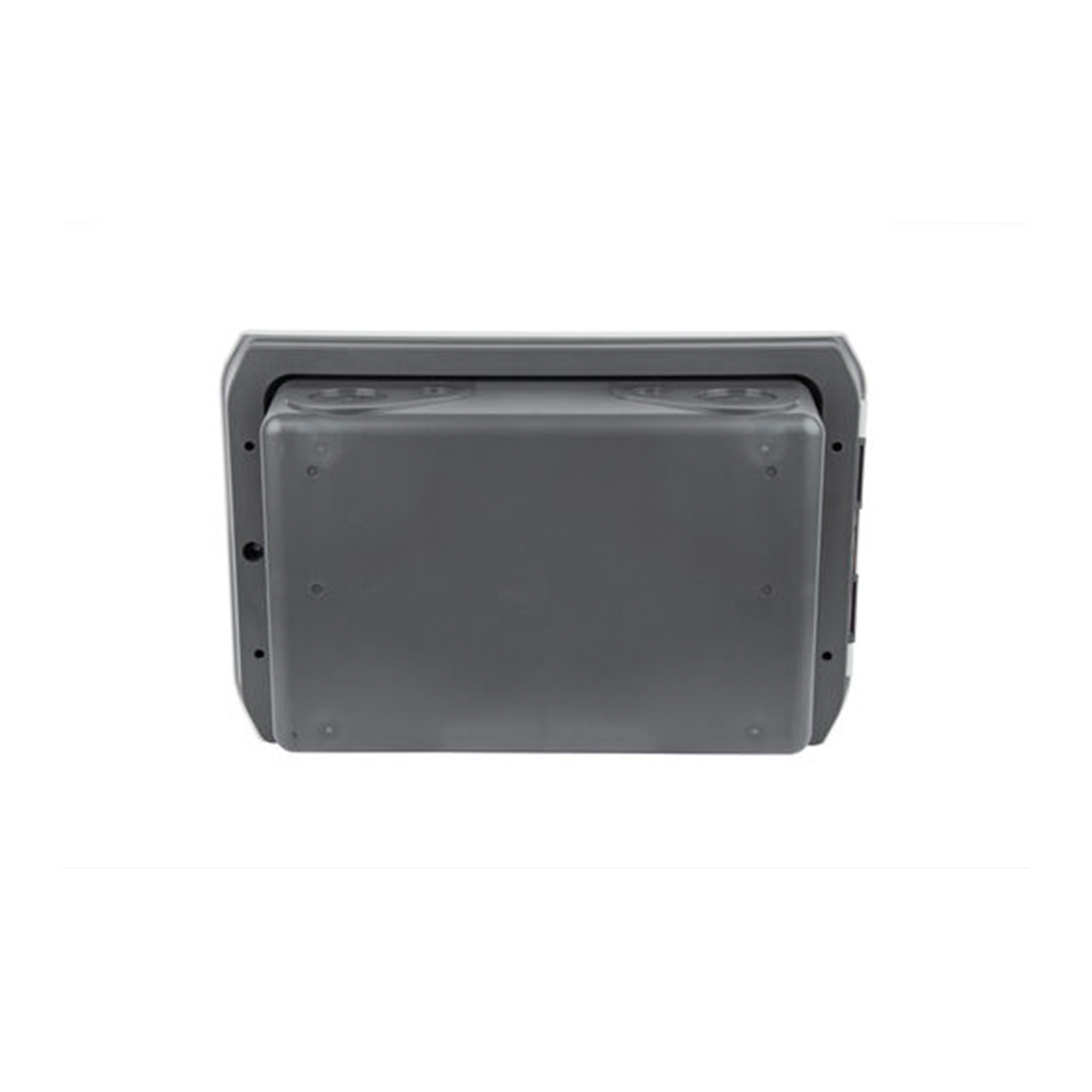

Generac PWRmanager Energy Management Module - 8009

Enhance the versatility and worth of the PWRcell System with whole-home backup capabilities, managed through the intuitive PWRview app. The PWR manager optimizes energy use with data-driven control, extending battery life. This straightforward, plug-and-play load management tool integrates effortlessly with PWRcell, significantly boosting system efficiency.

• Enhances PWRcell whole home backup
• Flexibility and reliability during outages
• Turn home loads on and off on-the-fly with PWRview app

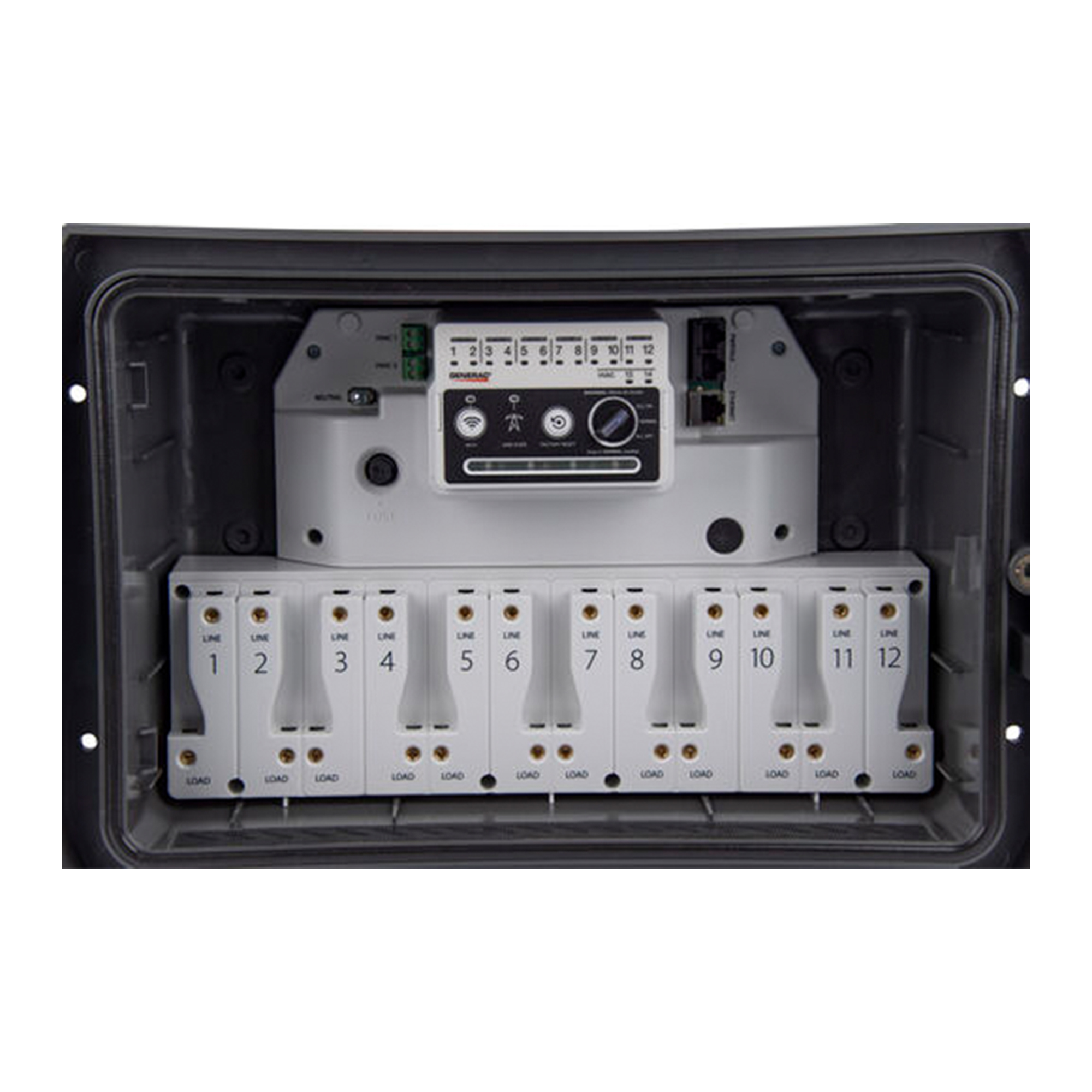

• Control up to twelve 120 V circuits or six 240 V circuits + two thermostats
• Easy to install: no need for a new load panel

• No. Of 120 v Relays: 12
• Hvac Relays: 2
• Current Rating: 60 amps per relay
• Connections: Wifi, ethernet
• Dimensions, L x W x H - in (mm): 17.7" x 12.2" x 5.5" (449.58 x 309.88 x 139.7)
• Weight - lb (kg): 13.23 (5.2)
• Compliance: UL-916, FCC Part 15 Class B, IC, Surge IEC 61000-4-5
• Enclosure: Nema 3R
• Wire gauge: #14 to #6 AWG
• Operating temperature: -40°F to + 122°F (-40°C to + 50°C)
• Warranty: 10 year limited

Click Here for Spec Sheet

*Spec sheet might include optional accessories not included with this purchase
