Pro Shot Laser - Alpha C Self-Leveling Laser Level - (2 Options Available)

• 020-0020C: Alpha C Self-Leveling Laser Level w/ R9 Receiver, Clamp, Case
• 020-0020CH: Alpha C Self-Leveling Laser Level High Res w/ R9 Receiver, Clamp, Case

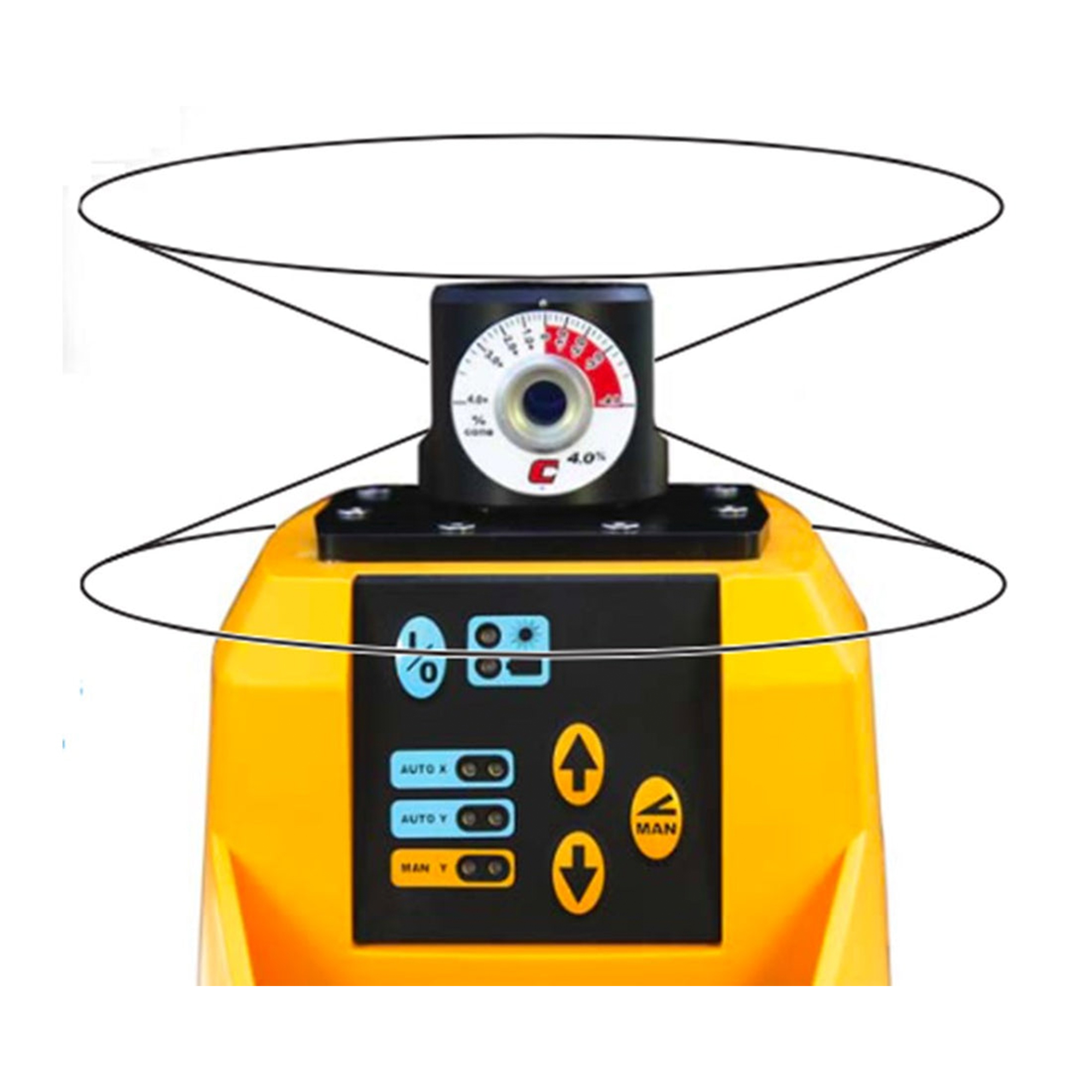

The Pro Shot Alpha-C laser level combines the robust durability and high performance of the standard Alpha model with a custom precision cone rotor head. Each Alpha-C is meticulously hand-built, tested, and calibrated by our engineering team to meet industry-leading standards. This adjustable cone projecting head allows for setup with the laser at either the high or low point to project a conical sloping reference of laser light. The Alpha-C can project a cone with slopes of up to 4%, either upward or downward, in 1/4% increments. The Alpha-C HI-RES version offers a sloped cone reference of up to 1.7%, with enhanced resolution down to 1/10%. This laser is ideal for applications such as baseball fields, running track corners, and containment areas around storage tanks, and can also function as a precise laser level.

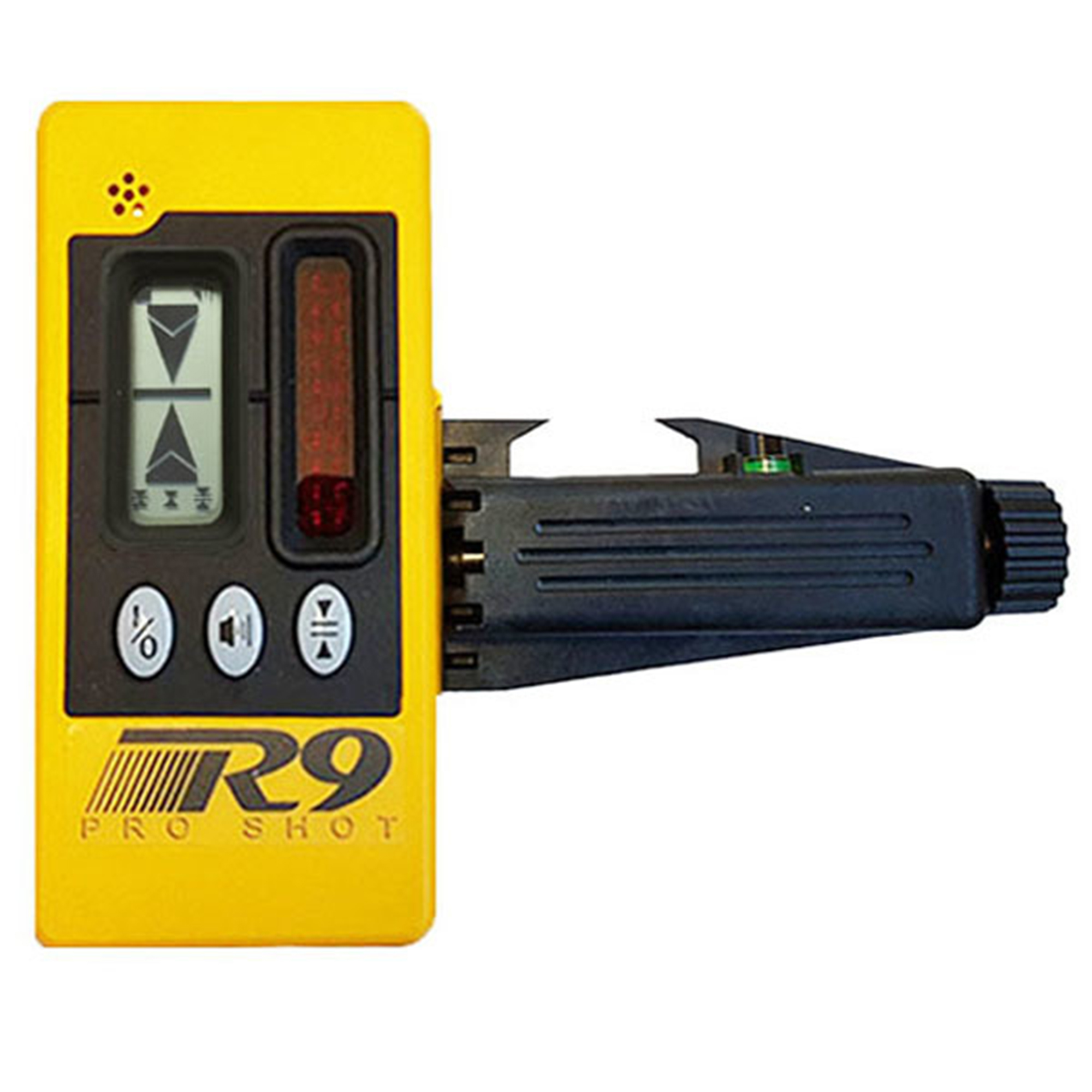

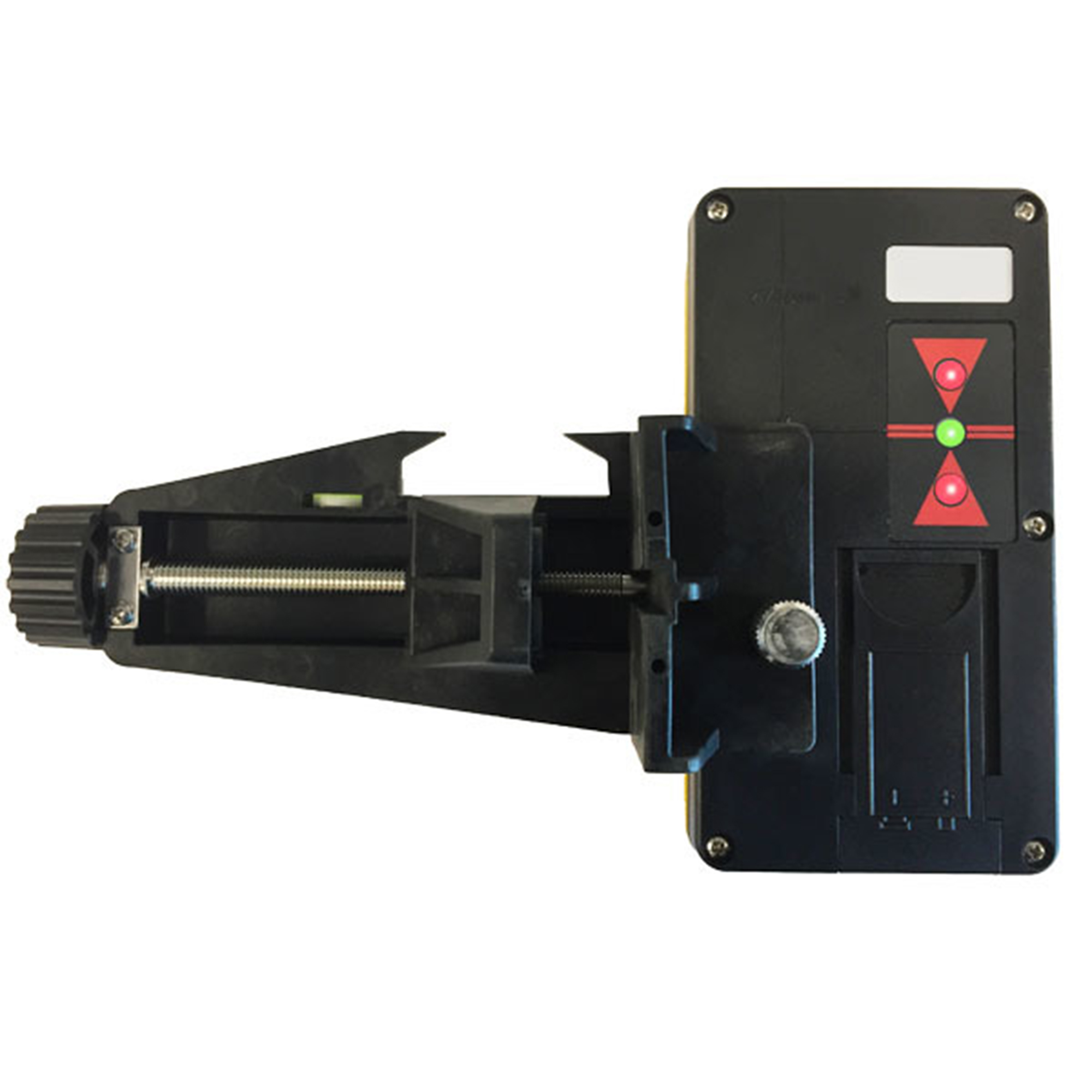

The Pro Shot R9 receiver is an affordable, durable laser detector by Laser Reference in California, USA. It features a dual-sided display with LED lights on the back and a 5-channel LCD height display on the front.

• Excellent for baseball fields
• Running tracks and their infield “D” zones
• Storage tank collection areas

• Range with R9 Receiver: 2000' dia., 1000' rad . (610m/305m)
• Horizontal Accuracy: ± 10 arc sec. (±1/16 per 100') (±1.5 mm per 30m)
• Cone Slope Capability: ± 4%, 1/4 % Increments
• High Resolution Version: ± 1.7%, 1/10 % Increments
• Leveling Technology Range: Servo Motor Self Leveling • ±5°
• Height Alert: Normally active, can be disabled
• Slope Matching Range Single Axis: 8%
• Rotation Coverage/ Speed: 360° • 500 rpm
• Machine Control Compatible: Yes
• Warranty: 8 Year Warranty
• Rechargeable Parts: Optional NiMh kit @ 48 hours
• Power source • Life: Four C- cells @ 75 hours (alkaline)
• Laser Beam Type: Visible 650nm
• Alpha Laser Classification: CDRH class IIIa, IEC class 2
• Dust and Water Sealed: To international standard IP56
• Operating Temperature: -4° F to +140° F (-20° C to +60° C)

• Reception Height: 50mm
• Reception Angle: 120 degrees
• Standard Mode accuracy: +-1.6mm
• Coarse Mode Accuracy:+-3.2mm
• Ultra-fine Mode Accuracy: +-1mm
• Power Supply: 9 Volt Battery
• Battery Life: 60 Hours (alkaline)
• Automatic Shut Off: After 12 Mins (no laser strikes)
• Environmental: Sealed against dust and water
• Adjustable Tone Volume: High/Low/Off

Click Here for Alpha C Owners Manual

Click Here for R9 Receiver Owners Manual
