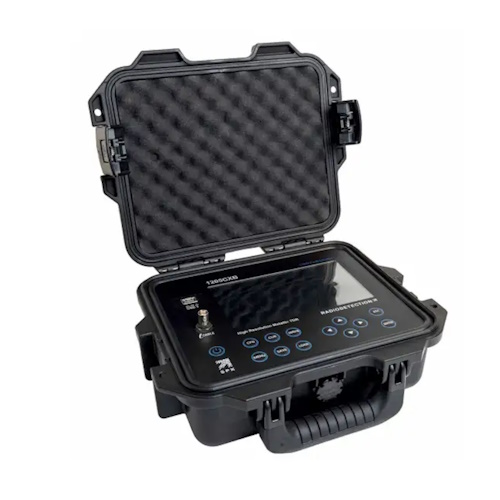

Schonstedt 1205CXB TDR Cable Analyzer and Fault Finder

Model Number: 10/1205CXB-US

The Schonstedt 1205CXB Cable Analyzer TDR is a powerful and versatile tool for testing and troubleshooting copper cables in any network. The 1205CXB uses a high-resolution color display and intuitive on-screen controls to show you the cable condition and fault location in real time and is one of the easiest to use instruments in the industry.

Features:
  • Easy to use. All TDR functions available at the top level, no additional screens or menus to search through.
  • Ultra-clean, low noise signals. Spot cable issues clearly without having to hunt through the noise.
  • Automatic scanning. Let the 1205CXB find the faults for you. You can set the threshold of the seriousness of the problem for the 1205CXB to find.
  • Automatic and manual cursor placement functions. Two independent cursors: the distance between cursors is automatically calculated as their placement changes – giving straightforward positioning of problems
  • Automatic dBRL calculation. Eliminates the need to calculate impedance changes in a cable visually and/or manually, saving you time finding the most serious faults.
  • Multipurpose USB Port
  • WaveView™ PC software
    • Examine and interpret on-site waveforms in unprecedented detail
    • Generate reports for your client and office
    • Pan and zoom to scrutinize every detail of the waveform to pinpoint and diagnose cable faults
    • Add notes, assess Return Loss (dBRL) figures and even correct mistakes such as VOP errors made on site
Specifications
  • Distance Accuracy: ± 0.1 ft (0.03 m) plus ± .01% of reading. Accuracy will vary with cable VOP and cable type.
  • Horizontal Resolution: Up to 2,000 ft (610 m): <0.05 ft (.03 m) at .990 VOP; <0.02 ft (.01 m) at .300 VOP. Over 2,000 ft (610 m): 1 ft. (.1 m) at any VOP
  • Maximum Ranges: 63,700 feet (19,400 meters) at 99.0% VOP; 51,500 feet (15,500 meters) at 80.0% VOP. Ranges varies with VOP. Maximum testable cable length varies with pulse width and cable type.
  • Physical Dimensions:
    • Width: 10.5 inches (267 mm)
    • Height: 9.75 inches (247.6 mm)
    • Depth: 5 inches (127 mm)
    • Weight: 6 pounds (2.7 kg)
  • MPN: 10/1205CXB-US
  • UPC:
