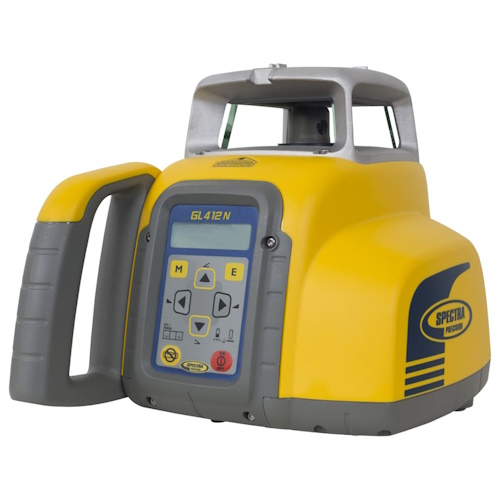

Spectra Precision GL412N Base Unit w/ 10 Ah NiMH Rechargeable Batteries and No Receiver, Small Case

Model Number: GL412N-BCC

Features:
  • The Spectra Precision GL412N Base Unit w/ 10 Ah NiMH Rechargeable Batteries and No Receiver, Small Case is a complete single grade laser system that provides accurate and reliable leveling, grading, and vertical alignment for a variety of construction applications.
  • Automatic horizontal and vertical self-leveling
  • Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
  • Working range of 800 m (2,600 ft) diameter
  • Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
  • "Fingerprint" function of the HL760 DRO receiver only accepts the beam from the laser it is paired with
  • Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
  • Long range RC402N Radio remote control
  • Selection of Sensitivity - accurate even in high winds or on high vibration job sites
  • Extremely durable and portable
  • 5 Year warranty
Applications:
  • Leveling concrete forms and footers
  • General construction vertical alignment and plumb such as anchor bolt and form alignment
  • Sports fields, tennis courts and driveways
  • Grading and excavating
  • Steep slope road embankments and ditch banks
  • Ramps and drainage
Specifications:


    GL412N/GL422N Specifications
  • Leveling accuracy1,3: ± 1.5 mm/30 m, 1/16" @ 100 ft, 10 arc seconds
  • Operating diameter1,2: appr. 800 m (2600 feet)
  • Grade range:
    • -10% to +15% (Dual Axes GL422N)
    • -10% to +15% (Single Axis GL412N)
  • Rotation: 300, 600 rpm
  • Laser type: red diode laser 650 nm
  • Laser class : Class 2, <3.4 mW
  • Self-leveling range: ± 5° (±9%)
  • Leveling indicators: LCD indications and LED flashes
  • Radio range (HL760): up to 100 m (330 ft)
  • Power source: 10.000 mAh NiMH battery pack
  • Battery life1: 35 hours NiMH; 50 hours alkaline
  • Operating temp.: -20°C to 50°C (-4°F to 122°F)
  • Storage temp.: -20°C to 70°C (-4°F to 158°F)
  • Tripod attachments: 5/8 x 11 horizontally and vertically
  • Dust and waterproof: Yes - IP66
  • Weight: 3.1 kg (6.8 lbs)
  • Low voltage indication: LCD battery indicator
  • Low voltage disconnection: unit shuts off
  • Warranty: 5 Years
  • MPN: GL412N-BCC
  • UPC: 692284013670
