Spectra Precision GL412N Single Grade Laser, CR700, C70, C71, RC402N, 10 Ah NiMH Batteries and Charger, Small Carrying Case - GL412N-14

Product Code: ET16616
Spectra Precision GL412N Single Grade Laser, CR700, C70, C71, RC402N, 10 Ah NiMH Batteries and Charger, Small Carrying Case - GL412N-14
Spectra Precision GL412N Single Grade Laser, CR700, C70, C71, RC402N, 10 Ah NiMH Batteries and Charger, Small Carrying Case - GL412N-14
Condition: New
  • Usually ships off dock within:2 to 4 Business Days
Your Price $2,400.99
(You Save 13%)
List Price $2,770.00

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help

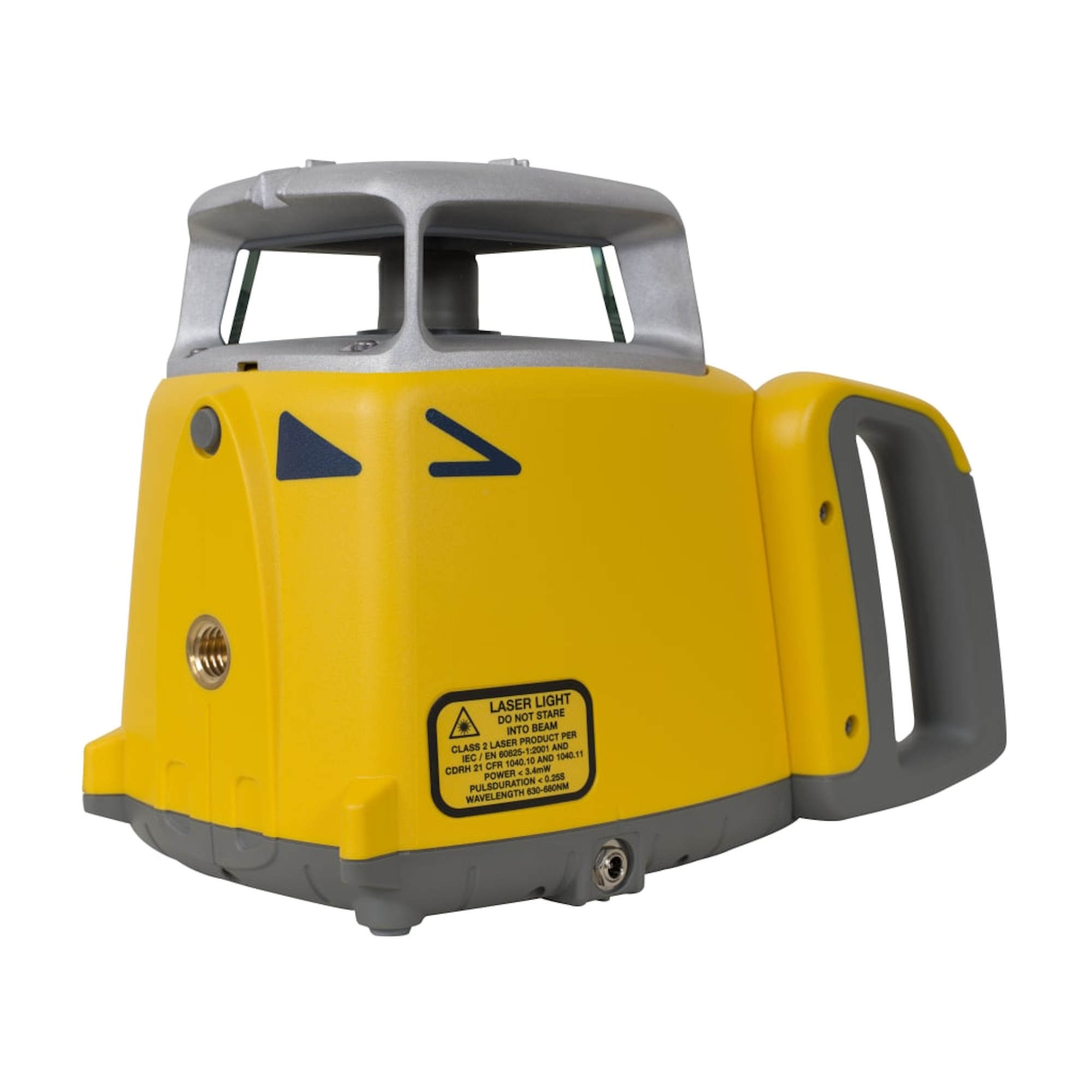

Spectra Precision GL412N Single Grade Laser, CR700, C70, C71, RC402N, 10 Ah NiMH Batteries and Charger, Small Carrying Case

Model Number: GL412N-14

Features:
  • The Spectra Precision GL412N Single Grade Laser, CR700, C70, C71, RC402N, 10 Ah NiMH Batteries and Charger, Small Carrying Case is a complete single grade laser system that provides accurate and reliable leveling, grading, and vertical alignment for a variety of construction applications.
  • Automatic horizontal and vertical self-leveling
  • Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
  • Working range of 800 m (2,600 ft) diameter
  • Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
  • "Fingerprint" function of the HL760 DRO receiver only accepts the beam from the laser it is paired with
  • Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
  • Long range RC402N Radio remote control
  • Selection of Sensitivity - accurate even in high winds or on high vibration job sites
  • Extremely durable and portable
  • 5 Year warranty
Applications:
  • Leveling concrete forms and footers
  • General construction vertical alignment and plumb such as anchor bolt and form alignment
  • Sports fields, tennis courts and driveways
  • Grading and excavating
  • Steep slope road embankments and ditch banks
  • Ramps and drainage
Specifications:


    GL412N/GL422N Specifications
  • Leveling accuracy1,3: ± 1.5 mm/30 m, 1/16" @ 100 ft, 10 arc seconds
  • Operating diameter1,2: appr. 800 m (2600 feet)
  • Grade range:
    • -10% to +15% (Dual Axes GL422N)
    • -10% to +15% (Single Axis GL412N)
  • Rotation: 300, 600 rpm
  • Laser type: red diode laser 650 nm
  • Laser class : Class 2, <3.4 mW
  • Self-leveling range: ± 5° (±9%)
  • Leveling indicators: LCD indications and LED flashes
  • Radio range (HL760): up to 100 m (330 ft)
  • Power source: 10.000 mAh NiMH battery pack
  • Battery life1: 35 hours NiMH; 50 hours alkaline
  • Operating temp.: -20°C to 50°C (-4°F to 122°F)
  • Storage temp.: -20°C to 70°C (-4°F to 158°F)
  • Tripod attachments: 5/8 x 11 horizontally and vertically
  • Dust and waterproof: Yes - IP66
  • Weight: 3.1 kg (6.8 lbs)
  • Low voltage indication: LCD battery indicator
  • Low voltage disconnection: unit shuts off
  • Warranty: 5 Years
RC402N Remote Control Specifications
  • Operating range1,3: up to 100 m (330 ft)
  • Power source: 2 x 1.5V AA alkaline batteries
  • Battery life1: 130 hours
  • Dust and waterproof: Yes - IP66
  • Weight: 0.26 kg (0.57 lbs)
(1) at 21° Celsius (70° F)
(2) under optimal atmospheric circumstances
(3) along the axis
  • MPN: GL412N-14
  • UPC: 692284011515
