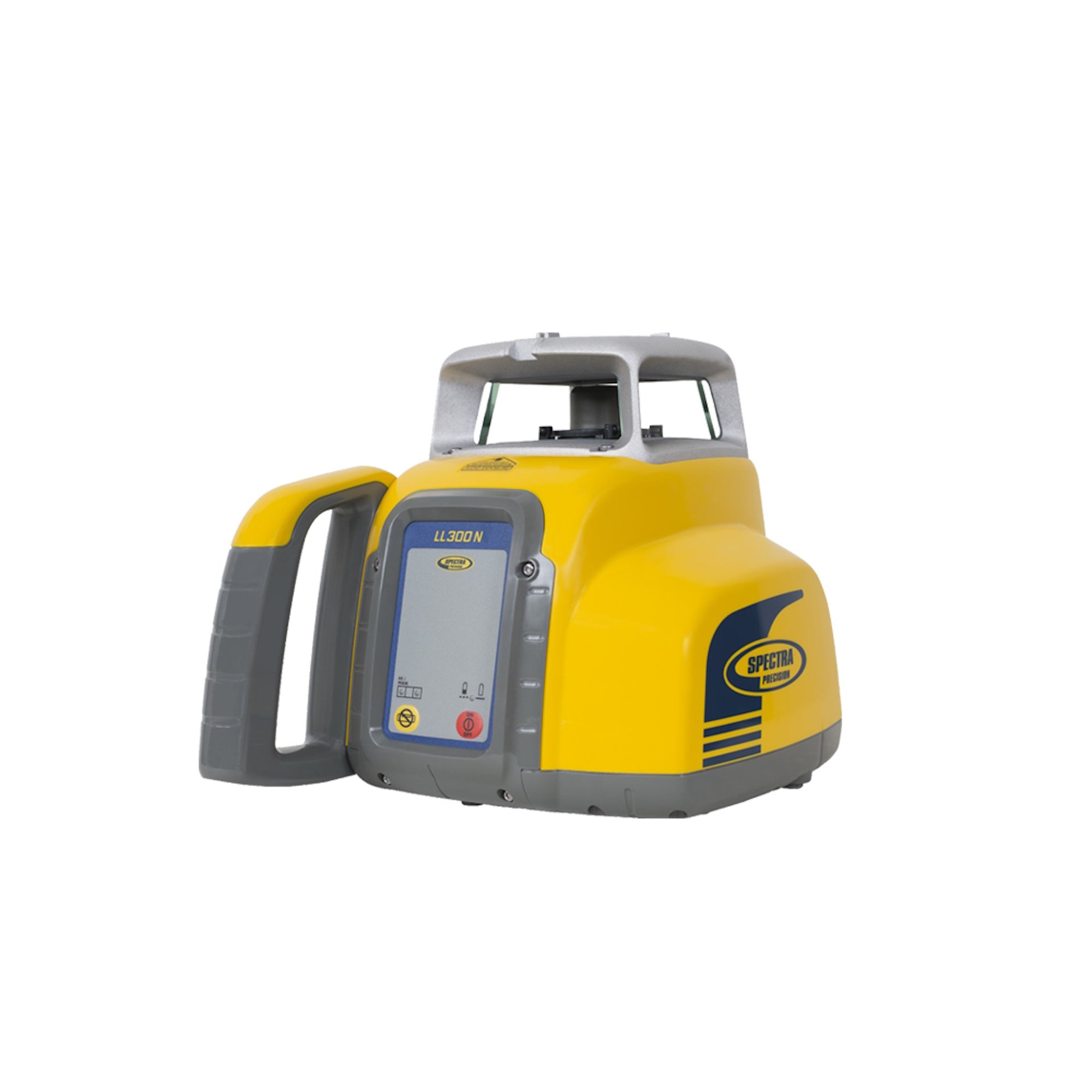

Spectra Precision LL300N-3 Laser Level Kit

Model Number: LL300N-3

Features:

LL300N Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66).

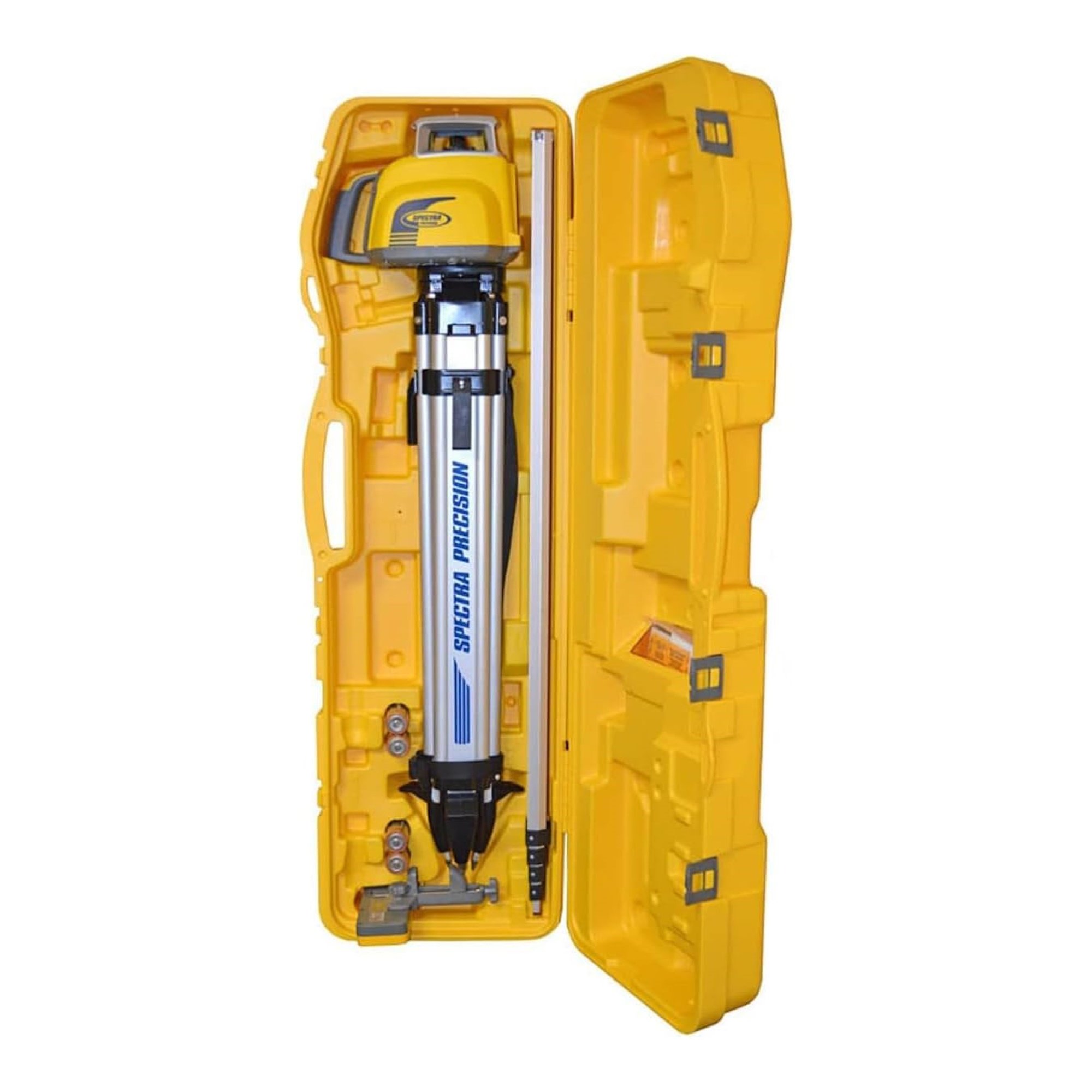

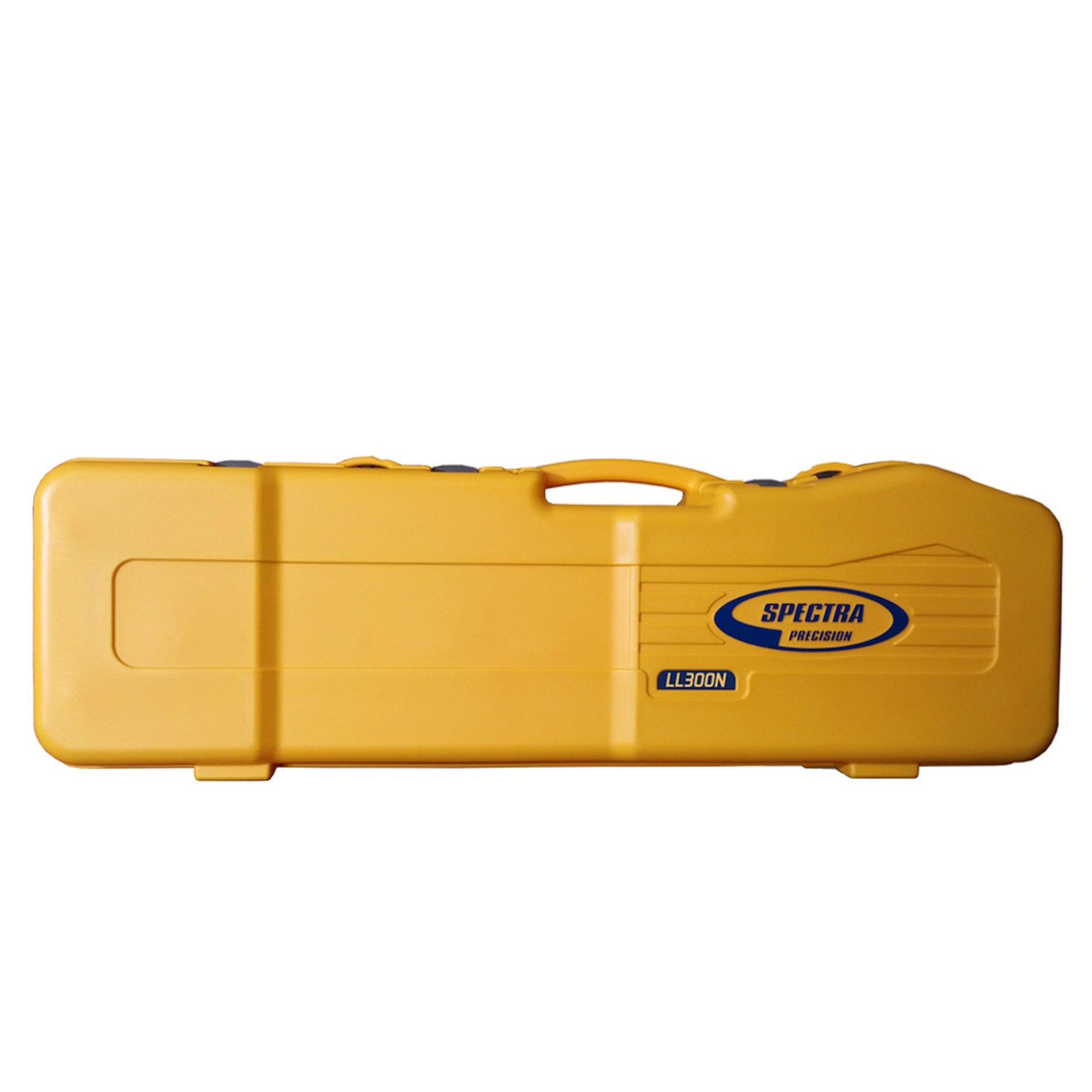

Available with a choice of system case (with receiver, tripod and choice of grade rod) or small carry case with receiver and clamp.
Fully automatic self-leveling provides fast and accurate setup
Rechargeable battery pack or alkaline batteries keeps the unit working with no downtime due to power loss
Optional RC601 remote control allows easy grade matching using the remote control from rod position
1650 ft (500 m) operating diameter
Single-axis manual slope mode with ‘cross-axis’ self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis
Built to withstand severe drops of up to 3 ft (1 m) directly onto concrete, or up to 5 ft (1.5 m) when pushed over on a tripod means less downtime and cost due to damage caused by an accidental drop or tip-over
Comes with a choice of HL450 or HR320 receivers allowing you to choose the best option to suit your application

Applications:

Checking/setting elevations, concrete forms, footings, and foundations for small and medium sized jobs
Basic slope work such as driveways and ramps
Excavating, digging footings, and septic tanks

Specifications:

LL300N

Laser Source: 650 nm, Class 2, <3,4mW
Laser Accuracy: ±3/32 in at 100 ft (±2.2 mm at 30 m)
Operating Range: 1,650 ft (500 m) diameter
Self-leveling Range: ±5 degrees electronic servo self-leveling
Compensation Method: Electronic self-leveling
Drop Height on Concrete Performance: 3 ft (1 m)
Single Axis Manual Slope Mode: Yes (w/self-leveling mode on the second axis), with optional RC601 remote control
Out-of-level Warning: Rotor stops, red out-of-level HI-LED flashes
Power Source: 4 x D-cell NiMH or alkaline batteries
Battery Life: Rechargeable - NiMH - 45 hours, Alkaline - 90 hours
Battery Status LED: Flashing red LED
Rotation Speed: 600 RPM
Tripod Mount (Horizontal and Vertical): 5/8” x 11
Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
Storage Temperature: -4 °F to 158 °F (-20 °C to 70 °C)
Water Resistant: Yes, IP66
Size: 10.7L × 7.7W × 7.9H in (27.2L × 19.7W × 20.1H cm)
Weight: 5.9 lbs (2,7 kg)
Warranty: 5 Years

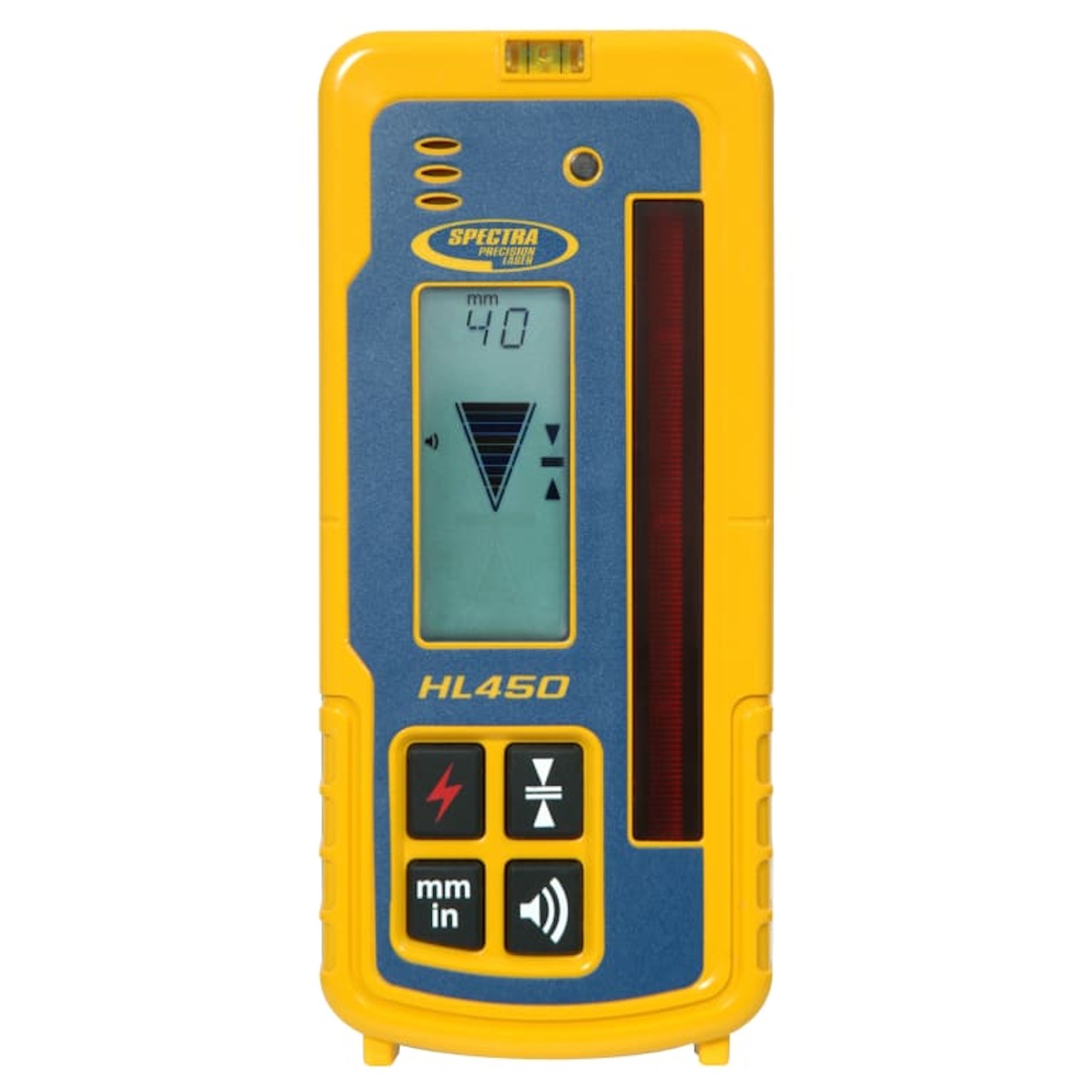

HL450 Receiver

Digital Readout Units: mm, ft, in, frac
Reception Height: 4 inches (102 mm)
Three On-grade Sensitivities: Fine ~1/16 in (1 mm) / Medium ~1/4 in (5 mm) / Calibration Mode ~1/64 in (0.1 mm)
Battery Life (2 x AA): 70+ hrs
Automatic Shutoff: 30 minutes
Operating Temp.: -4°F to 122°F (-20°C to 50°C)
Dust & Waterproof: Yes IP67
Weight without Clamp: 13.1 oz (0.371 kg)
Warranty: 3 Years, 2 Years “No Excuses”

Includes:
