Tomahawk - 3.6HP Honda Vibratory Rammer Jumping Jack Tamper with Honda GXR120 Engine Impact Force 3,550 - (2 Options Available)

Product Code: ET17371

Condition: New

Usually ships off dock within:2 to 4 Business Days
Ships By Truck: (IMPORTANT - PLEASE READ)

Your Price

$3,299.99

Qty

Accepted Payment Types

Easy Financing Available
as low as $55/mo
for 60 months. Details

Free Shipping

Ship By Truck

Liftgate Truck Requested		*
Select Option		*

Email This Product To A Friend

View More Of This Brand

Factory Authorized Dealer

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

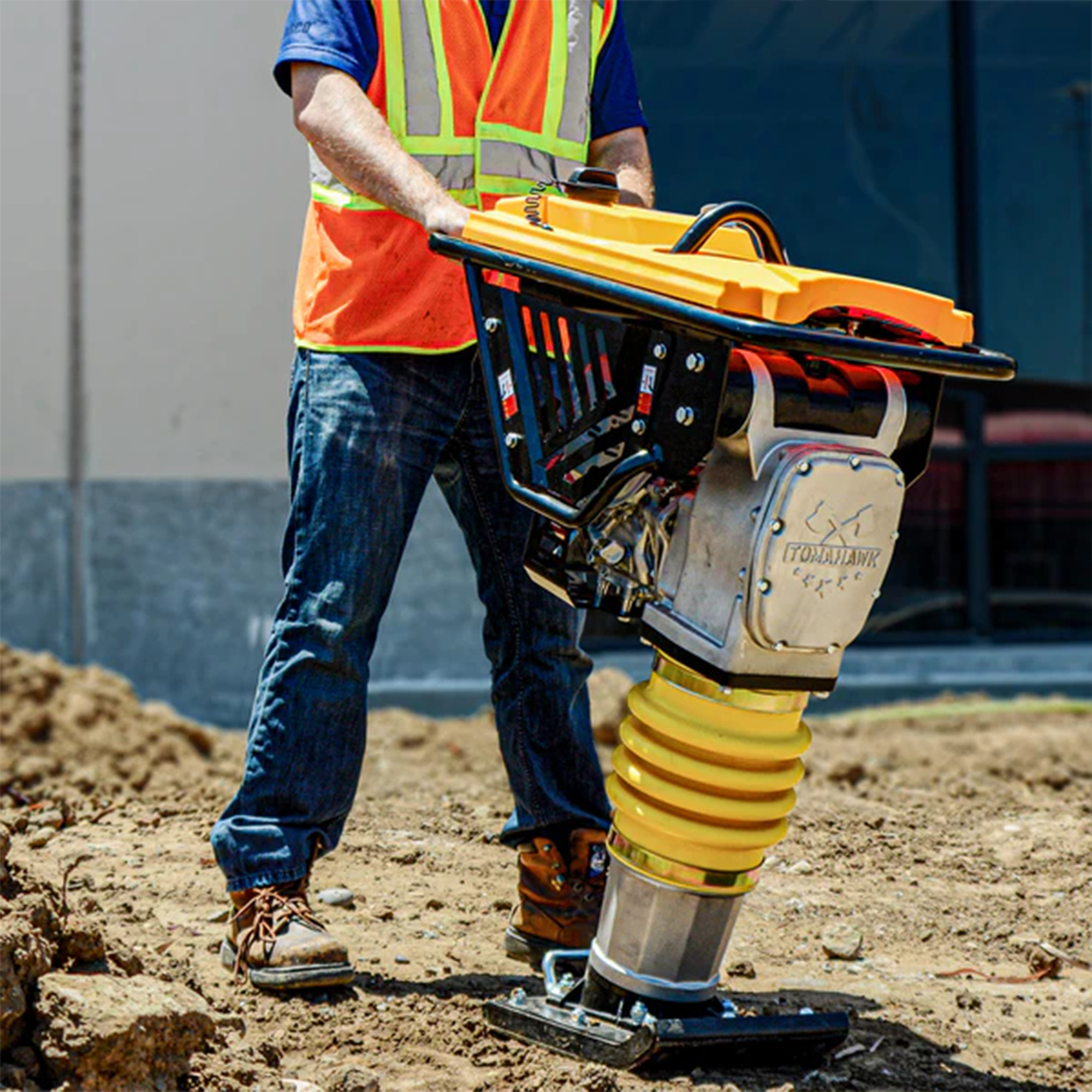

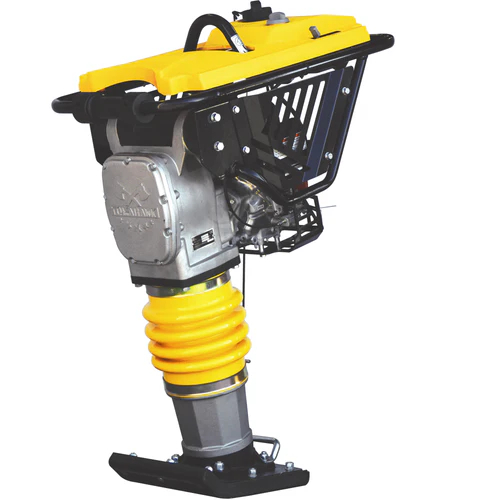

Tomahawk - 3.6HP Honda Vibratory Rammer Jumping Jack Tamper with Honda GXR120 Engine Impact Force 3,550

Available Options:

TR68H: Base Model Only

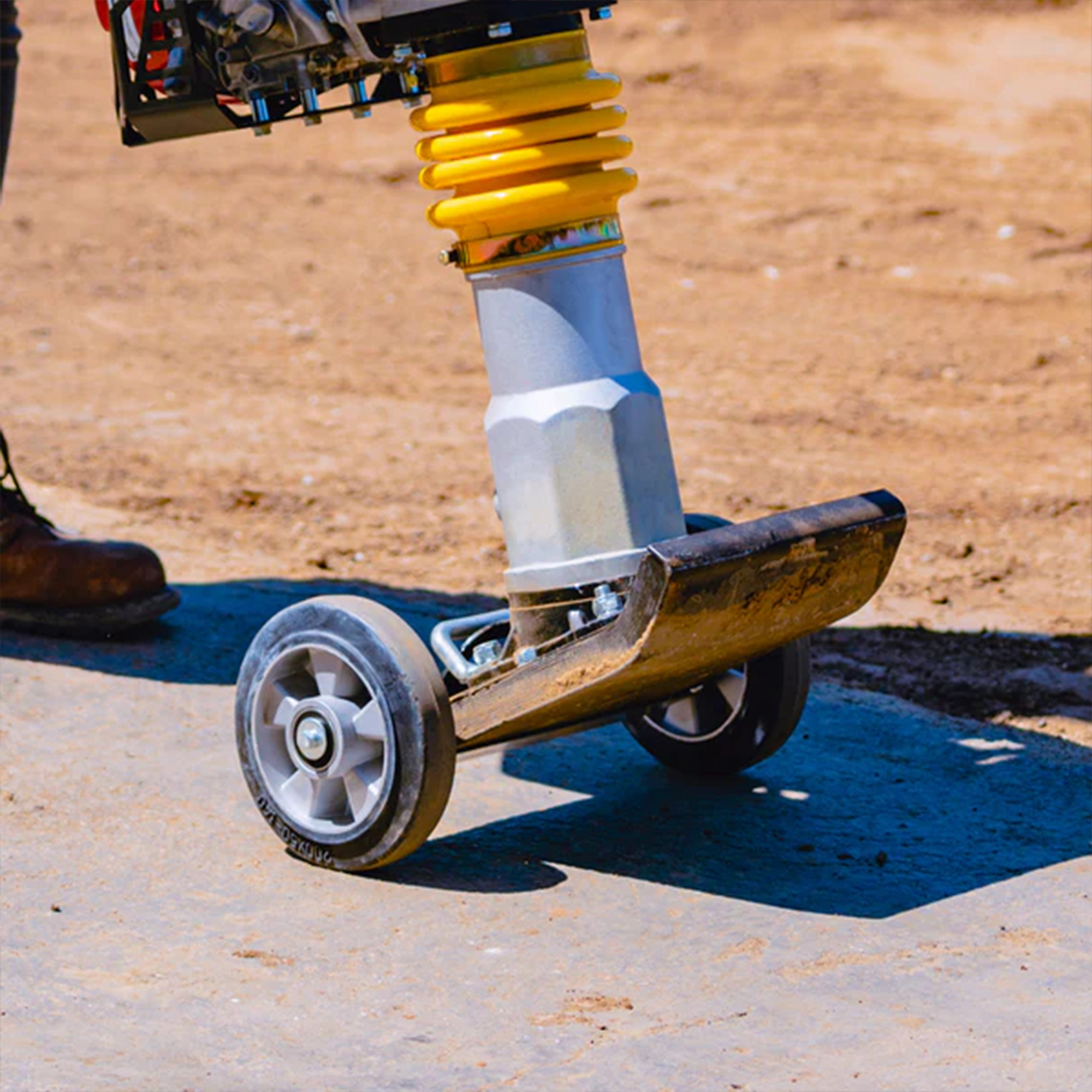

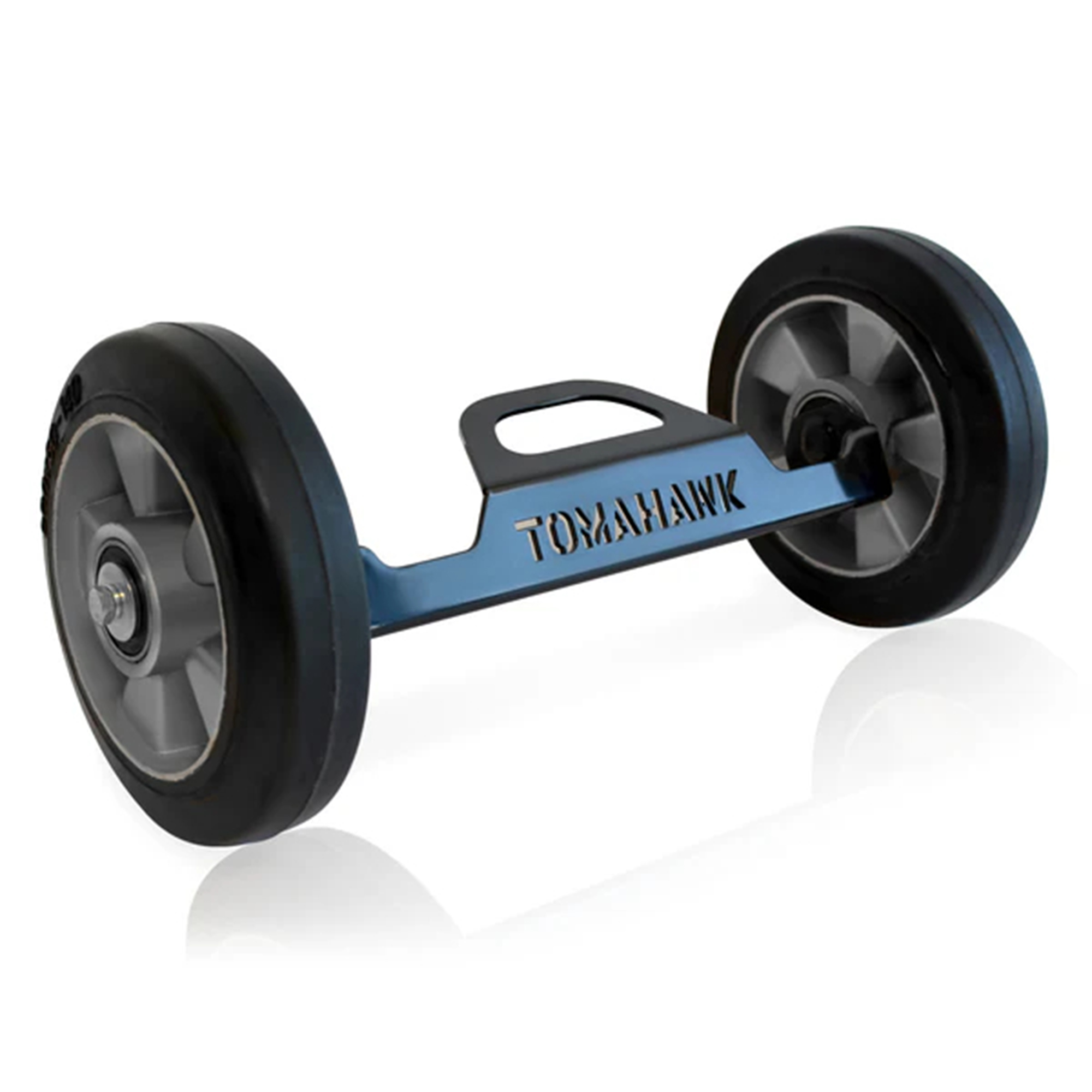

TR68H + WHEELS: Base Model and Wheels

Features:

The Tomahawk - 3.6HP Honda Vibratory Rammer Jumping Jack Tamper with Honda GXR120 Engine Impact Force 3550, is designed to be a top-notch compaction tool with low emissions and noise. It’s perfectly balanced for controlled jumps without losing impact force. The TR68H features a specially designed throttle for smooth operation and a heavy shock mount system. Its 13 in. x 11 in. laminated wood and steel shoe can handle the toughest vibrations on any job site. Lightweight yet powerful, it provides deep compaction and fast performance, delivering an impressive 3,550 lbs. per square foot. It’s built tough, with a protective top frame and engine side cover guard to keep the engine and starter safe. It includes a rust-free plastic oil tank and a long-lasting German-made polyurethane ribbed bellow for added durability. The TR68H is easy to transport thanks to a specially engineered trolley kit, making it an ideal choice for convenience and efficiency.
121cc / 3.6 HP Honda GXR120
Achieve 100% compaction ratings on field density tests and nuclear densometers
Laminated 13 in. x 11 in. wood and steel shoe
Incredible compaction force of 3,550 lbs. per square ft.
Compaction of cohesive and granular soils, up to 26 in.

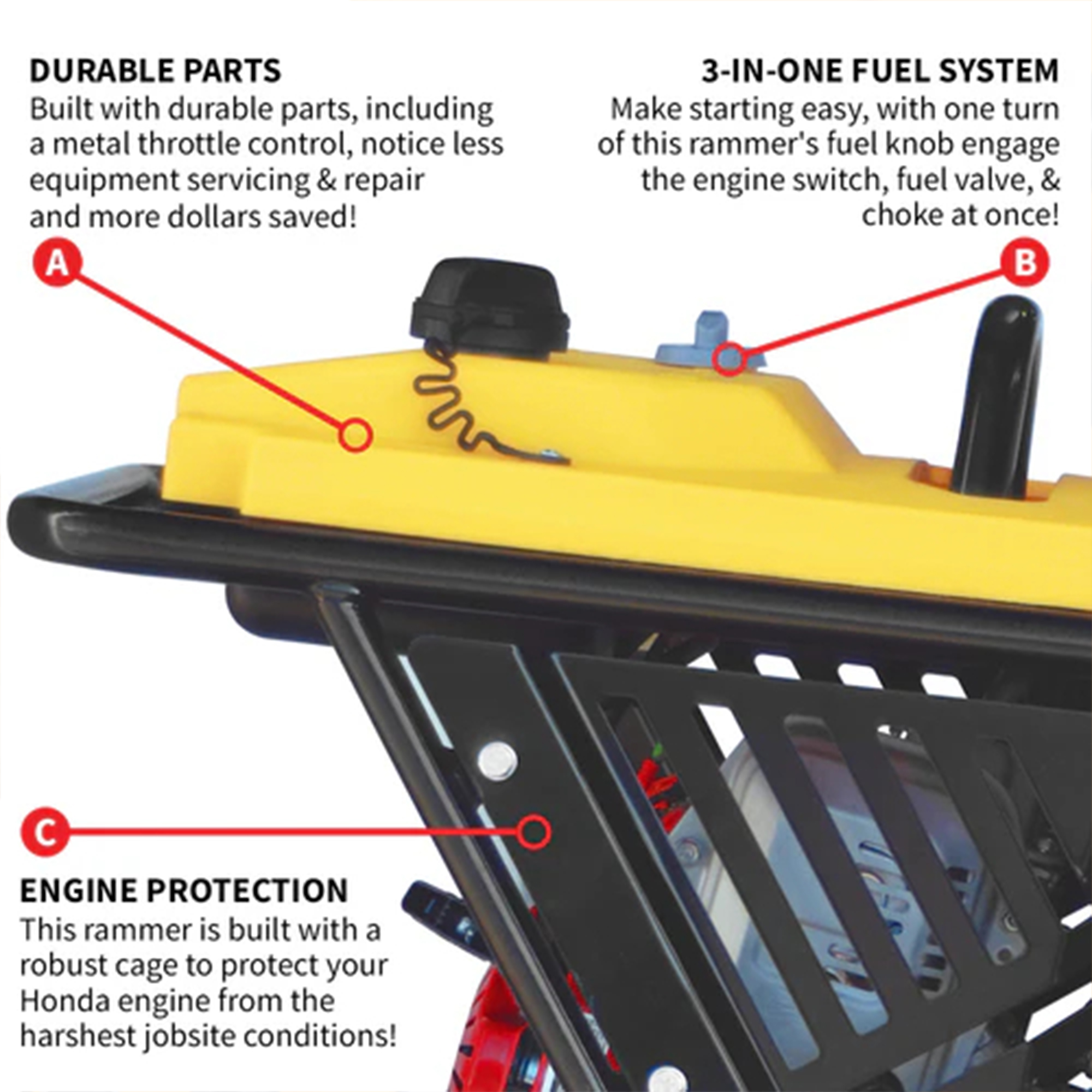

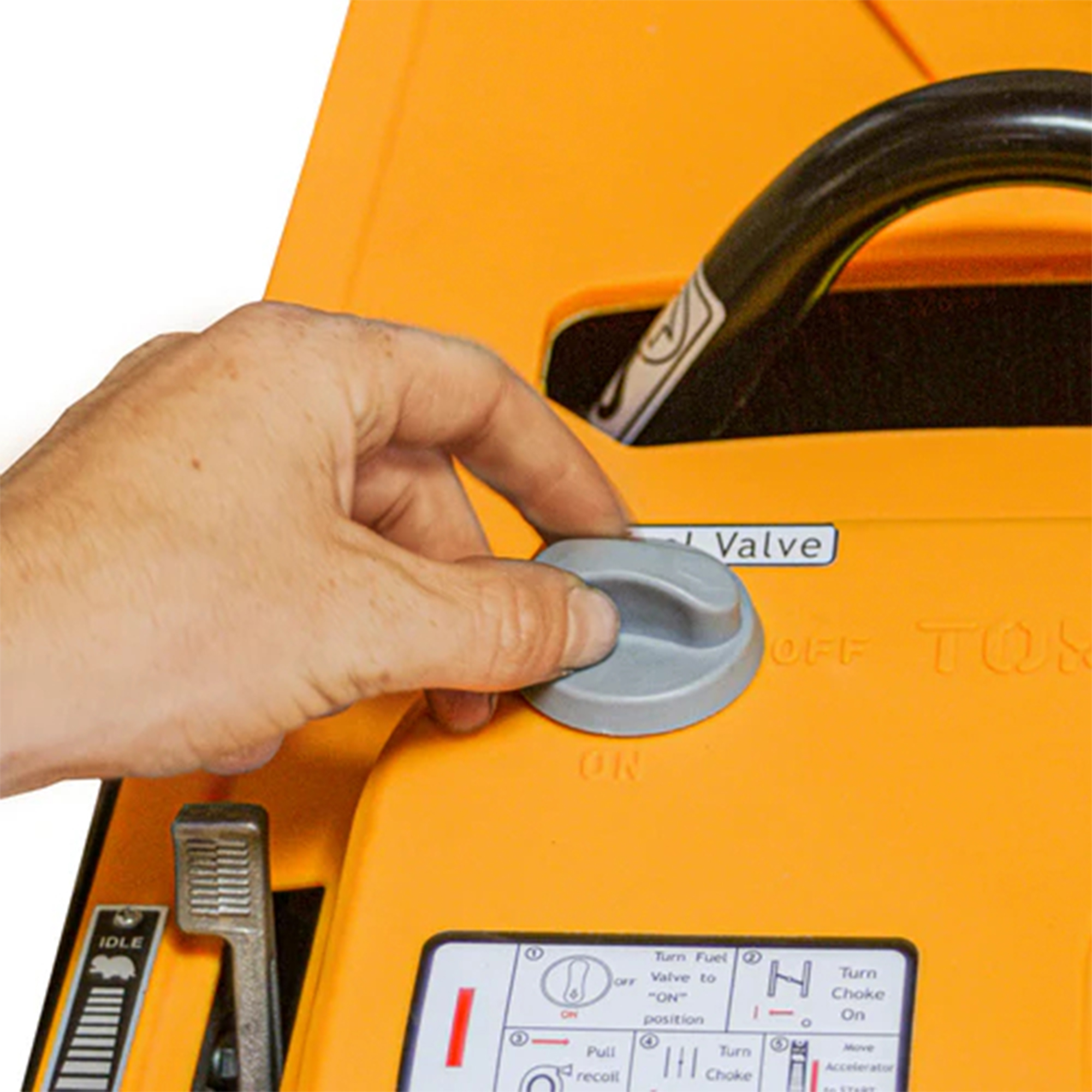

3-in-One Fuel System to easy start-up and longer engine life
Dual Air Filter Design to run longer in the dirtiest conditions

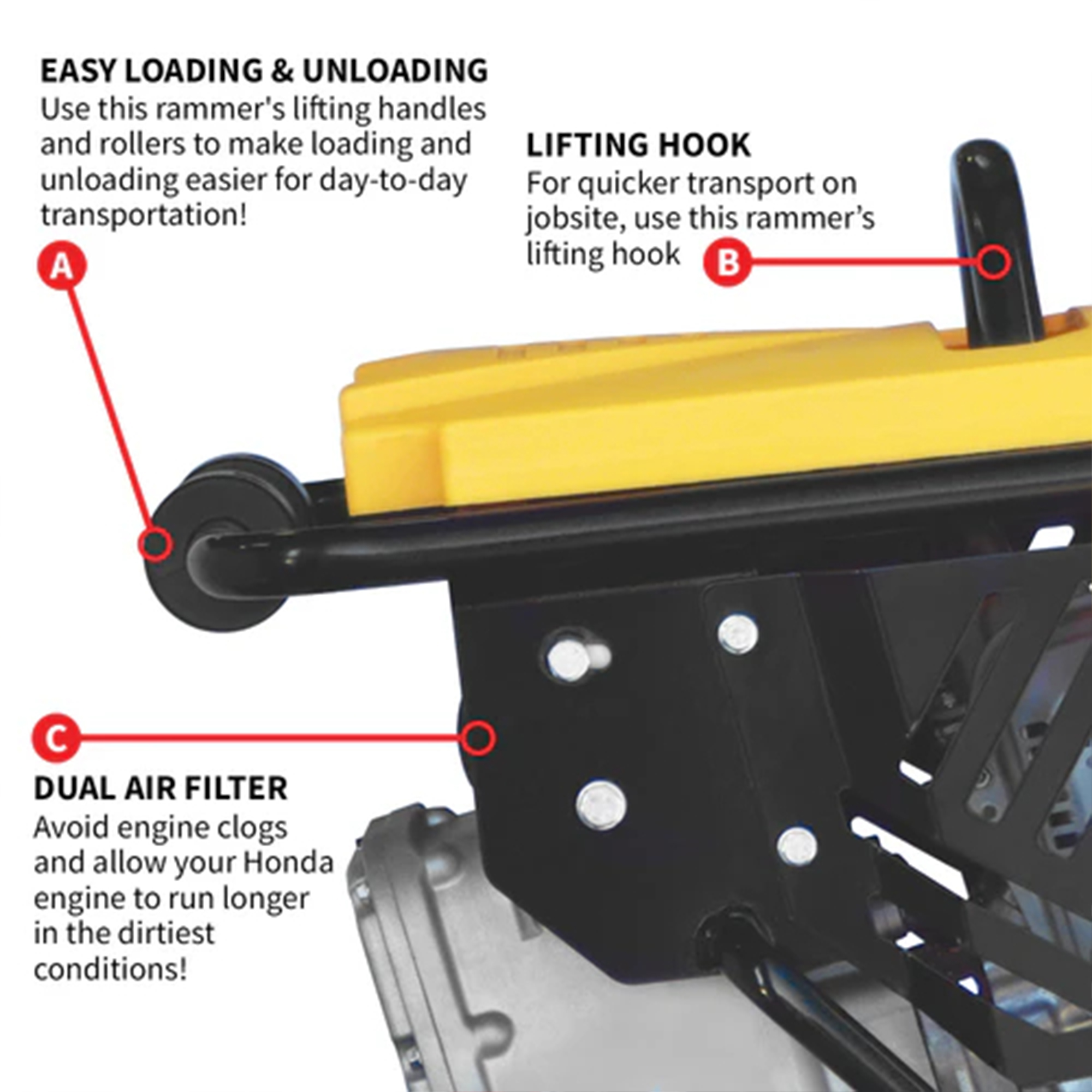

Lifting handles and rollers for easy loading and unloading
German manufactured polyurethane, ribbed bellow extends service life
3 Year Product Warranty & 1 Year Product Warranty
CARB and EPA certified

Specifications:

Engine: Honda GXR120
Power: 3.6 HP
Engine RPM: 4100
Compaction Force: 3,550 lbs/ft
Blows per Minute: Up to 678
Travel Speed: 49.2 ft/min
Jumping Stroke: 1.6 - 3.4 in.
Fuel Type: Gasoline
Fuel Tank: 2.7 qt
Weight: 150 lbs. (68kg)
Shoe Size: 13 x 11 in. (33x27.9cm)

Applications:

Retaining Walls
Footings and Foundation Projects
Landscapes and Hardscapes
Patchwork on Asphalt
Pipeline Applications
Backfill Pools, Parks, Cemeteries, and Golf Courses
Pools, Parks, and Golf Courses
Cohesive Soils and Granular Soils
Sticky soils - such as clay or clayey silt
Gravel, sand, silt, clay, or mixed soils
Base, Subbase, Subgrade, Subsoil

CA Proposition 65 Warning:

⚠ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Info and Guides:

Click Here for Specification Sheet

Click Here for Operations Manual

Click Here for Honda GX120 Operations Manual
