Topcon RL-H5B Laser Kit w/ Tripod & 13' Fiberglass Grade Rod in Inches - 1035256-01

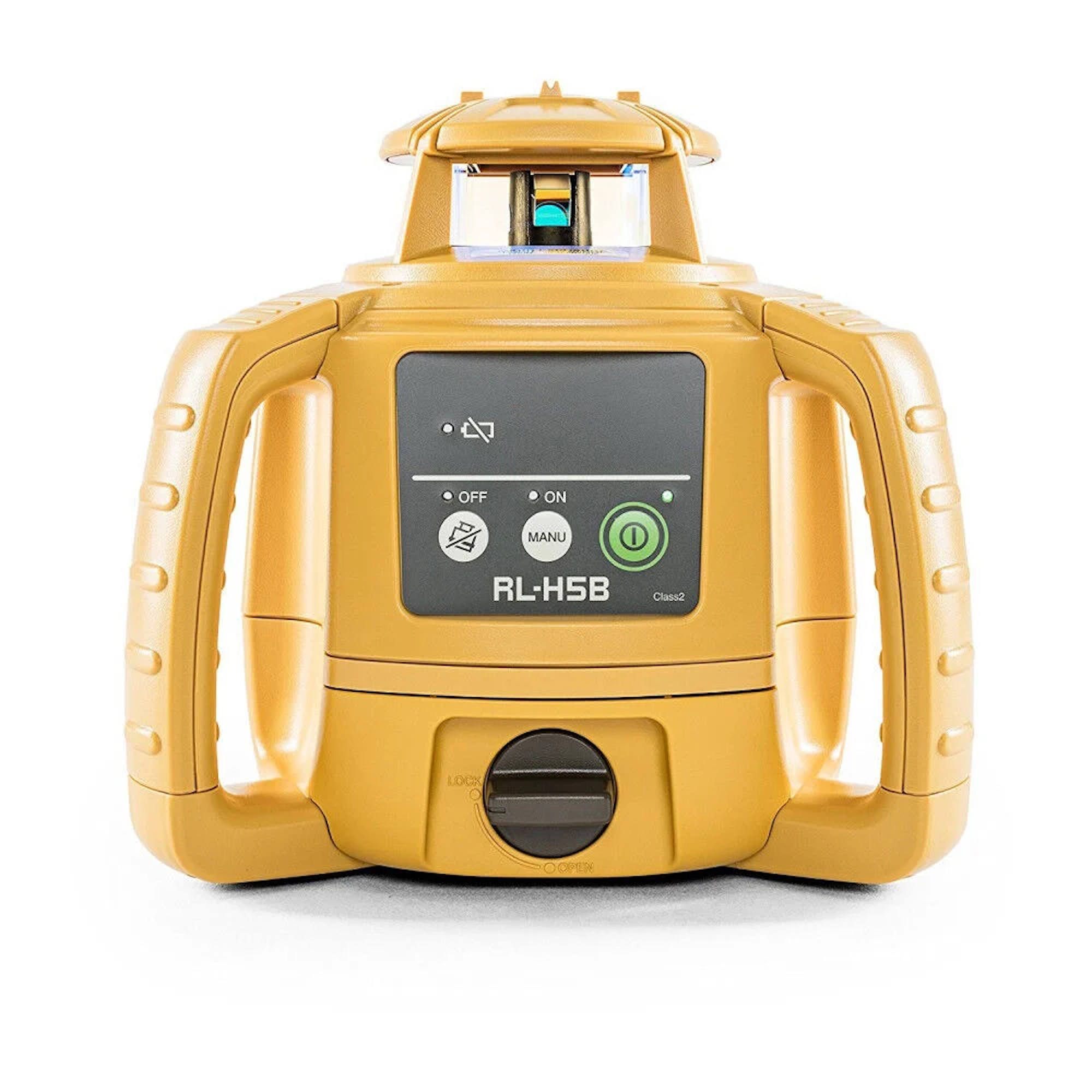

The Topcon RL-H5B DB Horizontal Laser Level is engineered for precision and efficiency, this self-leveling laser level is your go-to solution for accuracy over long distances. With a formidable 1,300 ft diameter range and high horizontal accuracy of 1/8-inch at 100 feet, the RL-H5B ensures your work is always on point.

• Long-range operation: up to 400 m
• Smart long-range receiver
• Rotation Speed: 600 rpm
• ±20 Arc second horizontal accuracy
• ±5 Degrees self-leveling range
• Operating Temperature: -20ºC to 50ºC
• Up to 100 hours battery life
• IP66 rating: can withstand dust, a sudden shower and even torrential rainfall.
• 5 Year Manufacturer's Warranty

The Topcon LS-80L Laser Receiver enhances the range of red beam rotary lasers, features an IP-66 rating for dust and water protection, includes a durable rubber case, offers an LCD display with 11 selectable channels, and operates on AA batteries for up to 120 hours.

• RL-H5B Laser 1021200-73
• LS-80L Sensor
• Sensor Holder

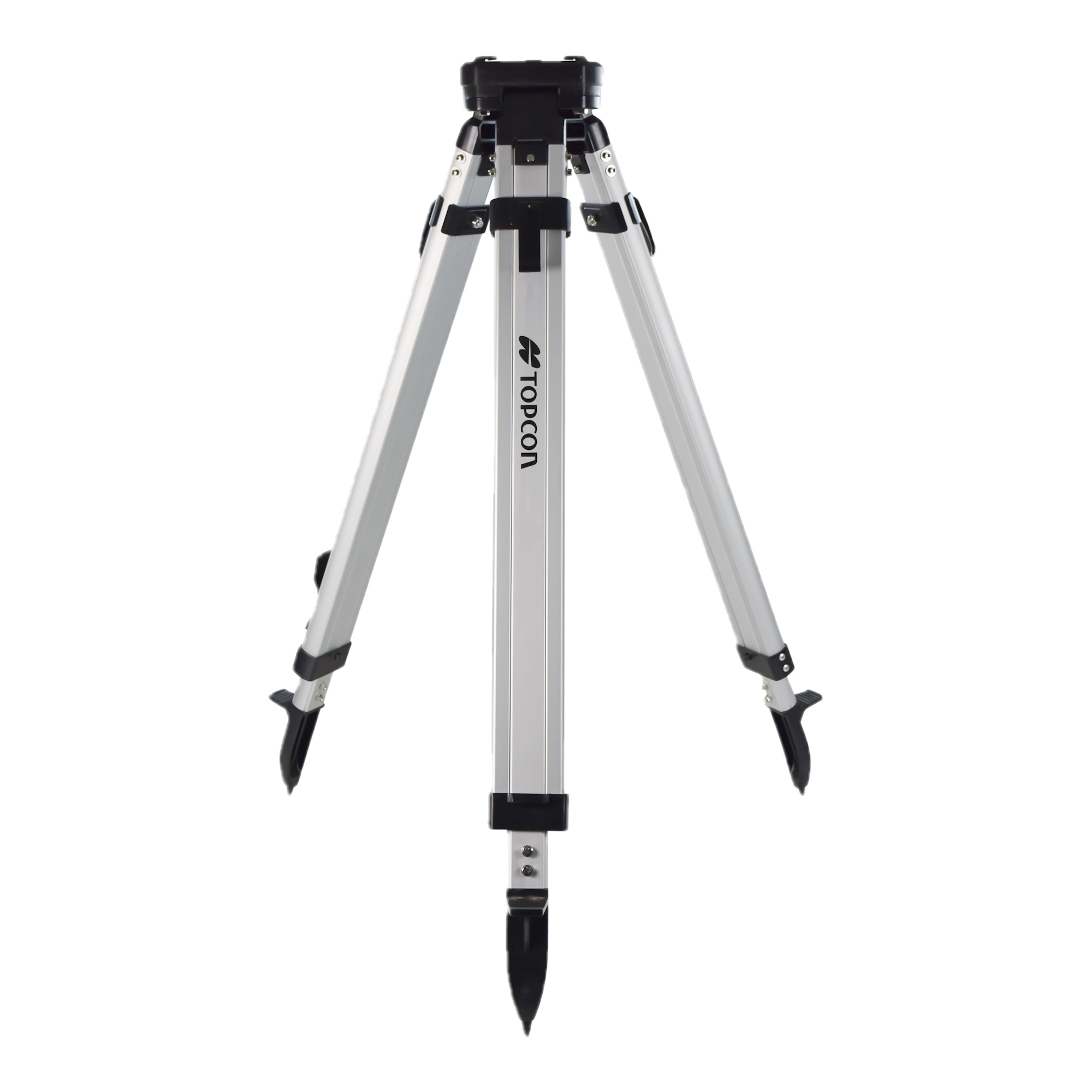

• Tripod

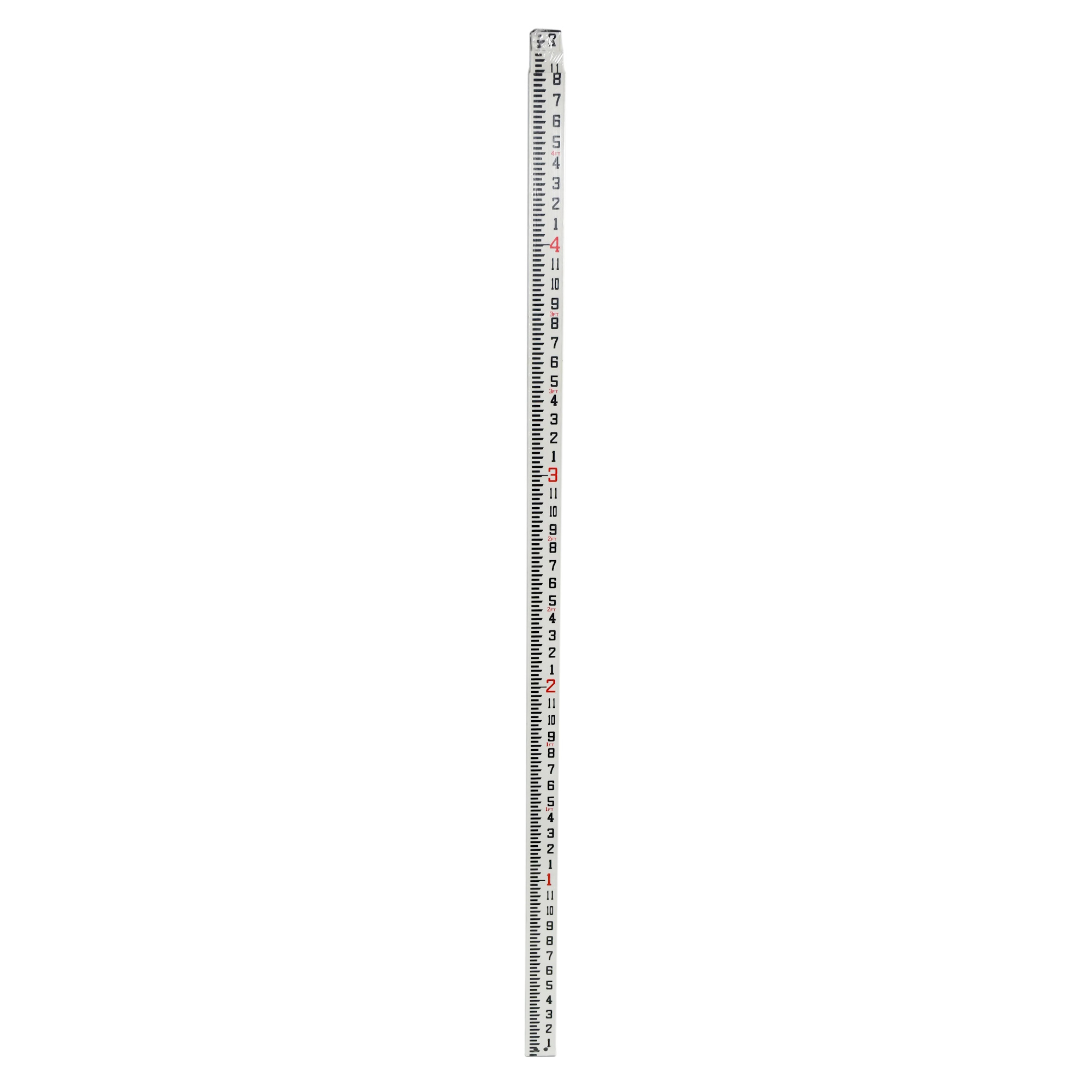

• 13 ft. Fiberglass Grade Rod (Inches)
• Batteries
• Chargers

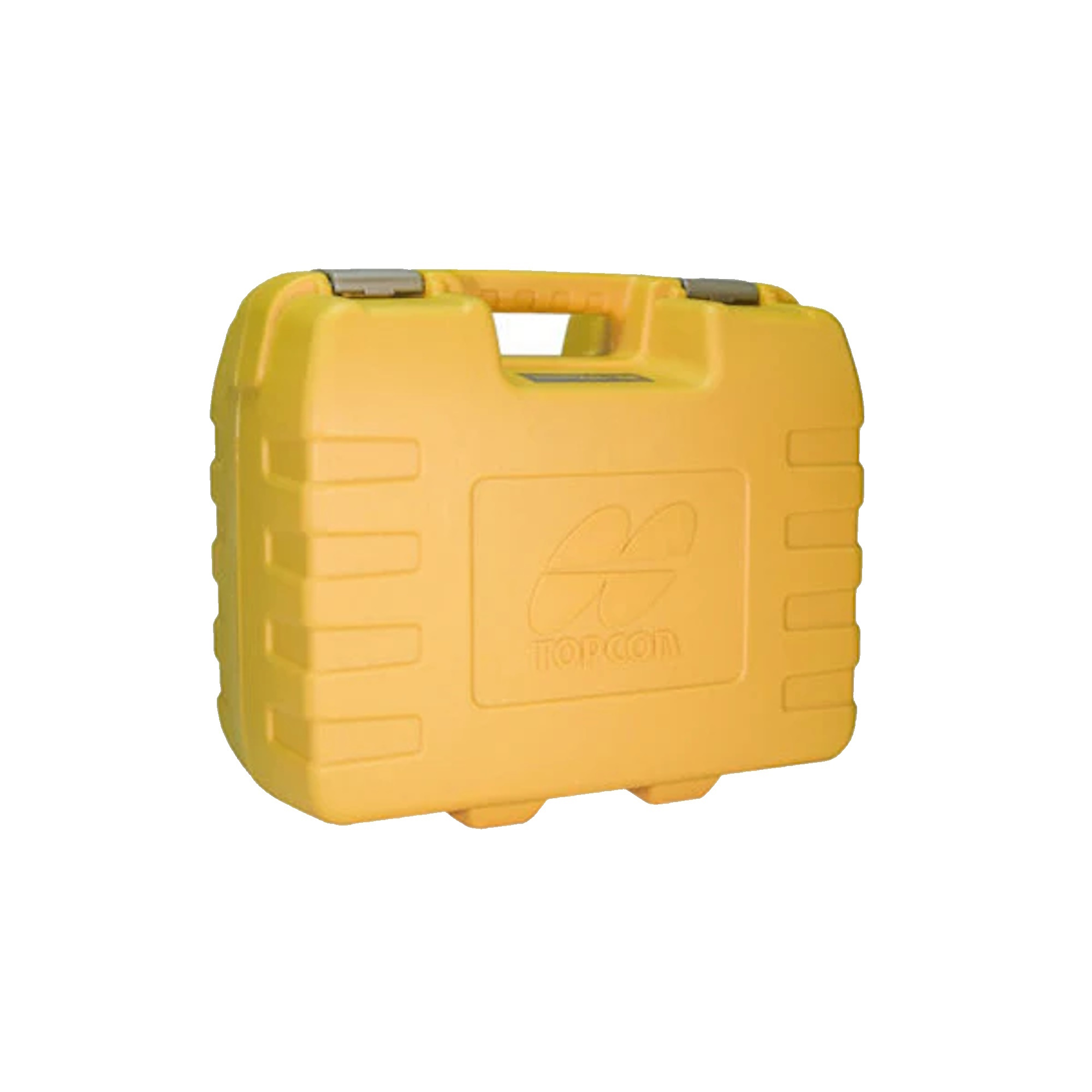

• Carry Case

• Self-leveling range: ±5 degrees
• Accuracy: ±1/8 inch at 100 feet (±1.5 mm at 30 meters)
• Working range (diameter): Up to 2,600 feet (800 meters) with detector
• Rotation speed: 600 RPM
• Battery life: Approximately 100 hours (alkaline batteries)
• Operating temperature range: -4°F to 122°F (-20°C to 50°C)
• Water and dust protection: IP66 rating
• Dimensions: 7.7" x 8.3" x 6.9" (195 x 210 x 175 mm)
• Weight: 5.5 lbs (2.5 kg)
• Laser diode: 635nm (visible)
• Laser class: 3R

• Working Range (diameter): 2,500 feet with the RLHC, RL-SV2S, and RL-200 Series Lasers
• Vertical Detecting Range: 3.5 inch
• LCD Digital Readout Range: 2.7 inch
• Horizontal Detecting Range: ±45º
• Strobe Light Suppression: Yes
• Units / Measurements: mm / cm / inch / fractional inch
• Grade Resolution Settings:
  • ±0.02 inch
  • ±0.05 inch
  • ±0.10 inch
  • ±0.20 inch
  • ±0.50 inch
• LCD Grade Indicators: 9 Channels
• LED Grade Indicators: Orange, Green, Red (On/Off selectable)
• Display: LCD on each side
• Buzzer: Loud / Low / Off selectable
• Bubble Tube: Yes
• Warning Icons: HI Alert, Low Battery (for the RL-4HC, RL-SV2S, and RL-200 Series)
• Battery: One AA/LR6 dry-cell battery
• Operation Time: Up to 45 hours with alkaline batteries
• Battery Level indicator: LCD Icon
• Auto Shut-off: Approximately 30 minutes
• Dust/Water Rating: IP67
• Operating Temperature: -4ºF to 122ºF
• Magnetic Mount: Two Round Magnets on Top
• Receiver Sensor Bracket: Screw mount

NOTE: Due to interstate and international shipping constraints, Topcon products do not include alkaline batteries.
