Topcon RL-HV2S Self-Leveling Dual Grade Laser DB Kit with LS-80X Receiver and Alkaline Batteries

Model Number: 1051612-21

Features:

The Topcon RL-HV2S Self-leveling Dual Grade Laser Kit w/ LS-80X Receiver and Alkaline Batteries is a self-leveling laser kit that can handle flat work, single grade or dual grade applications. The Topcon LS-80X Receiver Sensor included in this kit is a digital device that works with red beam rotary lasers. It is compatible with Bluetooth Laser Manager app that lets you control the laser with your cell phone.

Horizontal, vertical, single, and dual slope applications
Long-range operation (800 m)
Tough IP66 construction rating
Extra-long battery life (up to 120 hours)
Laser class 1

Laser Manager Mobile App:

The Laser Manager is a revolutionary mobile app that streamlines laser operation by bringing many of the most common functions directly to your mobile device. This innovative functionality speeds up laser setup and allows you to adjust the laser beam across all axes. The Laser Manager App is available for free on both the Google Play Store and the Apple App Store.

Setting up position and slope
Setting up rotation speed and different working modes
Self inspection mode – will guide you easily through the calibration process

Includes:

RL-HV2S Dual Grade Laser (Alkaline Batteries)
LS-80X Long Range Laser Receiver Sensor 1046259-01
Receiver Rod Clamp Holder 6 (312890112)
(4) D-Cell Alkaline Batteries (Dry Battery Kit) "NOT INCLUDED"

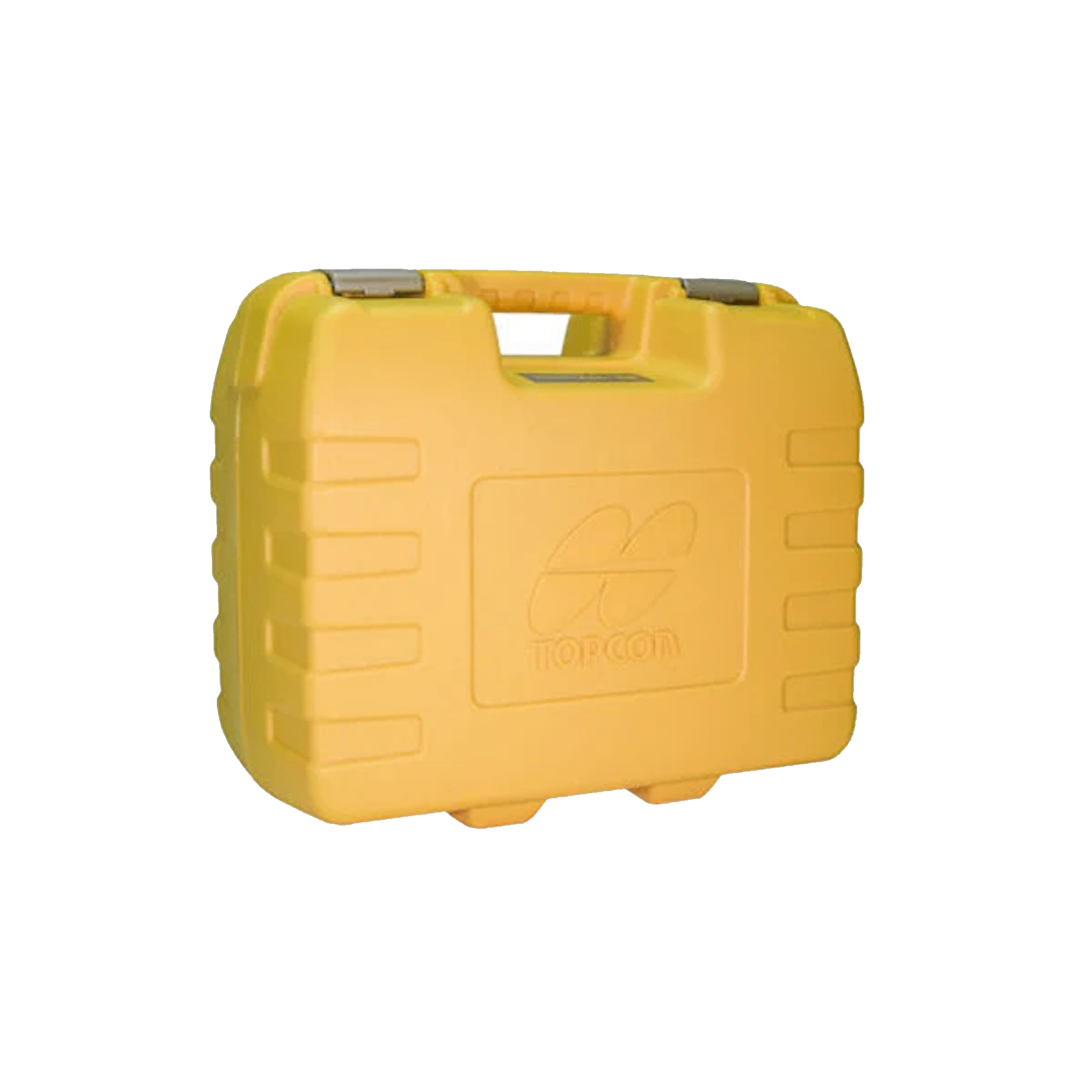

Rugged Hard Shell Carrying Case
5-Year Warranty Guarantee

Specifications:

RL-HV2S Laser Specifications:

Accuracy: 1/16-inch @ 100-feet
Self-Leveling Range: ± 5 degrees
Working Range diameter: 2,600 feet
Rotation Speed: 300, 600 RPM
Light Source: Visible Red Laser 635NM
Laser Class: CDRH(FDA) IIIa IEC Class 3R
Dust / Water Rating: IP66
Operation Time: Alkaline: 100 hours
Operational Temp: -4ºF to 122ºF
Size: 7.0 x 7.7 x 8.5 in
Maximum Power Output: 2.4mW
Tripod Screw Thread: 5/8-11

LS-80X Receiver Specifications:

Working Range (diameter): 2,500 feet with the RL-SV2S, and RL-HV2S Series Lasers
Vertical Detecting Range: 3.5 inch
LCD Digital Readout Range: 2.7 inch
Horizontal Detecting Range: ±45º
Strobe Light Suppression: Yes
Units / Measurements: mm / cm / inch / fractional inch
Grade Resolution Settings:
- ±0.02 inch
- ±0.05 inch
- ±0.10 inch
- ±0.20 inch
- ±0.50 inch
LCD Grade Indicators: 9 Channels
LED Grade Indicators: Orange, Green, Red (On/Off selectable)
Display: LCD on each side
Buzzer: Loud / Low / Off selectable
Bubble Tube: Yes
Warning Icons: HI Alert, Low Battery (for the RL-SV2S, RL-HV2S, and RL-200 Series)
Battery: One AA/LR6 dry-cell battery
Operation Time: Up to 45 hours with alkaline batteries
Battery Level indicator: LCD Icon
Auto Shut-off: Approximately 30 minutes
Dust/Water Rating: IP67
Operating Temperature: -4ºF to 122ºF
Dimensions ( L x W x H ):
- Weight
Magnetic Mount: Two Round Magnets on Top
Receiver Sensor Bracket: Screw mount
